2. MPLS and RSVP

2.1. MPLS

Multiprotocol Label Switching (MPLS) is a label switching technology that provides the ability to set up connection-oriented paths over a connectionless IP network. MPLS facilitates network traffic flow and provides a mechanism to engineer network traffic patterns independently from routing tables. MPLS sets up a specific path for a sequence of packets. The packets are identified by a label inserted into each packet. MPLS is not enabled by default and must be explicitly enabled.

MPLS is independent of any routing protocol but is considered multiprotocol because it works with the Internet Protocol (IP), Asynchronous Transport Mode (ATM), and frame relay network protocols.

2.1.1. MPLS Label Stack

MPLS requires a set of procedures to enhance network layer packets with label stacks which thereby turns them into labeled packets. Routers that support MPLS are known as Label Switching Routers (LSRs). In order to transmit a labeled packet on a particular data link, an LSR must support the encoding technique which, when given a label stack and a network layer packet, produces a labeled packet.

In MPLS, packets can carry not just one label, but a set of labels in a stack. An LSR can swap the label at the top of the stack, pop the stack, or swap the label and push one or more labels into the stack. The processing of a labeled packet is completely independent of the level of hierarchy. The processing is always based on the top label, without regard for the possibility that some number of other labels may have been above it in the past, or that some number of other labels may be below it at present.

As described in RFC 3032, MPLS Label Stack Encoding, the label stack is represented as a sequence of label stack entries. Each label stack entry is represented by 4 octets. Figure 1 displays the label placement in a packet.

Figure 1:  Label Placement
Table 3:  Packet/Label Field Description

Field

Description

Label

This 20-bit field carries the actual value (unstructured) of the label.

Exp

This 3-bit field is reserved for experimental use. It is currently used for Class of Service (CoS).

S

This bit is set to 1 for the last entry (bottom) in the label stack, and 0 for all other label stack entries.

TTL

This 8-bit field is used to encode a TTL value.

A stack can carry several labels, organized in a last in/first out order. The top of the label stack appears first in the packet and the bottom of the stack appears last, as shown in Figure 2.

Figure 2:  Label Packet Placement

The label value at the top of the stack is looked up when a labeled packet is received. A successful lookup reveals:

  1. The next hop where the packet is to be forwarded.
  2. The operation to be performed on the label stack before forwarding.

In addition, the lookup may reveal outgoing data link encapsulation and other information needed to properly forward the packet.

An empty label stack can be thought of as an unlabeled packet. An empty label stack has zero (0) depth. The label at the bottom of the stack is referred to as the Level 1 label. The label above it (if it exists) is the Level 2 label, and so on. The label at the top of the stack is referred to as the Level m label.

Labeled packet processing is independent of the level of hierarchy. Processing is always based on the top label in the stack which includes information about the operations to perform on the packet's label stack.

2.1.1.1. Label Values

Packets traveling along an LSP (see Label Switching Routers) are identified by its label, the 20-bit, unsigned integer. The range is 0 through 1,048,575. Label values 0 to 15 are reserved and are defined below as follows:

  1. A value of 0 represents the IPv4 Explicit NULL label. It indicates that the label stack must be popped, and the packet forwarding must be based on the IPv4 header. SR OS implementation does not support advertising an explicit-null label value, but can properly process in a received packet.
  2. A value of 1 represents the router alert label. This label value is legal anywhere in the label stack except at the bottom. When a received packet contains this label value at the top of the label stack, it is delivered to a local software module for processing. The actual packet forwarding is determined by the label beneath it in the stack. However, if the packet is further forwarded, the router alert label should be pushed back onto the label stack before forwarding. The use of this label is analogous to the use of the router alert option in IP packets. Since this label cannot occur at the bottom of the stack, it is not associated with a particular network layer protocol.
  3. A value of 2 represents the IPv6 explicit NULL label. It indicates that the label stack must be popped, and the packet forwarding must be based on the IPv6 header. SR OS implementation does not support advertising an explicit-null label value, but can properly process in a received packet.
  4. A value of 3 represents the Implicit NULL label. This is a label that a Label Switching Router (LSR) can assign and distribute, but which never actually appears in the encapsulation. When an LSR would otherwise replace the label at the top of the stack with a new label, but the new label is Implicit NULL, the LSR pops the stack instead of doing the replacement. Although this value may never appear in the encapsulation, it needs to be specified in the Label Distribution Protocol (LDP) or RSVP-TE protocol, so a value is reserved.
  5. A value of 7 represents the Entropy Label Indicator (ELI) which precedes in the label stack the actual Entropy Label (EL) which carries the entropy value of the packet.
  6. A value of 13 represents the Generic-ACH Label (GAL), an alert mechanism used to carry OAM payload in MPLS-TP LSP.
  7. Values 5-6, 8-12, and 14-15 are reserved for future use.

The router uses labels for MPLS, RSVP-TE, LDP, BGP Label Unicast, Segment Routing, as well as packet-based services such as VLL and VPLS.

Label values 16 through 1,048,575 are defined as follows:

  1. label values 16 through 31 are reserved for future use
  2. label values 32 through 18,431 are available for static LSP, MPLS-TP LSP, and static service label assignments. The upper bound of this range, which is also the lower bound of the dynamic label range, is configurable such that the user can expand or shrink the static or dynamic label range.
  3. label values 18,432 through 524,287 (1,048,575 in FP4 system profile B) are assigned dynamically by RSVP, LDP, and BGP control planes for both MPLS LSP and service labels.
  4. label values 524,288 through 1,048,575 are not assigned by SR OS in system profiles other than FP4 profile B, and thus no POP or SWAP label operation is possible in that range and for those system profiles. However, a PUSH operation, with a label from the full range 32 through 1,048,575 if signaled by some downstream LSR for LSP or service, is supported.
  5. The user can carve out a range of the dynamic label space dedicated for labels of the following features:
    1. Segment Routing Global Block (SRGB) and usable by Segment Routing in OSPF and ISIS.
    2. Reserved Label Block for applications such as SR policy, MPLS forwarding policy, and the assignment of a static label to the SID of a ISIS or OSPF adjacency and adjacency set.

2.1.1.2. Reserved Label Blocks

Reserved label blocks are used to reserve a set of labels for allocation for various applications. These reserved label blocks are separate from the existing ranges such as the static-labels-range, and are not tied to the bottom of the labels range. For example, a reserved range may be used as a Segment Routing Local Block (SRLB) for local segment identifiers (SIDs). Ranges are reserved from the dynamic label range and up to four reserved label block ranges may be configured on a system.

A reserved label block is configured using the following:

config
   router
      mpls-labels
         reserved-label-block <name>
            start <start-value> end <end-value>
            exit
         no reserved-label-block <name

A range can be configured up to the maximum supported MPLS label value on the system.

2.1.2. MPLS Entropy Label and Hash Label

The router supports both the MPLS entropy label (RFC 6790) and the flow-aware transport label (known as the hash label) (RFC 6391). These labels allows LSR nodes in a network to load-balance labeled packets in a much more granular fashion than allowed by simply hashing on the standard label stack. The labels also remove the need to have an LSR inspect the payload below the label stack to check for an IPv4 or IPv6 header.

The application of a hash label or an entropy label is mutually exclusive for a service.

The hash label is supported on VLL, VPRN, or VPLS services bound to any MPLS type encapsulated SDPs as well as to a VPRN service using auto-bind-tunnel with the resolution-filter set to any MPLS tunnel type. When this feature is enabled, the ingress data path is modified such that the result of the hash on the payload packet header is communicated to the egress data path for use as the value of the label field of the hash label. The egress data path appends the hash label to the bottom of the stack (BoS) and sets the S-bit to 1. The user enables the signaling of the hash-label capability under a VLL spoke sdp, a VPLS spoke sdp or mesh sdp, or an IES/VPRN spoke SDP interface by adding the signal-capability option. When this capability is enabled, the decision to insert the hash label on the user and control plane packets by the local PE is solely determined by the outcome of the signaling process and may override the local PE configuration.

Entropy labels are supported for the following services and protocols:

  1. EVPN VPLS and Epipe
  2. RFC 3107 MP-BGP tunnels
  3. VLLs (including BGP VPWS), IES/VPRN and VPLS spoke SDP termination, but not including Apipes and Cpipes
  4. LDP VPLS and BGP-AD VPLS

The MPLS entropy label provides a similar function to the hash label but is applicable to a wider range of services. The entropy label is appended directly below the tunnel label (which may be above the bottom of the stack). As with the hash label, the value of the entropy label is calculated based on a hash of the packet payload header.

The entropy label is inserted along with an entropy label indicator (ELI). The ELI is a special-purpose MPLS label (Value = 7) that indicates that the entropy label follows in the stack. It is always placed immediately below the tunnel label to which hashing applies.

The ability of a node to receive and process an entropy label for an LSP tunnel is signaled using capability signaling. Entropy labels are supported on RSVP, LDP, segment routed, and BGP tunnels. The entropy label is not supported on P2MP LSPs. Entropy label capability is advertised at the tunnel level by the downstream LSR. This indicates the capability of the node to receive and process the entropy label. This capability can be advertised for an LDP, RSVP, or BGP FEC. Capability signaling is not supported for BGP tunnels, as no agreed standard for this exists in the IETF. The router therefore supports manual configuration of an override of entropy label capability for a BGP tunnel at the ingress LER. An LSR for RSVP and LDP tunnels passes the entropy label capability from the downstream LSP segment to upstream peers. However, earlier releases that do not support entropy label functionality do not pass the entropy label capability to their peers.

The insertion of an entropy label by the upstream LER on a tunnel for which entropy label capability is known is configured on a per-service or per-protocol basis. It is only inserted if the downstream peer actually signals entropy label support (or the entropy label capability is overridden in the case of a BGP or segment routing ingress LER). The router only inserts a single entropy label even if multiple LSP labels exist in a label stack. The entropy label and its ELI are inserted immediately below the innermost tunnel label for which the downstream peer LER is known to be entropy-label-capable. This ensures that the entropy label is preserved as far as possible along a path through the network.

The router supports the Entropy Label for the following services/protocols:

  1. VPRN
  1. EVPN VPLS and Epipe
  1. RFC 3107 MP-BGP tunnels
  1. RSVP and LDP LSPs used as shortcuts for static, IGP and BGP route resolution
  1. VLLs, including BGP VPWS, IES/VPRN and VPLS spoke SDP termination, but not including Apipe and Cpipe
  1. LDP VPLS and BGP-AD VPLS

Entropy label insertion is configured using the entropy-label command under the service or spoke SDP context. This command and the hash-label command are mutually exclusive.

The entropy label and ELI are not supported on pseudowire ports. That is, although the LSP used by a pseudowire port may signal entropy label capability (because other services may use the same LSP), the entropy label/ELI is not inserted on packets from a pseudowire SAP using a pseudowire port.

If entropy label insertion is configured for a VPLS or VLL service, the MTU of the SDP binding is automatically reduced to account for the overhead of the two labels (entropy label and ELI). This happens whether or not the LSP tunnel used by the service is entropy-label-capable.

The entropy label requires the insertion of two additional labels in the label stack. In some cases, this may result in an unsupported label stack depth or large changes in the label stack depth during the lifetime of an LSP (for example, due to switching from a primary path with entropy label capability enabled to a secondary path for which the far end has not signaled entropy label capability). The entropy-label command under the config>router>mpls and config>router>mpls>lsp contexts provides local control at the head-end of an LSP over whether the entropy label is inserted on an LSP by overriding the entropy label capability signaled from the far-end LER, and control over how the additional label stack depth is accounted for. This allows a user to avoid entropy label insertion where there is a risk of the label stack depth becoming too great.

2.1.2.1. Entropy Label Capability for BGP Labeled Routes

Entropy label capability signaling is not supported for BGP. The system supports a configurable override on the assumed EL capability of BGP peers.

config
   router
      bgp
         no override-tunnel-elc

When enabled, the system assumes that all far-end nodes for BGP tunnels are entropy-label capable, regardless of any received capability signaling. This is a system-wide configuration, as efficient entropy label operation requires that all LSRs in a network support EL. This command should be used with care, particularly in inter-AS use cases, as EL capability may differ between domains.

2.1.2.2. Entropy Label for Segment Routed Tunnels

The entropy label is supported for SR-ISIS and SR-OSPF shortest path and SR-TE tunnels.

2.1.2.3. Inserting and Processing the Entropy Label

2.1.2.3.1. Ingress LER

The procedures at the ingress LER are as specified in Section 4.2 of RFC 6790. In general, the router inserts an entropy label in a packet if the downstream node for the LSP tunnel has signaled support for entropy labels, the entropy label is configured for the service that the packet belongs to, and the entropy label is not disabled for an RSVP LSP.

RFC 6790 suggests that the ingress LER may insert several entropy labels in the label stack where the LSP hierarchy exists, one for each LSP in the hierarchy. However, this could result in unreasonably large label stacks. Therefore, when there are multiple LSPs in a hierarchy (for example, LDP over RSVP), the router only inserts a single entropy label/ELI pair under the innermost LSP label closest to the service payload that has advertised entropy label capability.

The router does not insert an entropy label in a packet belonging to a service for which the hash label has been configured, even if the far end for the LSP tunnel has advertised entropy label capability. The system instead inserts a hash label, as specified by the hash label feature.

The router inserts an entropy label on a tunnel that is ELC (if the far-end node has signaled entropy label capability for LDP or RSVP, or if the entropy label capability override is configured for BGP tunnels) when required by the service (as determined by the entropy-label command), even if an implicit or explicit NULL label has been signaled by the downstream LSR or LER. This ensures consistent behavior as well as ensuring that entropy as determined by the ingress LER is maintained where a tunnel with an implicit NULL label is stitched at a downstream LSR.

2.1.2.3.2. LSR

If an LSR is configured for load balancing, and an entropy label is found in the label stack, the LSR takes the entropy label into account in the hashing algorithm as follows:

  1. label-only: Only use the entropy label as input to the hash routine. Ignore the rest of the label stack.
  2. label-ip: Only use the entropy label and the IP packet as input to the hash routine. Ignore the rest of the label stack.

The presence of an entropy label is ignored if IP-only load balancing is configured.

If PHP has been requested by a next-hop LER, the LSR retains any entropy label found immediately below the tunnel label that is to be popped. The system retains and uses the entropy label information as input to the local hash routine if an applicable LSR load-balancing mode has been configured.

2.1.2.4. Egress LER

If an entropy label is detected in the label stack at an egress LER for a tunnel where the tunnel label that the entropy label is associated with is popped, then the entropy label is also popped and the packet processed as normal. This occurs whether or not the system has signaled entropy-label-capability.

If an ELI is popped that has the BoS bit set, then the system should discard the packet and raise a trap as per Section 4.1 of RFC 6790.

2.1.2.5. Mapping Entropy Label and Entropy Label Capability at LSP Stitching Points

An entropy label and ELI is not exposed when a tunnel label is swapped at an LSR acting as an LSP stitching point. The entropy label and ELI is therefore forwarded as any other packet on the LSP.

A router acting as a stitching point between two LSPs maps the entropy label capability received in signaling for a downstream segment to the upstream segment for the level in the LSP hierarchy being stitched.

If override-tunnel-elc is configured for a downstream BGP segment, then the system signals entropy label capability upstream on all RSVP LSP segments that are stitched to a downstream BGP tunnel segment. This must be configured correctly; otherwise packets with an entropy label are discarded by a downstream LER that is not entropy-label-capable.

The mapping of entropy label capability across LDP-BGP stitching points is not supported. If a downstream tunnel endpoint signals entropy label capability, this is not propagated to the ingress LER. The entropy label/ELI should not be inserted on these LSPs by the ingress LER.

2.1.2.6. Entropy Label on OAM Packets

Service OAM packets or within the context of a shortcut, for example, ICMP Ping/traceroute packet, also include an entropy label/ELI if ELC is signaled for the corresponding tunnel and entropy-label is enabled for the service. The entropy label/ELI is inserted at the same level in the label stack as it is in user data packets; which is under the innermost LSP label closest to the service payload that has advertised entropy label capability. The entropy label/ELI therefore always reside at a different levels in the label stack from special-purpose labels related to the service payload; for example, the Router Alert label.

OAM packets at the LSP level, such as LSP ping and LSP trace, do not have the entropy label/ELI inserted.

2.1.3. Label Switching Routers

LSRs perform the label switching function. LSRs perform different functions based on it’s position in an LSP. Routers in an LSP do one of the following:

  1. The router at the beginning of an LSP is the ingress label edge router (ILER). The ingress router can encapsulate packets with an MPLS header and forward it to the next router along the path. An LSP can only have one ingress router.
  2. A Label Switching Router (LSR) can be any intermediate router in the LSP between the ingress and egress routers. An LSR swaps the incoming label with the outgoing MPLS label and forwards the MPLS packets it receives to the next router in the MPLS path (LSP). An LSP can have 0 to 253 transit routers.
  3. The router at the end of an LSP is the egress label edge router (eLER). The egress router strips the MPLS encapsulation which changes it from an MPLS packet to a data packet, and then forwards the packet to its final destination using information in the forwarding table. Each LSP can have only one egress router. The ingress and egress routers in an LSP cannot be the same router.

A router in your network can act as an ingress, egress, or transit router for one or more LSPs, depending on your network design.

An LSP is confined to one IGP area for LSPs using constrained-path. They cannot cross an autonomous system (AS) boundary.

Static LSPs can cross AS boundaries. The intermediate hops are manually configured so the LSP has no dependence on the IGP topology or a local forwarding table.

2.1.3.1. LSP Types

The following are LSP types:

  1. Static LSPs — A static LSP specifies a static path. All routers that the LSP traverses must be configured manually with labels. No signaling such as RSVP or LDP is required.
  2. Signaled LSP — LSPs are set up using a signaling protocol such as RSVP-TE or LDP. The signaling protocol allows labels to be assigned from an ingress router to the egress router. Signaling is triggered by the ingress routers. Configuration is required only on the ingress router and is not required on intermediate routers. Signaling also facilitates path selection.
    There are two signaled LSP types:
    1. Explicit-path LSPs — MPLS uses RSVP-TE to set up explicit path LSPs. The hops within the LSP are configured manually. The intermediate hops must be configured as either strict or loose meaning that the LSP must take either a direct path from the previous hop router to this router (strict) or can traverse through other routers (loose). You can control how the path is set up. They are similar to static LSPs but require less configuration. See RSVP.
    2. Constrained-path LSPs — The intermediate hops of the LSP are dynamically assigned. A constrained path LSP relies on the Constrained Shortest Path First (CSPF) routing algorithm to find a path which satisfies the constraints for the LSP. In turn, CSPF relies on the topology database provided by the extended IGP such as OSPF or IS-IS.
      Once the path is found by CSPF, RSVP uses the path to request the LSP set up. CSPF calculates the shortest path based on the constraints provided such as bandwidth, class of service, and specified hops.

If fast reroute is configured, the ingress router signals the routers downstream. Each downstream router sets up a detour for the LSP. If a downstream router does not support fast reroute, the request is ignored and the router continues to support the LSP. This can cause some of the detours to fail, but otherwise the LSP is not impacted.

No bandwidth is reserved for the rerouted path. If the user enters a value in the bandwidth parameter in the config>router>mpls>lsp>fast-reroute context, it has no effect on the LSP backup LSP establishment.

Hop-limit parameters specifies the maximum number of hops that an LSP can traverse, including the ingress and egress routers. An LSP is not set up if the hop limit is exceeded. The hop count is set to 255 by default for the primary and secondary paths. It is set to 16 by default for a bypass or detour LSP path.

2.1.4. Bidirectional Forwarding Detection for MPLS LSPs

BFD for MPLS LSPs monitors the LSP between its LERs, irrespective of how many LSRs the LSP may traverse. Therefore, it enables faults that are local to individual LSPs to be detected, whether or not they also affect forwarding for other LSPs or IP packet flows. This makes BFD for MPLS LSPs ideal for monitoring LSPs carrying specific high-value services, where detecting forwarding failures in the minimal amount of time is critical. The system raises an SNMP trap, as well as indicates the BFD session state in show and tools dump commands if an LSP BFD session goes down.

The system supports LSP BFD on RSVP LSPs. See Label Distribution Protocol for information about using LSP BFD on LDP LSPs. BFD packets are encapsulated in an MPLS label stack corresponding to the FEC that the BFD session is associated with, as described in Section 7 of RFC5884.

Since RSVP LSPs are unidirectional, a routed return path is used for the BFD control packets from the egress LER towards the ingress LER.

2.1.4.1. Bootstrapping and Maintaining the BFD Session

A BFD session on an LSP is bootstrapped using LSP ping. LSP ping is used to exchange the local and remote discriminator values to use for the BFD session for a particular MPLS LSP or FEC.

SR OS supports the sending of periodic LSP ping messages on an LSP for which LSP BFD has been configured, as specified in RFC 5884. The ping messages are sent, along with the bootstrap TLV, at a configurable interval for LSPs on which bfd-enable has been configured. The default interval is 60 s, with a maximum interval of 300 s. The LSP ping echo request message uses the system IP address as the default source address. An alternative source address consisting of any routable address that is local to the node may be configured, and is used if the local system IP address is not routable from the far-end node.

Note:

SR OS does not take any action if a remote system fails to respond to a periodic LSP ping message. However, when the show>test-oam>lsp-bfd command is executed, it displays a return code of zero and a replying node address of 0.0.0.0 if the periodic LSP ping times out.

The periodic LSP ping interval is configured using the config>router>mpls>lsp>bfd>lsp-ping-interval seconds command.

The no lsp-ping-interval command reverts to the default of 60 s.

LSP BFD sessions are recreated after a high-availability switchover between active and standby CPMs. However, some disruption may occur to LSP ping due to LSP BFD.

At the head end of an LSP, sessions are bootstrapped if the local and remote discriminators are not known. The sessions experience jitter at 0 to 25% of a retry time of 5 s. The following current information is lost from an active show test-oam lsp-bfd display:

  1. Replying Node
  2. Latest Return Code
  3. Latest Return SubCode
  4. Bootstrap Retry Count
  5. Tx Lsp Ping Requests
  6. Rx Lsp Ping Replies

If the local and remote discriminators are known, the system immediately begins generating periodic LSP pings. The pings experience jitter at 0 to 25% of the lsp-ping-interval time of 60 to 300 s. The lsp-ping-interval time is synchronized across by LSP BFD. The following current information is lost from an active show test-oam lsp-bfd display:

  1. Replying Node
  2. Latest Return Code
  3. Latest Return SubCode
  4. Bootstrap Retry Count
  5. Tx Lsp Ping Requests
  6. Rx Lsp Ping Replies

At the tail end of an LSP, sessions are recreated on the standby CPM following a switchover. The following current information is lost from an active tools dump test-oam lsp-bfd tail display:

  1. handle
  2. seqNum
  3. rc
  4. rsc

Any new, incoming bootstrap requests are dropped until LSP BFD has become active. When LSP BFD has finished becoming active, new bootstrap requests are considered.

2.1.4.2. LSP BFD Configuration

There are four steps to configuring LSP BFD:

  1. Configure BFD Template
  2. Enable LSP BFD on the tail node or configure the maximum number of LSP BFD sessions at the tail node.
  3. Apply BFD Template to the LSP or LSP Path.
  4. Enable BFD on the LSP or LSP Path.

LSP BFD uses BFD templates to set generic BFD session parameters.

The BFD template is configured as follows:

config
   router
      bfd
         bfd-template name
            transmit-interval transmit-interval
            receive-interval receive-interval
            echo-receive echo-interval
            multiplier multiplier
            type cpm-np
            exit

Network processor BFD is not supported for LSPs. Furthermore, the minimum supported receive or transmit timer interval is 1 second. Therefore, an error is generated if a user tries to bind a bfd-template with the ‘type cpm-np’ command or any unsupported transmit or receive interval value to an LSP. An error is generated as user attempts to commit changes to a BFD template that is already bound to an LSP where the new values are invalid for lsp-bfd.

BFD templates may be used by different BFD applications (for example, LSPs or pseudowires). If the BFD timer values are changed in a template, the BFD sessions on LSPs or spoke-SDPs to which that template is bound tries to renegotiate their timers to the new values.

The bfd-template uses a begin-commit model. To edit any value within the BFD template, a <begin> needs to be executed before the template context has been entered. However, a value is stored temporarily in the template-module until the commit is issued. Values are actually used once the commit is issued.

2.1.4.3. Enabling and Implementing Limits for LSP BFD on a Node

The config>router>lsp-bfd command enables support for LSP BFD and allows an upper limit to the number of supported sessions at the tail end node for LSPs, where it is disabled by default. This is useful because BFD resources are shared among applications using BFD, so a user may wish to set an upper limit to ensure that a certain number of BFD sessions are reserved for other applications. This is important at the tail end of LSPs where no per-LSP configuration context exists.

LSP BFD is enabled or disabled on a node-wide basis using the bfd-sessions max-limit command under the config>router>lsp-bfd context. This command also enables the maximum number of LSP BFD sessions that can be established at the tail end of LSPs to be limited.

The default is disabled. The max-limit parameter specifies the maximum number of LSP BFD sessions that the system allows to be established at the tail end of LSPs.

2.1.4.4. BFD Configuration on RSVP-TE LSPs

LSP BFD is applicable to configured RSVP LSPs as well as mesh-p2p and one-hop-p2p auto-LSPs.

It is configured on an RSVP-TE LSP, or on the primary path of an RSVP-TE LSP, under a new bfd context at the LSP head end.

A BFD template must always be configured first. BFD is then enabled using the bfd-enable command.

config
   router
      mpls
         lsp xyz
            bfd
               [no] bfd-template name
               [no] bfd-enable
               exit

When BFD is configured at the LSP level, BFD packets follow the currently active path of the LSP.

The bfd-template provides the control packet timer values for the BFD session to use at the LSP head end. Since there is no LSP configuration at the tail end of an RSVP LSP, the BFD state machine at the tail end initially uses system-wide default parameters (the timer values are: min-tx: 1sec, min-rx: 1sec). The head end then attempts to adjust the control packet timer values when it transitions to the INIT state.

BFD is configured at the primary path level, as follows:

config
   router
      mpls
         lsp <xyz>
            primary path-name
               bfd
                  [no] bfd-template name
                  [no] bfd-enable
                   exit

It is not possible to configure LSP BFD on a secondary path or on P2MP LSPs.

LSP BFD at the LSP level and the path level is mutually exclusive. That is, if LSP BFD is already configured for the LSP then its configuration for the path is blocked. Likewise it cannot be configured on the LSP if it is already configured at the path level.

LSP BFD is supported on auto-LSPs. In this case, LSP BFD is configured on mesh-p2p and one-hop-p2p auto-LSPs using the LSP template, as follows:

Config
   router
      mpls
         lsp-template template-name {mesh-p2p | one-hop-p2p}
            bfd
               [no] bfd-template name
               [no] bfd-enable
               exit

2.1.4.5. Determining LSP Availability from LSP BFD

SR OS can determine the operational state of an LSP from the LSP BFD session, allowing users of the LSP to determine whether their transport is operational.

Using the failure-action command, you can configure the action taken by the system if BFD fails for an RSVP LSP or LDP prefix list. When failure-action down is configured, then the LSP is marked as unusable in TTM when BFD on the LSP goes down. This is applicable to RSVP and LDP LSPs. When failure-action failover is configured, and LSP BFD goes down on the currently active path, then the LSP switches from the primary path to the secondary path, or from the currently active secondary path to the next best preference secondary path (if the currently active path was a secondary).

In either case, an SNMP trap is raised indicating that BFD has gone down on the LSP.

Note:

It is recommended that BFD control packet timers are configured to a value that is large enough to allow for transient data path disruptions that may occur when the underlying transport network recovers following a failure.

2.1.4.5.1. Failure-action down

The failure-action down command is supported for point-to-point RSVP (including mesh point-to-point and one-hop point-to-point auto-LSPs) and LDP LSPs. This command is configured within the config>router>mpls>lsp>bfd, config>router>mpls>lsp-template>bfd, or config>router>ldp>lsp-bfd contexts. For RSVP LSPs, it is only supported at the LSP level and not at the primary or secondary path levels. When configured, an LSP is made unavailable as a transport if BFD on the LSP goes down.

If BFD is disabled, MPLS installs the LSP as “usable” in the TTM. The failure-action configuration is ignored.

If BFD is enabled and no failure-action is configured, MPLS installs the LSP as “usable” in the TTM regardless of the BFD session state. BFD generates BFD Up and BFD Down traps.

If BFD is enabled and failure-action down is configured:

  1. BFD traps are still generated when the BFD state machine transitions.
  2. If the BFD session is up for the active path of the LSP, the LSP is installed as “usable” in the TTM. If the BFD session is down for the active path, the LSP is installed as “not-usable” in the TTM.
  3. When an LSP is first activated using the no shutdown command, and its LSP BFD session first starts to come up, the LSP is installed as “not-usable” in the TTM to any user until the BFD session transitions to the up state, despite the FEC for the corresponding LSP being installed by the TTM. Users include all protocols, including those in RTM. A tunnel that is marked as down in the TTM is not available to RTM, and all routes using it are withdrawn. SDP auto-bind does not make use of an LSP until it is installed as “usable”.
  4. If the BFD session is up on the active path and the LSP is installed as “usable” in the TTM, and if the LSP switches from its current active path to a new path, the system triggers a new BFD bootstrap using LSP ping for the new path, and waits for a maximum of 10 s for the BFD session to come up on the new path before switching traffic to it. If the BFD session does not come up on the new path after 10 s, the system switches to the new path anyway and install the LSP as “not-usable” in the TTM. This is the only scenario where a switch of the active path can be delayed due to BFD transition state.
  5. If the BFD session is down on the active path and the LSP was already installed as “not-usable” in the TTM, then the system immediately switches to the new path without waiting for BFD to become operationally up.
  6. If BFD is disabled, MPLS installs the LSP as “usable” in the TTM. The failure-action configuration is ignored. LSP ping and LSP trace are still able to test an LSP when BFD is disabled.
Note:

BFD session state is never used to trigger a switch of the active path when failure-action down is configured.

2.1.4.5.2. Failure-action failover

The failure-action failover command is supported for point-to-point RSVP LSPs (except mesh-p2p and one-hop-p2p auto-LSPs because these do not have a secondary path). When this action is configured, the system triggers a failover from either the currently active path to the secondary path, the next-best preference secondary path, or the secondary-standby path of an LSP when an LSP BFD session configured at the LSP level transitions from an up to a down state.

The LSP is always marked “usable” in the TTM, regardless of the BFD session state and BFD traps that are generated when the BFD state machine transitions. If BFD is enabled and failure-action failover is configured, the following conditions apply.

  1. It is possible to bring the LSP up irrespective of the current BFD session state.
  2. If the BFD session transitions from up to down, the current path immediately switches to the next best preference standby path. This should be treated in the same way as receiving a PathErr message for the currently active path; however, a bypass should not be activated.
  3. If global reversion is enabled, the retry timer is triggered for the failed path (as in the case for a PathErr message). When the timer expires, the system requests a new path from CSPF and attempts to signal it. There is a risk that this new path might the same as the failed path. In most cases, the IGP also detects the failure. The system then reverts to the primary path after the revert timer expires.
  4. If MBB is triggered, then this occurs immediately on the primary path, irrespective of the BFD session state.
  5. If the revert timer expires, and the operator is concerned about detecting data path failures that may not be detected by the control plane, it is recommended that the revert timer be set to its maximum value.
  6. LSP BFD only runs on the currently active path. It cannot determine if any non-active paths (for example, a secondary path or primary path during reversion) that the system switches to is up and forwarding. The system relies on the normal control plane mechanisms.

Table 4 describes how the system behaves if a user changes the failure-action while BFD is down. The LSP remains on the current path unless (or until) the control plane takes action or the revert timer expires.

Table 4:  Changes to the Failure Action while BFD is Down

Action Combination (old action/new action)

Description

None/Down

Flag tunnel as unusable in TTM

None/Failover

Flag tunnel as usable in TTM

Down/None

Flag tunnel as usable in TTM

Down/Failover

Flag tunnel as usable in TTM

Failover/None

Flag tunnel as usable in TTM

Failover/Down

Flag tunnel as unusable in TTM

2.1.4.6. MPLS/RSVP on Broadcast Interface

The MPLS/RSVP on Broadcast Interface feature allows MPLS/RSVP to distinguish neighbors from one another when the outgoing interface is a broadcast interface connecting to multiple neighbors over a broadcast domain. More specifically, in the case where a BFD session towards a specific neighbor on the broadcast domain goes down, the consecutive actions (for example, FRR switchover) only concerns the LSPs of the affected neighbor. Previously, the actions would have been taken on the LSPs of all neighbors over the outgoing interface.

2.1.5. MPLS Facility Bypass Method of MPLS Fast Re-Route (FRR)

The MPLS facility bypass method of MPLS Fast Re-Route (FRR) functionality is extended to the ingress node.

The behavior of an LSP at an ingress LER with both fast reroute and a standby LSP path configured is as follows:

  1. When a downstream detour becomes active at a point of local repair (PLR):
    The ingress LER switches to the standby LSP path. If the primary LSP path is repaired subsequently at the PLR, the LSP switches back to the primary path. If the standby goes down, the LSP is switched back to the primary, even though it is still on the detour at the PLR. If the primary goes down at the ingress while the LSP is on the standby, the detour at the ingress is cleaned up and for one-to-one detours a “path tear” is sent for the detour path. In other words, the detour at the ingress does not protect the standby. If and when the primary LSP is again successfully re-signaled, the ingress detour state machine is restarted.
  2. When the primary fails at the ingress:
    The LSP switches to the detour path. If a standby is available then LSP would switch to standby on expiration of hold-timer. If hold-timer is disabled then switchover to standby would happen immediately. On successful global revert of primary path, the LSP would switch back to the primary path.
  3. Admin groups are not taken into account when creating detours for LSPs.

2.1.6. Manual Bypass LSP

In prior releases, the router implemented dynamic bypass tunnels as per RFC 4090, Fast Reroute Extensions to RSVP-TE for LSP Tunnels. When an LSP is signaled and the local protection flag is set in the session_attribute object and/or the FRR object in the path message indicates that facility backup is desired, the PLR establishes a bypass tunnel to provide node and link protection. If a bypass LSP which merges in a downstream node with the protected LSP exist, and if this LSP satisfies the constraints in the FRR object, then this bypass tunnel is selected.

With the manual bypass feature, an LSP can be preconfigured from a PLR which is used exclusively for bypass protection. When a path message for a new LSP requests bypass protection, the node first checks if a manual bypass tunnel satisfying the path constraints exist. If one is found, it is selected. If no manual bypass tunnel is found, the router dynamically signals a bypass LSP in the default behavior. Users can disable the dynamic bypass creation on a per node basis using the CLI.

A maximum of 1000 associations of primary LSP paths can be made with a single manual bypass by default. The max-bypass-associations integer command increases the number of associations. If dynamic bypass creation is disabled on the node, it is recommended to configure additional manual bypass LSPs to handle the required number of associations.

Refer to Configuring Manual Bypass Tunnels for configuration information.

2.1.6.1. PLR Bypass LSP Selection Rules

The PLR uses rules to select a bypass LSP among multiple manual and dynamic bypass LSPs at the time of establishment of the primary LSP path or when searching for a bypass for a protected LSP which does not have an association with a bypass tunnel: Figure 3 shows an example of bypass tunnel nodes.

Figure 3:  Bypass Tunnel Nodes

The rules are:

  1. The MPLS/RSVP task in the PLR node checks if an existing manual bypass satisfies the constraints. If the path message for the primary LSP path indicated node protection desired, which is the default LSP FRR setting at the head end node, MPLS/RSVP task searches for a node-protect’ bypass LSP. If the path message for the primary LSP path indicated link protection desired, then it searches for a link-protect bypass LSP.
  2. If multiple manual bypass LSPs satisfying the path constraints exist, it prefers a manual-bypass terminating closer to the PLR over a manual bypass terminating further away. If multiple manual bypass LSPs satisfying the path constraints terminate on the same downstream node, it selects one with the lowest IGP path cost or if in a tie, picks the first one available.
  3. If none satisfies the constraints and dynamic bypass tunnels have not been disabled on PLR node, then the MPLS/RSVP task in the PLR checks if any of the already established dynamic bypasses of the requested type satisfy the constraints.
  4. If none do, then the MPLS/RSVP task asks CSPF to check if a new dynamic bypass of the requested type, node-protect or link-protect, can be established.
  5. If the path message for the primary LSP path indicated node protection desired, and no manual bypass was found after Step 1, and/or no dynamic bypass LSP was found after one attempt of performing Step 3, the MPLS/RSVP task repeats Steps 1 to 3 looking for a suitable link-protect bypass LSP. If none are found, the primary LSP has no protection and the PLR node must clear the “local protection available” flag in the IPv4 address sub-object of the RRO starting in the next Resv refresh message it sends upstream. Node protection continues to be attempted using a background re-evaluation process.
  6. If the path message for the primary LSP path indicated link protection desired, and no manual bypass was found after step 1, and/or no dynamic bypass LSP was found after performing Step 3, the primary LSP has no protection and the PLR node must clear the “local protection available” flag in the IPv4 address sub-object of the RRO starting in the next RESV refresh message it sends upstream. The PLR will not search for a node-protect’ bypass LSP in this case.
  7. If the PLR node successfully makes an association, it must set the “local protection available” flag in the IPv4 address sub-object of the RRO starting in the next RESV refresh message it sends upstream.
  8. For all primary LSP that requested FRR protection but are not currently associated with a bypass tunnel, the PLR node on reception of RESV refresh on the primary LSP path repeats Steps 1to 7.

If the user disables dynamic-bypass tunnels on a node while dynamic bypass tunnels were activated and were passing traffic, traffic loss will occur on the protected LSP. Furthermore, if no manual bypass exist that satisfy the constraints of the protected LSP, the LSP will remain without protection.

If the user configures a bypass tunnel on node B and dynamic bypass tunnels have been disabled, LSPs which have been previously signaled and which were not associated with any manual bypass tunnel, for example, none existed, are associated with the manual bypass tunnel if suitable. The node checks for the availability of a suitable bypass tunnel for each of the outstanding LSPs every time a RESV message is received for these LSPs.

If the user configures a bypass tunnel on node B and dynamic bypass tunnels have not been disabled, LSPs which have been previously signaled over dynamic bypass tunnels will not automatically be switched into the manual bypass tunnel even if the manual bypass is a more optimized path. The user will have to perform a make before break at the head end of these LSPs.

If the manual bypass goes into the down state in node B and dynamic bypass tunnels have been disabled, node B (PLR) will clear the “protection available” flag in the RRO IPv4 sub-object in the next RESV refresh message for each affected LSP. It will then try to associate each of these LSPs with one of the manual bypass tunnels that are still up. If it finds one, it will make the association and set again the “protection available” flag in the next RESV refresh message for each of these LSPs. If it could not find one, it will keep checking for one every time a RESV message is received for each of the remaining LSPs. When the manual bypass tunnel is back UP, the LSPs which did not find a match are associated back to this tunnel and the protection available flag is set starting in the next RESV refresh message.

If the manual bypass goes into the down state in node B and dynamic bypass tunnels have not been disabled, node B will automatically signal a dynamic bypass to protect the LSPs if a suitable one does not exist. Similarly, if an LSP is signaled while the manual bypass is in the down state, the node will only signal a dynamic bypass tunnel if the user has not disabled dynamic tunnels. When the manual bypass tunnel is back into the UP state, the node will not switch the protected LSPs from the dynamic bypass tunnel into the manual bypass tunnel.

2.1.6.2. FRR Node-Protection (Facility)

The MPLS Fast Re-Route (FRR) functionality enables PLRs to be aware of the missing node protection and lets them regularly probe for a node-bypass. Figure 4 shows an example of FRR node protection.

Figure 4:  FRR Node-Protection Example

The following describes an LSP scenario where:

  1. LSP 1: between PE_1 to PE_2, with CSPF, FRR facility node-protect enabled.
  2. P_1 protects P_2 with bypass-nodes P_1 -P_3 - P_4 - PE_4 -PE_3.
  3. If P_4 fails, P_1 tries to establish the bypass-node three times.
  4. When the bypass-node creation fails, P_1 will protect link P_1-P_2.
  5. P_1 protects the link to P_2 through P_1 - P_5 - P_2.
  6. P_4 returns online.

Since LSP 1 had requested node protection, but due to lack of any available path, it could only obtain link protection. Therefore, every 60 seconds the PLR for LSP 1 will search for a new path that might be able to provide node protection. Once P_4 is back online and such a path is available, a new bypass tunnel is signaled and LSP 1 will get associated with this new bypass tunnel.

2.1.7. Uniform FRR Failover Time

The failover time during FRR consists of a detection time and a switchover time. The detection time corresponds to the time it takes for the RSVP control plane protocol to detect that a network IP interface is down or that a neighbor/next-hop over a network IP interface is down. The control plane can be informed of an interface down event when event is due to a failure in a lower layer such in the physical layer. The control plane can also detect the failure of a neighbor/next-hop on its own by running a protocol such as Hello, Keep-Alive, or BFD.

The switchover time is measured from the time the control plane detects the failure of the interface or neighbor/next-hop to the time the XCMs or IOMs completes the reprogramming of all the impacted ILM or service records in the data path. This includes the time it takes for the control plane to send a down notification to all XCMs or IOMs to request a switch to the backup NHLFE.

Uniform Fast-Reroute (FRR) failover enables the switchover of MPLS and service packets from the outgoing interface of the primary LSP path to that of the FRR backup LSP within the same amount of time regardless of the number of LSPs or service records. This is achieved by updating Ingress Label Map (ILM) records and service records to point to the backup Next-Hop Label to Forwarding Entry (NHLFE) in a single operation.

2.1.8. Automatic Bandwidth Allocation for RSVP LSPs

2.1.8.1. Enabling and Disabling Auto-Bandwidth Allocation on an LSP

This section discusses an auto-bandwidth hierarchy configurable in the config>router>mpls>lsp context.

Adding auto-bandwidth at the LSP level starts the measurement of LSP bandwidth described in Measurement of LSP Bandwidth and allows auto-bandwidth adjustments to take place based on the triggers described in Periodic Automatic Bandwidth Adjustment.

When an LSP is first established, the bandwidth reserved along its primary path is controlled by the bandwidth parameter in the config>router>mpls>lsp>primary context, whether or not the LSP has auto-bandwidth enabled, while the bandwidth reserved along a secondary path is controlled by the bandwidth parameter in the config>router>mpls>lsp>secondary context. When auto-bandwidth is enabled and a trigger occurs, the system will attempt to change the bandwidth of the LSP to a value between min-bandwidth and max-bandwidth, which are configurable values in the lsp>auto-bandwidth context. min-bandwidth is the minimum bandwidth that auto-bandwidth can signal for the LSP, and max-bandwidth is the maximum bandwidth that can be signaled. The user can set the min-bandwidth to the same value as the primary path bandwidth but the system will not enforce this restriction. The system will allow:

  1. no min-bandwidth to be configured. In this case, the implicit minimum is 0 Mb/s.
  2. no max-bandwidth to be configured, as long as overflow-triggered auto-bandwidth is not configured. In this case, the implicit maximum is infinite (effectively 100 Gb/s).
  3. the configured primary path bandwidth to be outside the range of min-bandwidth to max-bandwidth
  4. auto-bandwidth parameters can be changed at any time on an operational LSP; in most cases, the changes have no immediate impact, but subsequent sections will describe some exceptions

All of the auto-bandwidth adjustments discussed are performed using MBB procedures.

Auto bandwidth can be added to an operational LSP at any time (without the need to shut down the LSP or path), but no bandwidth change occurs until a future trigger event. Auto bandwidth may also be removed from an operational LSP at any time and this causes an immediate MBB bandwidth change to be attempted using the configured primary path bandwidth.

A change to the configured bandwidth of an auto-bandwidth LSP has no immediate effect. The change only occurs if the LSP/path goes down (due to failure or administrative action) and comes back up, or if auto-bandwidth is removed from the LSP. The operator can force an auto-bandwidth LSP to be resized immediately to an arbitrary bandwidth using the appropriate tools commands.

2.1.8.2. Autobandwidth on LSPs with Secondary or Secondary Standby Paths

Autobandwidth is supported for LSPs that have secondary or secondary standby paths. A secondary path is only initialized at its configured bandwidth when it is established, and the bandwidth is adjusted only when the secondary path becomes active.

This description makes use of the following terminology:

  1. current_BW: the last known reserved bandwidth for the LSP; may be the value of a different path from the currently active path
  2. operational BW: the last known reserved BW for a given path, as recorded in the MIB
  3. configured BW: the bandwidth explicitly configured for the LSP path by the user in CLI
  4. active path: the path (primary or secondary) the LSP currently uses to forward traffic
  5. signaled BW: the new BW value signaled during an MBB

A secondary or standby secondary path is initially signaled with its configured bandwidth. Setup for the secondary path is triggered only when the active path goes down or becomes degraded (for example, due to FRR or preemption). An auto-BW triggered bandwidth adjustment (auto bandwidth MBB) only takes place on the active path. For example, if an auto-BW adjustment occurs on the primary path, which is currently active, no adjustment is made at that time to the secondary path since that path is not active.

When the active path changes, the current_bw is updated to the operational bandwidth of the newly active path. While the auto-BW MBB on the active path is in progress, a statistics sample could be triggered, and this would be collected in the background. Auto-bandwidth computations will use the current_bw of the newly active path. In case the statistics sample collection results in a bandwidth adjustment, the in-progress auto-BW MBB is restarted. If after five attempts, the auto-BW MBB fails, the current_bw and secondary operational BW remain unchanged.

For a secondary or standby secondary path, if the active path for an LSP changes (without the LSP going down), an auto-BW MBB is triggered for the new active path. The bandwidth used to signal the MBB is the operational bandwidth of the previous active path. If the MBB fails, it will retry with a maximum of 5 attempts. The reserved bandwidth of the newly active path will therefore be its configured bandwidth until the MBB succeeds.

For a secondary path where the active path goes down, the LSP will go down temporarily until the secondary path is setup. If the LSP goes down, all statistics and counters are cleared, so the previous path operational bandwidth is lost. That is, the operational BW of a path is not persistent across LSP down events. In this case, there is no immediate bandwidth adjustment on the secondary path.

The following algorithm is used to determine the signaled bandwidth on a newly active path:

  1. For a path that is operationally down, signaled_bw = config_bw.
  2. For the active path, if an auto-BW MBB adjustment is in progress, signaled_bw = previous path operational BW for the first 5 attempts. For the remaining attempts, the signaled BW = operational BW.
  3. For an MBB on the active path (other than an auto-BW MBB), MBB signaled BW = operational BW.
  4. For an MBB on the inactive path, MBB signaled BW = configured BW.

If the primary path is not the currently active path and it has not gone down, then any MB uses the configured BW for the primary path. However, if the configured BW is changed for a path that is currently not active, then a config change MBB is not triggered.

If the standby is SRLG enabled, and the active path is the standby, and the primary comes up, this will immediately trigger a delayed retry MBB on the standby. If the delayed retry MBB fails, immediate reversion to the primary occurs regardless of the retry timer.

When the system reverts from a secondary standby or secondary path to the primary path, a Delayed Retry MBB is attempted to bring bandwidth of the standby path back to its configured bandwidth. Delayed Retry MBB is attempted once, and if it fails, the standby is torn down. A Delayed Retry MBB has highest priority among all MBBs, so it will take precedence over any other MBB in progress on the standby path (for example, Config change or Preemption).

The system will carry-over the last signaled BW of the LSP over multiple failovers. For example, if an LSP is configured with auto-BW for some time, and adjusts its currently reserved bandwidth for the primary, and Monitor mode is then enabled, BW adjustment on the primary ceases, but the BW remains reserved at the last adjusted value. Next, the LSP fails over to a secondary or secondary standby. The secondary will inherit the last reserved BW of the primary, but then disable further adjustment as long as monitoring mode is enabled.

The system’s ability to carry-over the last signaled BW across failovers has the following limitations:

  1. Case 1: If the LSP fails over from path1 to path2 and the AutoBW MBB on path2 is successful, the last signaled BW is carried over when the LSP reverts back to path1 or fails over to a new path3. This may trigger an AutoBW MBB on the new active path to adjust its bandwidth to last signaled BW.
  2. Case 2: If the LSP fails over from path1 to path2 and the AutoBW MBB on path2 is still in progress and the LSP reverts back to path1 or fails over to a new path3, the last signaled BW is carried over to the new active path (path1 or path3) and this may result in an AutoBW MBB on that path.
  3. Case 3: If the LSP fails over from path1 to path2 and the AutoBW MBB on path2 fails (after 5 retry attempts), the last signaled BW from when path1 was active is lost. Therefore, when the LSP reverts back to path1 or fails over to a new path3, the original signaled BW from path1 is not carried over. However the signaled bandwidth of path2 is carried over to the new active path (path1 or path3) and may trigger an AutoBW on that path.

2.1.8.3. Measurement of LSP Bandwidth

Automatic adjustment of RSVP LSP bandwidth based on measured traffic rate into the tunnel requires the LSP to be configured for egress statistics collection at the ingress LER. The following CLI shows an example:

config router mpls lsp name
      egress-statistics
      accounting-policy 99
      collect-stats
      no shutdown
exit

All LSPs configured for accounting, including any configured for auto-bandwidth based on traffic measurements, must reference the same accounting policy. An example configuration of such an accounting-policy is shown below: in the CLI example below.

config log
     accounting-policy 99
     collection-interval 5
         record combined-mpls-lsp-egress
     exit
exit

The record combined-mpls-lsp-egress command in the accounting policy has the effect of recording both egress packet and byte counts and bandwidth measurements based on the byte counts if auto-bandwidth is enabled on the LSP.

When egress statistics are enabled the CPM collects stats from of all XCMs or IOMs involved in forwarding traffic belonging to the LSP (whether the traffic is currently leaving the ingress LER via the primary LSP path, a secondary LSP path, an FRR detour path or an FRR bypass path). The egress statistics have counts for the number of packets and bytes forwarded per LSP on a per-forwarding class, per-priority (in-profile vs. out-of-profile) basis. When auto-bandwidth is configured for an LSP the ingress LER calculates a traffic rate for the LSP as follows:

Average data rate of LSP[x] during interval[i] = F(x, i)—F(x, i-1)/sample interval

F(x, i) — The total number of bytes belonging to LSP[x], regardless of forwarding-class or priority, at time[i]

sample interval = time[i] — time [i-1], time[i+1] — time[i], and so on.

The sample interval is the product of sample-multiplier and the collection-interval specified in the auto-bandwidth accounting policy. A default sample-multiplier for all LSPs may be configured using the config>router>mpls>auto-bandwidth-defaults command but this value can be overridden on a per-LSP basis at the config>router>mpls>lsp>auto-bandwidth context. The default value of sample-multiplier (the value that would result from the no auto-bandwidth-defaults command) is 1, which means the default sample interval is 300 seconds.

Over a longer period of time called the adjust interval the router keeps track of the maximum average data rate recorded during any constituent sample interval. The adjust interval is the product of adjust-multiplier and the collection-interval specified in the auto-bandwidth accounting-policy. A default adjust-multiplier for all LSPs may be configured using the config>router>mpls>auto-bandwidth-multiplier command but this value can be overridden on a per-LSP basis at the config>router>mpls>lsp>auto-bandwidth context. The default value of adjust-multiplier (the value that would result from the no auto-bandwidth-multiplier command) is 288, which means the default adjust interval is 86400 seconds or 24 hours. The system enforces the restriction that adjust-multiplier is equal to or greater than sample-multiplier. It is recommended that the adjust-multiplier be an integer multiple of the sample-multiplier.

The collection-interval in the auto-bandwidth accounting policy can be changed at any time, without disabling any of the LSPs that rely on that policy for statistics collection.

The sample-multiplier (at the mpls>auto-bandwidth level or the lsp>auto-bandwidth level) can be changed at any time. This will have no effect until the beginning of the next sample interval. In this case the adjust-interval does not change and information about the current adjust interval (such as the remaining adjust-multiplier, the maximum average data rate) is not lost when the sample-multiplier change takes effect.

The system allows adjust-multiplier (at the mpls level or the lsp>auto-bandwidth level) to be changed at any time as well but in this case the new value shall have no effect until the beginning of the next adjust interval.

Byte counts collected for LSP statistics include layer 2 encapsulation (Ethernet headers and trailers) and therefore average data rates measured by this feature include Layer 2 overhead as well.

2.1.8.4. Passive Monitoring of LSP Bandwidth

The system offers the option to measure the bandwidth of an RSVP LSP (see Measurement of LSP Bandwidth) without taking any action to adjust the bandwidth reservation, regardless of how different the measured bandwidth is from the current reservation. Passive monitoring is enabled using the config>router>mpls>lsp>auto-bandwidth>monitor-bandwidth command.

The show>router>mpls>lsp detail command can be used to view the maximum average data rate in the current adjust interval and the remaining time in the current adjust interval.

2.1.8.5. Periodic Automatic Bandwidth Adjustment

Automatic bandwidth allocation is supported on any RSVP LSP that has MBB enabled. MBB is enabled in the config>router>mpls>lsp context using the adaptive command. For automatic adjustments of LSP bandwidth to occur the monitor-bandwidth command must not be present at config>router>mpls>lsp>auto-bandwidth context, otherwise only passive measurements will occur.

If an eligible RSVP LSP is configured for auto-bandwidth, by entering auto-bandwidth at the config>router>mpls>lsp context, then the ingress LER decides every adjust interval whether to attempt auto-bandwidth adjustment. The following parameters are defined:

  1. current_bw — The currently reserved bandwidth of the LSP; this is the operational bandwidth that is already maintained in the MIB.
  2. measured_bw — The maximum average data rate in the current adjust interval.
  3. signaled_bw — The bandwidth that is provided to the CSPF algorithm and signaled in the SENDER_TSPEC and FLOWSPEC objects when an auto-bandwidth adjustment is attempted.
  4. min — The configured min-bandwidth of the LSP.
  5. max — The configured max-bandwidth of the LSP.
  6. up% — The minimum difference between measured_bw and current_bw, expressed as a percentage of current_bw, for increasing the bandwidth of the LSP.
  7. up — The minimum difference between measured_bw and current_bw, expressed as an absolute bandwidth relative to current_bw, for increasing the bandwidth of the LSP. This is an optional parameter; if not defined the value is 0.
  8. down% — The minimum difference between current_bw and measured_bw, expressed as a percentage of current_bw, for decreasing the bandwidth of the LSP.
  9. down — The minimum difference between current_bw and measured_bw, expressed as an absolute bandwidth relative to current_bw, for decreasing the bandwidth of the LSP. This is an optional parameter; if not defined the value is 0.

At the end of every adjust interval the system decides if an auto-bandwidth adjustment should be attempted. The heuristics are as follows:

  1. If the measured bandwidth exceeds the current bandwidth by more than the percentage threshold and also by more than the absolute threshold then the bandwidth is re-signaled to the measured bandwidth (subject to min and max constraints).
  2. If the measured bandwidth is less than the current bandwidth by more than the percentage threshold and also by more than the absolute threshold then the bandwidth is re-signaled to the measured bandwidth (subject to min and max constraints).
  3. If the current bandwidth is greater than the max bandwidth then the LSP bandwidth is re-signaled to max bandwidth, even if the thresholds have not been triggered.
  4. If the current bandwidth is less than the min bandwidth then the LSP bandwidth is re-signaled to min bandwidth, even if the thresholds have not been triggered.

Changes to min-bandwidth, max-bandwidth and any of the threshold values (up, up%, down, down%) are permitted at any time on an operational LSP but the changes have no effect until the next auto-bandwidth trigger (for example, adjust interval expiry).

If the measured bandwidth exceeds the current bandwidth by more than the percentage threshold and also by more than the absolute threshold then the bandwidth is re-signaled to the measured bandwidth (subject to min and max constraints).

The adjust-interval and maximum average data rate are reset whether the adjustment succeeds or fails. If the bandwidth adjustment fails (for example, CSPF cannot find a path) then the existing LSP is maintained with its existing bandwidth reservation. The system does not retry the bandwidth adjustment (for example, per the configuration of the LSP retry-timer and retry-limit).

2.1.8.6. Overflow-Triggered Auto-Bandwidth Adjustment

For cases where the measured bandwidth of an LSP has increased significantly since the start of the current adjust interval it may be desirable for the system to preemptively adjust the bandwidth of the LSP and not wait until the end of the adjust interval.

The following parameters are defined:

  1. current_bw — The currently reserved bandwidth of the LSP.
  2. sampled_bw — The average data rate of the sample interval that just ended.
  3. measured_bw — The maximum average data rate in the current adjust interval.
  4. signaled_bw — The bandwidth that is provided to the CSPF algorithm and signaled in the SENDER_TSPEC and FLOWSPEC objects when an auto-bandwidth adjustment is attempted.
  5. max — The configured max-bandwidth of the LSP.
  6. %_threshold — The minimum difference between sampled_bw and current_bw, expressed as a percentage of the current_bw, for counting an overflow event.
  7. min_threshold — The minimum difference between sampled_bw and current_bw, expressed as an absolute bandwidth relative to current_bw, for counting an overflow event. This is an optional parameter; if not defined the value is 0.

When a sample interval ends it is counted as an overflow if:

  1. The sampled bandwidth exceeds the current bandwidth by more than the percentage threshold and by more than the absolute bandwidth threshold (if defined).
  2. When the number of overflow samples reaches a configured limit, an immediate attempt is made to adjust the bandwidth to the measured bandwidth (subject to the min and max constraints).

If the bandwidth adjustment is successful then the adjust-interval, maximum average data rate and overflow count are all reset. If the bandwidth adjustment fails then the overflow count is reset but the adjust-interval and maximum average data rate continue with current values. It is possible that the overflow count will once again reach the configured limit before the end of adjust-interval is reached and this will once again trigger an immediate auto-bandwidth adjustment attempt.

The overflow configuration command fails if the max-bandwidth of the LSP has not been defined.

The threshold limit can be changed on an operational auto-bandwidth LSP at any time and the change should take effect at the end of the current sample interval (for example, if the user decreases the overflow limit to a value lower than the current overflow count then auto-bandwidth adjustment will take place as soon as the sample interval ends). The threshold values can also be changed at any time (for example, %_threshold and min_threshold) but the new values will not take effect until the end of the current sample interval.

2.1.8.7. Manually-Triggered Auto-Bandwidth Adjustment

Manually-triggered auto-bandwidth adjustment feature is configured with the tools>perform>router>mpls adjust-autobandwidth [lsp lsp-name [force [bandwidth mbps]]] command to attempt immediate auto-bandwidth adjustment for either one specific LSP or all active LSPs. If the LSP is not specified then the system assumes the command applies to all LSPs. If an LSP name is provided then the command applies to that specific LSP only and the optional force parameter (with or without a bandwidth) can be used.

If force is not specified (or the command is not LSP-specific) then measured_bw is compared to current_bw and bandwidth adjustment may or may not occur

If force is specified and a bandwidth is not provided then the threshold checking is bypassed but the min and max bandwidth constraints are still enforced.

If force is specified with a bandwidth (in Mb/s) then signaled_bw is set to this bandwidth. There is no requirement that the bandwidth entered as part of the command fall within the range of min-bandwidth to max-bandwidth.

The adjust-interval, maximum average data rate and overflow count are not reset by the manual auto-bandwidth command, whether or not the bandwidth adjustment succeeds or fails. The overflow count is reset only if the manual auto-bandwidth adjustment is successful.

2.1.8.8. Operational Bandwidth Carryover between Active Paths

SR OS supports carrying over of the operational bandwidth (for example, the last successfully signaled bandwidth) of an LSP path to the next active path following a switchover. The new active path can be a secondary or a primary path. The bandwidth is not lost even when the previously active path fails. The last successfully signaled bandwidth is known as the last adjusted bandwidth.

This feature is enabled using the configure router mpls lsp auto-bandwidth use-last-adj-bw command.

When enabled, secondary paths are initially signaled with the last adjusted bandwidth of the primary, and not the configured bandwidth. If signaling a secondary at this bandwidth fails after some number of retries, then the path fails rather than falling back to using the configured bandwidth. The number of retries of secondary paths at the last adjusted bandwidth is configured using the secondary-retry-limit command under use-last-adj-bw.

A shutdown of the primary or any configuration change events that cause a switch to a secondary, uses the last adjusted bandwidth. The user can toggle use-last-adj-bw at any time; this does not require an administrative shutdown of auto bandwidth, however, the new value is not used until the next path switchover.

Note:

The last adjusted bandwidth value is reset on a shutdown of MPLS, the LSP, or autobandwidth.

If the revert timer is enabled, the primary is re-signaled before the revert timer expires with its configured bandwidth. An auto-bandwidth MBB using the last adjusted bandwidth of the secondary occurs immediately on switching back when the revert timer expires. If the system switches to a new path while an auto-bandwidth MBB is in progress on the previously active path, then the bandwidth used to signal the new path is the new value that was being attempted on the old path (rather than the last adjusted bandwidth). This means that the new path establishes with the most up to date bandwidth for the LSP (provided sufficient network resources are available) rather than a potentially out of date bandwidth.

2.2. RSVP

The Resource Reservation Protocol (RSVP) is a network control protocol used by a host to request specific qualities of service from the network for particular application data streams or flows. RSVP is also used by routers to deliver quality of service (QoS) requests to all nodes along the path(s) of the flows and to establish and maintain state to provide the requested service. RSVP requests generally result in resources reserved in each node along the data path. MPLS leverages this RSVP mechanism to set up traffic engineered LSPs. RSVP is not enabled by default and must be explicitly enabled.

RSVP requests resources for simplex flows. It requests resources only in one direction (unidirectional). Therefore, RSVP treats a sender as logically distinct from a receiver, although the same application process may act as both a sender and a receiver at the same time. Duplex flows require two LSPs, to carry traffic in each direction.

RSVP is not a routing protocol. RSVP operates with unicast and multicast routing protocols. Routing protocols determine where packets are forwarded. RSVP consults local routing tables to relay RSVP messages.

RSVP uses two message types to set up LSPs, PATH and RESV. Figure 5 depicts the process to establish an LSP.

  1. The sender (the ingress LER (ILER)), sends PATH messages toward the receiver, (the egress LER (eLER)) to indicate the FEC for which label bindings are desired. PATH messages are used to signal and request label bindings required to establish the LSP from ingress to egress. Each router along the path observes the traffic type.
    PATH messages facilitate the routers along the path to make the necessary bandwidth reservations and distribute the label binding to the router upstream.
  2. The eLER sends label binding information in the RESV messages in response to PATH messages received.
  3. The LSP is considered operational when the ILER receives the label binding information.
    Figure 5:  Establishing LSPs
    Figure 6:  LSP Using RSVP Path Set Up

Figure 6 displays an example of an LSP path set up using RSVP. The ingress label edge router (ILER 1) transmits an RSVP path message (path: 30.30.30.1) downstream to the egress label edge router (eLER 4). The path message contains a label request object that requests intermediate LSRs and the eLER to provide a label binding for this path.

In addition to the label request object, an RSVP PATH message can also contain a number of optional objects:

  1. Explicit route object (ERO) — When the ERO is present, the RSVP path message is forced to follow the path specified by the ERO (independent of the IGP shortest path).
  2. Record route object (RRO) — Allows the ILER to receive a listing of the LSRs that the LSP tunnel actually traverses.
  3. A session attribute object controls the path set up priority, holding priority, and local-rerouting features.

Upon receiving a path message containing a label request object, the eLER transmits a RESV message that contains a label object. The label object contains the label binding that the downstream LSR communicates to its upstream neighbor. The RESV message is sent upstream towards the ILER, in a direction opposite to that followed by the path message. Each LSR that processes the RESV message carrying a label object uses the received label for outgoing traffic associated with the specific LSP. When the RESV message arrives at the ingress LSR, the LSP is established.

2.2.1. Using RSVP for MPLS

Hosts and routers that support both MPLS and RSVP can associate labels with RSVP flows. When MPLS and RSVP are combined, the definition of a flow can be made more flexible. Once an LSP is established, the traffic through the path is defined by the label applied at the ingress node of the LSP. The mapping of label to traffic can be accomplished using a variety of criteria. The set of packets that are assigned the same label value by a specific node are considered to belong to the same FEC which defines the RSVP flow.

For use with MPLS, RSVP already has the resource reservation component built-in which makes it ideal to reserve resources for LSPs.

2.2.1.1. RSVP Traffic Engineering Extensions for MPLS

RSVP has been extended for MPLS to support automatic signaling of LSPs. To enhance the scalability, latency, and reliability of RSVP signaling, several extensions have been defined. Refresh messages are still transmitted but the volume of traffic, the amount of CPU utilization, and response latency are reduced while reliability is supported. None of these extensions result in backward compatibility problems with traditional RSVP implementations.

2.2.1.2. Hello Protocol

The Hello protocol detects the loss of a neighbor node or the reset of a neighbor’s RSVP state information. In standard RSVP, neighbor monitoring occurs as part of RSVP’s soft-state model. The reservation state is maintained as cached information that is first installed and then periodically refreshed by the ingress and egress LSRs. If the state is not refreshed within a specified time interval, the LSR discards the state because it assumes that either the neighbor node has been lost or its RSVP state information has been reset.

The Hello protocol extension is composed of a hello message, a hello request object and a hello ACK object. Hello processing between two neighbors supports independent selection of failure detection intervals. Each neighbor can automatically issue hello request objects. Each hello request object is answered by a hello ACK object.

2.2.1.3. MD5 Authentication of RSVP Interface

When enabled on an RSVP interface, authentication of RSVP messages operates in both directions of the interface.

A node maintains a security association with its neighbors for each authentication key. The following items are stored in the context of this security association:

  1. The HMAC-MD5 authentication algorithm.
  2. Key used with the authentication algorithm.
  3. Lifetime of the key. A key is user-generated key using a third party software/hardware and enters the value as static string into CLI configuration of the RSVP interface. The key will continue to be valid until it is removed from that RSVP interface.
  4. Source Address of the sending system.
  5. Latest sending sequence number used with this key identifier.

The RSVP sender transmits an authenticating digest of the RSVP message, computed using the shared authentication key and a keyed-hash algorithm. The message digest is included in an Integrity object which also contains a Flags field, a Key Identifier field, and a Sequence Number field. The RSVP sender complies to the procedures for RSVP message generation in RFC 2747, RSVP Cryptographic Authentication.

An RSVP receiver uses the key together with the authentication algorithm to process received RSVP messages.

When a PLR node switches the path of the LSP to a bypass LSP, it does not send the Integrity object in the RSVP messages over the bypass tunnel. If an integrity object is received from the MP node, then the message is discarded since there is no security association with the next-next-hop MP node.

The MD5 implementation does not support the authentication challenge procedures in RFC 2747.

2.2.1.4. Configuring Authentication using Keychains

The use of authentication mechanism is recommended to protect against malicious attack on the communications between routing protocol neighbors. These attacks could aim to either disrupt communications or to inject incorrect routing information into the systems routing table. The use of authentication keys can help to protect the routing protocols from these types of attacks.

Within RSVP, authentication must be explicitly configured through the use of the authentication keychain mechanism. This mechanism allows for the configuration of authentication keys and allows the keys to be changed without affecting the state of the protocol adjacencies.

To configure the use of an authentication keychain within RSVP, use the following steps:

  1. Configure an authentication keychain within the config>system>security context. The configured keychain must include at least on valid key entry, using a valid authentication algorithm for the RSVP protocol.
  2. Associate the configure authentication keychain with RSVP at the interface level of the CLI, this is done through the use of the "auth-keychain name" command.

For a key entry to be valid, it must include a valid key, the current system clock value must be within the begin and end time of the key entry, and the algorithm specified in the key entry must be supported by the RSVP protocol.

The RSVP protocol supports the following algorithms:

  1. clear text password
  2. HMAC-MD5
  3. HMC-SHA-1

Error handling:

  1. If a keychain exists but there are no active key entries with an authentication type that is valid for the associated protocol then inbound protocol packets will not be authenticated and discarded, and no outbound protocol packets should be sent.
  2. If keychain exists but the last key entry has expired, a log entry is raised indicating that all keychain entries have expired. The RSVP protocol requires that the protocol not revert to an unauthenticated state and requires that the old key is not to be used, therefore, once the last key has expired, all traffic is discarded.

2.2.2. Reservation Styles

LSPs can be signaled with explicit reservation styles. A reservation style is a set of control options that specify a number of supported parameters. The style information is part of the LSP configuration. SR OS supports two reservation styles:

  1. Fixed Filter (FF) — The Fixed Filter (FF) reservation style specifies an explicit list of senders and a distinct reservation for each of them. Each sender has a dedicated reservation that is not shared with other senders. Each sender is identified by an IP address and a local identification number, the LSP ID. Because each sender has its own reservation, a unique label and a separate LSP can be constructed for each sender-receiver pair. For traditional RSVP applications, the FF reservation style is ideal for a video distribution application in which each channel (or source) requires a separate pipe for each of the individual video streams.
  2. Shared Explicit (SE) — The Shared Explicit (SE) reservation style creates a single reservation over a link that is shared by an explicit list of senders. Because each sender is explicitly listed in the RESV message, different labels can be assigned to different sender-receiver pairs, thereby creating separate LSPs.
    If FRR option is enabled for the LSP and selects the facility FRR method at the head-end node, only the SE reservation style is allowed. Furthermore, if a PLR node receives a path message with fast-reroute requested with facility method and the FF reservation style, it will reject the reservation. The one-to-one detour method supports both FF and SE styles.

2.2.2.1. RSVP Message Pacing

When a flood of signaling messages arrive because of topology changes in the network, signaling messages can be dropped which results in longer set up times for LSPs. RSVP message pacing controls the transmission rate for RSVP messages, allowing the messages to be sent in timed intervals. Pacing reduces the number of dropped messages that can occur from bursts of signaling messages in large networks.

2.2.3. RSVP Overhead Refresh Reduction

The RSVP refresh reduction feature consists of the following capabilities implemented in accordance to RFC 2961, RSVP Refresh Overhead Reduction Extensions:

  1. RSVP message bundling — This capability is intended to reduce overall message handling load. The system supports receipt and processing of bundled message only, but no transmission of bundled messages.
  2. Reliable message delivery — This capability consists of sending a message-id and returning a message-ack for each RSVP message. It can be used to detect message loss and support reliable RSVP message delivery on a per hop basis. It also helps reduce the refresh rate since the delivery becomes more reliable.
  3. Summary refresh — This capability consists of refreshing multiples states with a single message-id list and sending negative ACKs (NACKs) for a message_id which could not be matched. The summary refresh capability reduce the amount of messaging exchanged and the corresponding message processing between peers. It does not however reduce the amount of soft state to be stored in the node.

These capabilities can be enabled on a per-RSVP-interface basis are referred to collectively as “refresh overhead reduction extensions”. When the refresh-reduction is enabled on a system RSVP interface, the node indicates this to its peer by setting a refresh-reduction- capable bit in the flags field of the common RSVP header. If both peers of an RSVP interface set this bit, all the above three capabilities can be used. Furthermore, the node monitors the settings of this bit in received RSVP messages from the peer on the interface. As soon as this bit is cleared, the node stops sending summary refresh messages. If a peer did not set the “refresh-reduction-capable” bit, a node does not attempt to send summary refresh messages.

The RSVP Overhead Refresh Reduction is supported with both RSVP P2P LSP path and the S2L path of an RSVP P2MP LSP instance over the same RSVP interface.

2.2.4. RSVP Graceful Restart Helper

The gr-helper command enables the RSVP Graceful Restart Helper feature.

The RSVP-TE Graceful Restart helper mode allows the SR OS based system (the helper node) to provide another router that has requested it (the restarting node) a grace period, during which the system will continue to use RSVP sessions to neighbors requesting the grace period. This is typically used when another router is rebooting its control plane but its forwarding plane is expected to continue to forward traffic based on the previously available Path and Resv states.

The user can enable Graceful Restart helper on each RSVP interface separately. When the GR helper feature is enabled on an RSVP interface, the node starts inserting a new Restart_Cap Object in the Hello packets to its neighbor. The restarting node does the same and indicates to the helper node the desired Restart Time and Recovery Time.

The GR Restart helper consists of a couple of phases. Once it loses Hello communication with its neighbor, the helper node enters the Restart phase. During this phase, it preserves the state of all RSVP sessions to its neighbor and waits for a new Hello message.

Once the Hello message is received indicating the restarting node preserved state, the helper node enters the recovery phase in which it starts refreshing all the sessions that were preserved. The restarting node will activate all the stale sessions that are refreshed by the helper node. Any Path state that did not get a Resv message from the restarting node once the Recovery Phase time is over is considered to have expired and is deleted by the helper node causing the proper Path Tear generation downstream.

The duration of the restart phase (recovery phase) is equal to the minimum of the neighbor’s advertised Restart Time (Recovery Time) in its last Hello message and the locally configured value of the max-restart (max-recovery) parameter.

When GR helper is enabled on an RSVP interface, its procedures apply to the state of both P2P and P2MP RSVP LSP to a neighbor over this interface.

2.2.5. Enhancements to RSVP Control Plane Congestion Control

The RSVP control plane makes use of a global flow control mechanism to adjust the rate of Path messages for unmapped LSP paths sent to the network under congestion conditions. When a Path message for establishing a new LSP path or retrying an LSP path that failed is sent out, the control plane keeps track of the rate of successful establishment of these paths and adjusts the number of Path messages it sends per second to reflect the success ratio.

In addition, an option to enable an exponential back-off retry-timer is available. When an LSP path establishment attempt fails, the path is put into retry procedures and a new attempt is performed at the expiry of the user-configurable retry-timer. By default, the retry time is constant. The exponential back-off timer procedures will double the value of the user configurable retry-timer value at every failure of the attempt to adjust to the potential network congestion that caused the failure. An LSP establishment fails if no Resv message was received and the Path message retry-timer expired, or a PathErr message was received before the timer expired.

Three enhancements to this flow-control mechanism to improve congestion handling in the rest of the network are supported.

The first enhancement is the change to the LSP path retry procedure. If the establishment attempt failed due to a Path message timeout and no Resv was received, the next attempt is performed at the expiry of a new LSP path initial retry-timer instead of the existing retry-timer. While the LSP path initial retry-timer is still running, a refresh of the Path message using the same path and the same LSP-id is performed according to the configuration of the refresh-timer. Once the LSP path initial retry-timer expires, the ingress LER then puts this path on the regular retry-timer to schedule the next path signaling using a new computed path by CSPF and a new LSP-id.

The benefits of this enhancement is that the user can now control how many refreshes of the pending PATH state can be performed before starting a new retry-cycle with a new LSP-id. This is all done without affecting the ability to react faster to failures of the LSP path, which will continue to be governed by the existing retry-timer. By configuring the LSP path initial retry-timer to values that are larger than the retry-timer, the ingress LER will decrease the probability of overwhelming a congested LSR with new state while the previous states installed by the same LSP are lingering and will only be removed after the refresh timeout period expires.

The second enhancement consists of applying a jitter +/- 25% to the value of the retry-timer similar to how it is currently done for the refresh timer. This will further decrease the probability that ingress LER nodes synchronize their sending of Path messages during the retry-procedure in response to a congestion event in the network.

The third enhances the RSVP flow control mechanism by taking into account new parameters: outstanding CSPF requests, Resv timeouts and Path timeouts.

2.2.6. RSVP LSP Statistics

This feature provides the following counters:

  1. Per forwarding class forwarded in-profile packet count
  2. Per forwarding class forwarded in-profile byte count
  3. Per forwarding class forwarded out of profile packet count
  4. Per forwarding class forwarded out of profile byte count

The counters are available for an RSVP LSP at the egress datapath of an ingress LER and at the ingress datapath of an egress LER. No LSR statistics are provided.

2.2.7. P2MP RSVP-TE LSP Statistics

This feature provides the following counters for a RSVP P2MP LSP instance:

  1. Per forwarding class forwarded in-profile packet count.
  2. Per forwarding class forwarded in-profile byte count.
  3. Per forwarding class forwarded out of profile packet count.
  4. Per forwarding class forwarded out of profile byte count.

The above counters are provided for the following LSR roles:

  1. At ingress LER, a set of per P2MP LSP instance counters for packets forwarded to the P2MP LSP instance without counting the replications is provided. In other words, a packet replicated over multiple branches of the same P2MP LSP instance will count once as long as at least one LSP branch forwarded it.
  2. At BUD LSR and egress LER, per ILM statistics are provided. These counters will include all packets received on the ILM, whether they match a L2/L3 MFIB record or not. ILM stats will work the same way as for a P2P LSP. In other words, they will count all packets received on the primary ILM, including packets received over the bypass LSP.
    When MBB is occurring for an S2L path of an RSVP P2MP LSP, paths of the new and old S2L will both receive packets on the egress LER. Both packets are forwarded to the fabric and outgoing PIM/IGMP interfaces until the older path is torn down by the ingress LER. In this case, packet duplication should be counted.
  3. No branch LSR statistics are provided.
  4. The P2MP LSP statistics share the same pool of counters and stat indices the P2P LSP share on the node. Each P2P/P2MP RSVP LSP or LDP FEC consumes one stat index for egress stats and one stat index for ingress stats.
  5. The user can retrieve the above counters in four different ways:
    1. In CLI display of the output of the show command applied to a specific instance, or a specific template instance, of a RSVP P2MP.
    2. In CLI display of the output of the monitor command applied to a specific instance, or a specific template instance, of a RSVP P2MP.
    3. Via an SNMP interface by querying the MIB.
    4. Via an accounting file if statistics collection with the default or user specified accounting policy is enabled for the MPLS LSP stats configuration contexts.
  6. OAM packets that are forwarded using the LSP encapsulation, for example, P2MP LSP Ping and P2MP LSP Trace, are also included in the above counters.

The user can determine if packets are dropped for a given branch of a P2MP RSVP LSP by comparing the egress counters at the ingress LER with the ILM counters at the egress LER or BUD LSR.

Octet counters are for the entire frame and so include the label stack and the L2 header and padding similar to the existing P2P RSVP LSP and LDP FEC counters. As such, ingress and egress octet counters for an LSP may slightly differ if the type of interface or encapsulation is different (POS, Ethernet NULL, Ethernet Dot1.Q).

2.2.7.1. Configuring RSVP P2MP LSP Egress Statistics

At ingress LER, the configuration of the egress statistics is under the MPLS P2MP LSP context when carrying multicast packets over a RSVP P2MP LSP in the base routing instance. This is the same configuration as the one already supported with P2P RSVP LSP.

config
     router
        [no] mpls
            [no] lsp lsp-name p2mp-lsp
                 [no] egress-statistics
                      accounting-policy policy-id
                      no accounting-policy
                      [no] collect-stats
                 [no] shutdown

If there are no stat indices available when the user performs the ‘no shutdown’ command for the egress statistics node, the command fails.

The configuration is in the P2MP LSP template when the RSVP P2MP LSP is used as an I-PMSI or S-PMSI in multicast VPN or in VPLS/B-VPLS.

config
     router
          [no] mpls
               lsp-template template-name p2mp
               no lsp-template template-name
                     [no] egress-statistics
                      accounting-policy policy-id
                      no accounting-policy
                      [no] collect-stats

If there are no stat indices available at the time an instance of the P2MP LSP template is signaled, no stats are allocated to the instance, but the LSP is brought up. In this case, an operational state of out-of-resources is shown for the egress stats in the show output of the P2MP LSP S2L path.

2.2.7.2. Configuring RSVP P2MP LSP Ingress Statistics

When the ingress LER signals the path of the S2L sub-LSP, it includes the name of the LSP and that of the path in the Session Name field of the Session Attribute object in the Path message. The encoding is as follows:

Session Name: lsp-name::path-name, where lsp-name component is encoded as follows:

  1. P2MP LSP via user configuration for L3 multicast in global routing instance: “LspNameFromConfig”
  2. P2MP LSP as I-PMSI or S-PMSI in L3 mVPN: templateName-SvcId-mTTmIndex
  3. P2MP LSP as I-PMSI in VPLS/B-VPLS: templateName-SvcId-mTTmIndex

The ingress statistics CLI configuration allows the user to match either on the exact name of the P2MP LSP as configured at the ingress LER or on a context which matches on the template name and the service-id as configured at the ingress LER.

config
     router
          [no] mpls
                   ingress-statistics
                          [no] lsp lsp-name sender sender-address
                                 accounting-policy policy-id
                                 no accounting-policy
                                 [no] collect-stats
                                 [no] shutdown

                          [no] p2mp-template-lsp rsvp-session-name
                          SessionNameString sender sender-address
                                 accounting-policy policy-id
                                 no accounting-policy
                                 [no] collect-stats
                                 max-stats integer<1-8192 | max, default max>
                                 no max-stats
                          [no] shutdown

When the matching is performed on a context, the user must enter the RSVP session name string in the format “templateName-svcId” to include the LSP template name as well as the mVPN VPLS/B-VPLS service ID as configured at the ingress LER. In this case, one or more P2MP LSP instances signaled by the same ingress LER could be associated with the ingress statistics configuration. In this case, the user is provided with CLI parameter max-stats to limit the maximum number of stat indices which can be assigned to this context. If the context matches more than this value, the additional request for stat indices from this context is rejected.

The rules when configuring an ingress statistics context based on template matching are the following:

  1. max-stats once allocated can be increased but not decreased unless the entire ingress statistics context matching a template name is deleted.
  2. In order to delete ingress statistics context matching a template name, a shutdown is required.
  3. An accounting policy cannot be configured or de-configured until the ingress statistics context matching a template name is shutdown.
  4. After deleting an accounting policy from an ingress statistics context matching a template name, the policy is not removed from the log until a ‘no shut’ is performed on the ingress statistics context.

If there are no stat indices available at the time the session of the P2MP LSP matching a template context is signaled and the session state installed by the egress LER, no stats are allocated to the session.

Furthermore, the assignment of stat indices to the LSP names that match the context will also be not deterministic. The latter is due to the fact that a stat index is assigned and released following the dynamics of the LSP creation or deletion by the ingress LER. For example, a multicast stream crosses the rate threshold and is moved to a newly signaled S-PMSI dedicated to this stream. Later on, the same steam crosses the threshold downwards and is moved back to the shared I-PMSI and the P2MP LSP corresponding to the S-PMSI is deleted by the ingress LER.

2.2.7.3. Configuring Implicit Null

The implicit null label option allows a router egress LER to receive MPLS packets from the previous hop without the outer LSP label. The operation of the previous hop is referred to as penultimate hop popping (PHP).

This option is signaled by the egress LER to the previous hop during the LSP signaling with RSVP control protocol. In addition, the egress LER can be configured to receive MPLS packet with the implicit null label on a static LSP.

The user can configure your router to signal the implicit null label value over all RSVP interfaces and for all RSVP LSPs for which this node is the egress LER using the implicit-null-label command in the config>router>rsvp context.

The user must shut down RSVP before being able to change the implicit null configuration option.

The user can also override the RSVP level configuration for a specific RSVP interface:

config>router>rsvp>if>implicit-null-label {enable | disable}

All LSPs for which this node is the egress LER and for which the path message is received from the previous hop node over this RSVP interface will signal the implicit null label. This means that if the egress LER is also the merge-point (MP) node, then the incoming interface for the path refresh message over the bypass dictates if the packet will use the implicit null label or not; the same applies to a 1-to-1 detour LSP.

By default, an RSVP interface inherits the RSVP level configuration. The user must shut down the RSVP interface before being able to change the implicit null configuration option.

Note:

The RSVP interface must be shutdown regardless of whether the new value for the interface is the same or different than the one it is currently using.

The egress LER does not signal the implicit null label value on P2MP RSVP LSPs. However, the PHP node can honor a Resv message with the label value set to the implicit null value when the egress LER is a third party implementation.

The implicit null label option is also supported on a static label LSP. The following commands can be used to cause the node to push or to swap to an implicit null label on the MPLS packet:

config>router>mpls>static-lsp>push implicit-null-label nexthop ip-address

config>router>mpls>if>label-map>swap implicit-null-label nexthop ip-address

2.2.8. Using Unnumbered Point-to-Point Interface in RSVP

This feature introduces the use of unnumbered IP interface as a Traffic Engineering (TE) link for the signaling of RSVP P2P LSP and P2MP LSP.

An unnumbered IP interface is identified uniquely on a router in the network by the tuple {router-id, ifIndex}. Each side of the link assigns a system-wide unique interface index to the unnumbered interface. ISIS, OSPF, RSVP, and OAM modules will use this tuple to advertise the link information, signal LSP paths over this unnumbered interface, or send and respond to an MPLS echo request message over an unnumbered interface.

The interface borrowed IP address is used exclusively as the source address for IP packets that are originated from the interface and needs to be configured to an address different from system interface for the FRR bypass LSP to come up at the ingress LER.

The borrowed IP address for an unnumbered interface is configured using the following CLI command with a default value set to the system interface address:

config> router>if>unnumbered [ip-int-name | ip-address].

The support of unnumbered TE link in IS-IS consists of adding a new sub-TLV of the extended IS reachability TLV, which encodes the Link Local and Link Remote Identifiers as defined in RFC 5307.

The support of unnumbered TE link in OSPF consists of adding a new sub-TLV, which encodes the same Link Local and Link Remote Identifiers in the Link TLV of the TE area opaque LSA and sends the local Identifier in the Link Local Identifier TLV in the TE link local opaque LSA as per RFC 4203.

The support of unnumbered TE link in RSVP implements the signaling of unnumbered interfaces in ERO/RRO as per RFC 3477 and the support of IF_ID RSVP_HOP object with a new Ctype as per Section 8.1.1 of RFC 3473. The IPv4 Next/Previous Hop Address field is set to the borrowed IP interface address.

The unnumbered IP is advertised by IS-IS TE and OSPF TE, and CSPF can include them in the computation of a path for a P2P LSP or for the S2L of a P2MP LSP. This feature does not, however, support defining an unnumbered interface a hop in the path definition of an LSP.

A router creates an RSVP neighbor over an unnumbered interface using the tuple {router-id, ifIndex}. The router-id of the router that advertised a given unnumbered interface index is obtained from the TE database. As a result, if TE is disabled in IS-IS or OSPF, a non-CSPF LSP with the next-hop for its path is over an unnumbered interface will not come up at the ingress LER since the router-id of the neighbor that has the next-hop of the path message cannot be looked up. In this case, the LSP path will remain in operationally down state with a reason noRouteToDestination. If a PATH message was received at the LSR in which TE was disabled and the next-hop for the LSP path is over an unnumbered interface, a PathErr message is sent back to the ingress LER with the Routing Problem error code of 24 and an error value of 5 “No route available toward destination”.

All MPLS features available for numbered IP interfaces are supported, with the exception of the following:

  1. Configuring a router-id with a value other than system.
  2. Signaling of an LSP path with an ERO based a loose/strict hop using an unnumbered TE link in the path hop definition.
  3. Signaling of one-to-one detour LSP over unnumbered interface.
  4. Unnumbered RSVP interface registration with BFD.
  5. RSVP Hello and all Hello related capabilities such as Graceful-restart helper.
  6. The user SRLG database feature. The user-srlg-db option under MPLS allows the user to manually enter the SRLG membership of any link in the network in a local database at the ingress LER. The user cannot enter an unnumbered interface into this database and as such, all unnumbered interfaces are considered as having no SRLG membership if the user enabled the user-srlg-db option.

This feature also extends the support of lsp-ping, p2mp-lsp-ping, lsp-trace, and p2mp-lsptrace to P2P and P2MP LSPs that have unnumbered TE links in their path.

2.2.8.1. Operation of RSVP FRR Facility Backup over Unnumbered Interface

When the Point-of-Local Repair (PLR) node activates the bypass LSP by sending a PATH message to refresh the path state of protected LSP at the Merge-Point (MP) node, it must use an IPv4 tunnel sender address in the sender template object that is different than the one used by the ingress LER in the PATH message. These are the procedures specified in RFC 4090 that are followed in the SR OS implementation.

The router uses the address of the outgoing interface of the bypass LSP as the IPv4 tunnel sender address in the sender template object. This address is different from the system interface address used in the sender template of the protected LSP by the ingress LER and so, there are no conflicts when the ingress LER acts as a PLR.

When the PLR is the ingress LER node and the outgoing interface of the bypass LSP is unnumbered, it is required that the user assigns to the interface a borrowed IP address that is different from the system interface. If not, the bypass LSP will not come up.

In addition, the PLR node will include the IPv4 RSVP_HOP object (C-Type=1) or the IF_ID RSVP_HOP object (C-Type=3) in the PATH message if the outgoing interface of the bypass LSP is numbered or unnumbered respectively.

When the MP node receives the PATH message over the bypass LSP, it will create the merge-point context for the protected LSP and associate it with the existing state if any of the following is satisfied:

  1. Change in C-Type of the RSVP_HOP object, or
  2. C-Type is IF_ID RSVP_HOP and did not change but IF_ID TLV is different, or
  3. Change in IPv4 Next/Previous Hop Address in RSVP_HOP object regardless of the C-Type value.

These procedures at PLR and MP nodes are followed in both link-protect and node-protect FRR. If the MP node is running a pre-Release 11.0 implementation, it will reject the new IF_ID C-Type and will drop the PATH over bypass. This will result in the protected LSP state expiring at the MP node, which will tear down the path. This is the case in general when node-protect FRR is enabled and the MP node does not support unnumbered RSVP interface.

2.2.9. MPLS Segment Routing Traffic Statistics

By default, the system continuously collects statistics (packet and octet counts) of MPLS traffic on ingress and egress of MPLS interfaces. These statistics can be accessed, for example, by using the show>router>mpls>interface statistics command.

In addition, the system can provide auxiliary statistics (packet and octet counts) for a specific type of labeled traffic on ingress and egress of MPLS interfaces. The config>router>mpls>aux-stats command accesses these statistics and also specifies which types of labeled traffic should be counted. The sr keyword refers to any type of MPLS-SR traffic (SR-OSPF, SR-ISIS, SR-TE, and so on). After being enabled and configured, auxiliary statistics can be viewed, monitored, and cleared. The two types of statistics (global or default MPLS statistics and auxiliary statistics) are independent; clearing one counter does not affect the values of the other.

For both types of statistics, implicit null on ingress is not regarded as labeled traffic and octet counts include L2 headers and trailers.

Segment Routing traffic statistics have a dependency with the ability to account for dark bandwidth in IGP-TE advertisements.

2.3. MPLS Transport Profile

MPLS can be used to provide a network layer to support packet transport services. In some operational environments, it is desirable that the operation and maintenance of such an MPLS based packet transport network follow operational models typical in traditional optical transport networks (for example, SONET/SDH), while providing additional OAM, survivability and other maintenance functions targeted at that environment.

MPLS-TP defines a profile of MPLS targeted at transport applications. This profile defines the specific MPLS characteristics and extensions required to meet transport requirements, while retaining compliance to the standard IETF MPLS architecture and label switching paradigm. The basic requirements are architecture for MPLS-TP are described by the IETF in RFC 5654, RFC 5921, and RFC 5960, in order to meet two objectives:

  1. To enable MPLS to be deployed in a transport network and operated in a similar manner to existing transport technologies.
  2. To enable MPLS to support packet transport services with a similar degree of predictability to that found in existing transport networks.

In order to meet these objectives, MPLS-TP has a number of high level characteristics:

  1. It does not modify the MPLS forwarding architecture, which is based on existing pseudowire and LSP constructs. Point-to-point LSPs may be unidirectional or bi-directional. Bi-directional LSPs must be congruent (that is, co-routed and follow the same path in each direction). The system supports bidirectional co-routed MPLS-TP LSPs.
  2. There is no LSP merging.
  3. OAM, protection, and forwarding of data packets can operate without IP forwarding support. When static provisioning is used, there is no dependency on dynamic routing or signaling.
  4. LSP and pseudowire monitoring is only achieved through the use of OAM and does not rely on control plane or routing functions to determine the health of a path. For example, LDP hello failures do not trigger protection.
  5. MPLS-TP can operate in the absence of an IP control plane and IP forwarding of OAM traffic. MPLS-TP is only supported on static LSPs and PWs.

The system supports MPLS-TP on LSPs and PWs with static labels. MPLS-TP is not supported on dynamically signaled LSPs and PWs. MPLS-TP is supported for Epipe, Apipe, and Cpipe VLLs, and Epipe spoke-SDP termination on IES, VPRN and VPLS. Static PWs may use SDPs that use either static MPLS-TP LSPs or RSVP-TE LSPs.

The following MPLS-TP OAM and protection mechanisms, defined by the IETF, are supported:

  1. MPLS-TP Generic Associated Channel for LSPs and PWs (RFC 5586)
  2. MPLS-TP Identifiers (RFC 6370)
  3. Proactive CC, CV, and RDI using BFD for LSPs (RFC 6428)
  4. On-Demand CV for LSPs and PWs using LSP Ping and LSP Trace (RFC 6426)
  5. 1-for-1 Linear protection for LSPs (RFC 6378)
  6. Static PW Status Signaling (RFC 6478)

The system can play the role of an LER and an LSR for static MPLS-TP LSPs, and a PE/T-PE and an S-PE for static MPLS-TP PWs. It can also act as a S-PE for MPLS-TP segments between an MPLS network that strictly follows the transport profile, and an MPLS network that supports both MPLS-TP and dynamic IP/MPLS.

2.3.1. MPLS-TP Model

Figure 7 shows a high level functional model for MPLS-TP in SR OS. LSP A and LSP B are the working and protect LSPs of an LSP tunnel. These are modeled as working and protect paths of an MPLS-TP LSP in SR OS. MPLS-TP OAM runs in-band on each path. 1:1 linear protection coordinates the working and protect paths, using a protection switching coordination protocol (PSC) that runs in-band on each path over a Generic Associated Channel (G-ACh) on each path. Each path can use either an IP numbered, IP unnumbered, or MPLS-TP unnumbered (that is, non-IP) interface.

Figure 7:  MPLS-TP Model

All MPLS-TP LSPs are bidirectional co-routed, as detailed in RFC5654. That is, the forward and backward directions follow the same route (in terms of links and nodes) across the network. Both directions are set up, monitored and protected as a single entity. Therefore, both ingress and egress directions of the same LSP segment are associated at the LER and LSR and use the same interface (although this is not enforced by the system).

In the above model, an SDP can use one MPLS-TP LSP. This abstracts the underlying paths towards the overlying services, which are transported on pseudowires. Pseudowires are modeled as spoke-SDPs and can also use MPLS-TP OAM. PWs with static labels may use SDPs that, in turn, use either signaled RSVP-TE LSPs or one static MPLS-TP LSP.

2.3.2. MPLS-TP Provider Edge and Gateway

This section describes some example roles for the system in an MPLS-TP network.

2.3.2.1. VLL Services

The system may use MPLS TP LSPs, and PWs, to transport point to point virtual leased line services. The router may play the role of a terminating PE or switching PE for VLLs. Epipe, Apipe, and Cpipe VLLs are supported.

Figure 8 illustrates the use of the system as a T-PE for services in an MPLS-TP domain, and as a S-PE for services between an MPLS-TP domain and an IP/MPLS domain. Static PWs with MPLS-TP identifiers, originating in the MPLS-TP network, are transported over static MPLS-TP LSPs. These either terminate on a local SAP on the system, or are switched to another PW segment across the IP/MPLS network. The PW segment in the IP/MPLS network may have static labels or be signaled using T-LDP.

Figure 8:  MPLS-TP Provider Edge and Gateway, VLL Services

2.3.2.2. Spoke-SDP Termination

Figure 9 and Figure 10 illustrate the model for spoke SDP termination on VPLS and IES/VPRN services, respectively. Similar to the VLL case, the static MPLS-TP PW may terminate on an interface belonging to the service on the router at the border between the MPLS-TP and IP/MPLS networks, or be switched to another PW segment to be terminated on a remote PE.

Figure 9:  MPLS-TP Provider Edge and Gateway, spoke-SDP Termination on VPLS
Figure 10:  MPLS-TP Provider Edge and Gateway, spoke-SDP Termination on IES/VPRN

2.3.3. MPLS-TP LSR

The SR OS MPLS-TP LSR model is illustrated in MPLS-TP LSR. The system is able to swap a statically configured LSP label on an ingress path to a statically configured LSP label on an egress path. Bidirectional co-routed MPLS TP LSPs are supported by configuring the forward and reverse paths of the LSP to use the same ports on ingress and egress.

Figure 11:  MPLS-TP LSR

2.3.4. Detailed Descriptions of MPLS-TP

2.3.4.1. MPLS-TP LSPs

SR OS supports the configuration of MPLS-TP tunnels, which comprise a working and, optionally, a protect LSP. In SR OS, a tunnel is referred to as an LSP, while an MPLS-TP LSP is referred to as a path. It is then possible to bind an MPLS-TP tunnel to an SDP.

MPLS-TP LSPs (that is, paths) with static labels are supported. MPLS-TP is not supported for signaled LSPs.

Both bidirectional associated (where the forward and reverse directions of a bidirectional LSP are associated at a given LER, but may take different routes through the intervening network) and bidirectional co-routed (where the forward and reverse directions of the LSP are associated at each LSR, and take the same route through the network) are possible in MPLS-TP. However, only bidirectional co-routed LSPs are supported.

It is possible to configure MPLS-TP identifiers associated with the LSP, and MPLS-TP OAM parameters on each LSP of a tunnel. MPLS-TP protection is configured for a tunnel at the level of the protect path level. Both protection and OAM configuration is managed via templates, in order to simplify provisioning for large numbers of tunnels.

The router may play the role of either an LER or an LSR.

2.3.4.2. MPLS-TP on Pseudowires

MPLS-TP is supported on PWs with static labels. The provisioning model supports RFC6370-style PW path identifiers for MPLS-TP PWs.

MPLS-TP PWs reuse the static PW provisioning model of previous SR OS releases. Including the use of the PW-switching key work to distinguish an S-PE. Therefore, the primary distinguishing feature for an MPLS-TP PW is the ability to configure MPLS-TP PW path identifiers, and to support MPLS-TP OAM and static PW status signaling.

The system can perform the role of a T-PE or an S-PE for a PW with MPLS-TP.

A spoke-SDP with static PW labels and MPLS-TP identifiers and OAM capabilities can use an SDP that uses either an MPLS-TP tunnel, or that uses regular RSVP-TE LSPs. The control word is supported for all MPLS-TP PWs.

2.3.5. MPLS-TP Maintenance Identifiers

MPLS-TP is designed for use both with, and without, a control plane. MPLS-TP therefore specifies a set of identifiers that can be used for objects in either environment. This includes a path and maintenance identifier architecture comprising Node, Interface, PW and LSP identifiers, Maintenance Entity Groups (MEGs), Maintenance End Points (MEPs) and Maintenance Intermediate Points (MIPs). These identifiers are specified in RFC6370.

MPLS-TP OAM and protection switching operates within a framework that is designed to be similar to existing transport network maintenance architectures. MPLS-TP introduces concept of maintenance domains to be managed and monitored. In these, Maintenance Entity Group End Points (MEPs) are edges of a maintenance domain. OAM of a maintenance level must not leak beyond corresponding MEP and so MEPs typically reside at the end points of LSPs and PWs. Maintenance Intermediate Points (MIPS) define intermediate nodes to be monitored. Maintenance Entity Groups (MEGs) comprise all the MEPs and MIPs on an LSP or PW.

Figure 12:  MPLS-TP Maintenance Architecture

Both IP-compatible and ICC (ITU-T carrier code) based identifiers for the above objects are specified in the IETF, but only the IP-compatible identifiers defined in RFC6370 are supported.

SR OS supports the configuration of the following node and interface related identifiers:

  1. Global_ID: this is similar to the global ID that can be configured for Dynamic MS-PWs. However, in MPLS-TP this should be set to the AS# of the node. If not explicitly configured, then it assumes the default value of 0. In SR OS, the source Global ID for an MPLS-TP Tunnel is taken to be the Global ID configured at the LER. The destination Global ID is optional in the tunnel configuration. If it is not configured, then it is taken as the same as the source Global ID.
  2. Node_ID: This is a 32-bit value assigned by the operator within the scope of the Global_ID. The system supports the configuration of an IPv4 formatted address <a.b.c.d> or an unsigned 32-bit integer for the MPLS-TP Node ID at each node. The node ID must be unique within the scope of the global ID, but there is no requirement for it to be a valid routable IP address. Indeed, a node-id can represent a separate IP-compatible addressing space that may be separate from the IP addressing plan of the underlying network. If no node ID is configured, then the node ID is taken to be the system interface IPv4 address of the node. When configuring a tunnel at an LER, either an IPv4 or an unsigned integer Node ID can be configured as the source and destination identifiers, but both ends must be of the same type.
  3. IF_ID: This is an MPLS-TP section layer identifier at the MPLS interface level. On the router, this is used to provide an identifier for the LSP-Trace DSMAP when an IP identifier is not available. The IF_ID is a 64-bit identifier of an MPLS-TP interface on a node that is unique within the scope of a Global_ID. It is composed of the Node_ID and the IF_Num. The IF_Num is a node-wide unique identifier for an MPLS-TP interface. On the router, this is primarily used for supporting the DSMAP TLV in LSP Trace using MPLS-TP identifiers with unnumbered MPLS-TP interfaces.

Statically configured LSPs are identified using GMPLS-compatible identifiers with the addition of a Tunnel_Num and LSP_Num. As in RSVP-TE, tunnels represent, for example, a set of working and protect LSPs. These are GMPLS-compatible because GMPLS chosen by the IETF as the control plane for MPLS-TP LSPs, although this is not supported in Release 11.0 of the software. PWs are identified using a PW Path ID which has the same structure as FEC129 AII Type 2.

SR OS derives the identifiers for MEPs and MIPs on LSPs and PWs based on the configured identifiers for the MPLS-TP Tunnel, LSP or PW Path ID, for use in MPLS-TP OAM and protection switching, as per RFC6370.

The information models for LSPs and PWs are illustrated in Figure 13 and Figure 14. The figures use the terminology defined in RFC6370.

Figure 13:  MPLS-TP LSP and Tunnel Information Model

The MPLS-TP Tunnel ID and LSP ID are not to be confused with the RSVP-TE tunnel id implemented on the router system. Table 5 shows how these map to the X and Y ends of the tunnel shown in Figure 13 for the case of co-routed bidirectional LSPs.

Table 5:  Mapping from RSVP-TE to MPLS-TP Maintenance Identifiers

RSVP-TE Identifier

MPLS-TP Maintenance Identifier

Tunnel Endpoint Address

Node ID (Y)

Tunnel ID (X)

Tunnel Num (X)

Extended Tunnel ID

Node ID (X)

Tunnel Sender Address

Node ID (X)

LSP ID

LSP Num

Figure 14:  MPLS-TP PW Information Model

In the PW information model shown in Figure 14, the MS-PW is identified by the PW Path ID that is composed of the full AGI:SAII:TAII. The PW Path ID is also the MEP ID at the T-PEs, so a user does not have to explicitly configure a MEP ID; it is automatically derived by the system. For MPLS-TP PWs with static labels, although the PW is not signaled end-to-end, the directionality of the SAII and TAII is taken to be the same as for the equivalent label mapping message that is from downstream to upstream. This is to maintain consistency with signaled pseudowires using FEC 129.

On the system, an S-PE for an MS-PW with static labels is configured as a pair of spoke SDPs bound together in an VLL service using the VC-switching command. Therefore, the PW Path ID configured at the spoke SDP level at an S-PE must contain the Global-ID, Node-ID and AC-ID at the far end T-PEs, not the local S-PE. The ordering of the SAII:TAII in the PW Path ID where static PWs are used should be consistent with the direction of signaling of the egress label to a spoke SDP forming that segment, if that label were signaled using T-LDP (in downstream unsolicited mode). VCCV Ping will check the PW ID in the VCCV Ping echo request message against the configured PW Path ID for the egress PW segment.

Figure 15 shows an example of how the PW Path IDs can be configured for a simple two-segment MS-PW.

Figure 15:  Example usage of PW Identifiers

2.3.5.1. Generic Associated Channel

MPLS-TP requires that all OAM traffic be carried in-band on both directions of an LSP or PW. This is to ensure that OAM traffic always shares fate with user data traffic. This is achieved by using an associated control channel on an LSP or PW, similar to that used today on PWs. This creates a channel, which is used for OAM, protection switching protocols (for example, LSP linear protection switching coordination), and other maintenance traffic., and is known as the Generic Associated Channel (G-ACh).

RFC5586 specifies mechanisms for implementing the G-ACh, relying on the combination of a reserved MPLS label, the Generic-ACH Label (GAL), as an alert mechanism (value=13) and Generic Associated Channel Header (G-ACH) for MPLS LSPs, and using the Generic Associated Channel Header, only, for MPLS PWs (although the GAL is allowed on PWs). The purpose of the GAL is to indicate that a G-ACH resides at the bottom of the label stack, and is only visible when the bottom non-reserved label is popped. The G-ACH channel type is used to indicate the packet type carried on the G-ACh. Packets on a G-ACh are targeted to a node containing a MEP by ensuring that the GAL is pushed immediately below the label that is popped at the MEP (for example, LSP endpoint or PW endpoint), so that it can be inspected as soon as the label is popped. A G-ACh packet is targeted to a node containing a MIP by setting the TTL of the LSP or PW label, as applicable, so that it expires at that node, in a similar manner to the SR OS implementation of VCCV for MS-PWs.

Figure 16:  Label for LSP and PW G-ACh Packets

The system supports the G-ACh on static pseudowires and static LSPs.

2.3.5.2. MPLS-TP Operations, Administration and Maintenance (OAM)

This section details the MPLS-TP OAM mechanisms that are supported.

2.3.5.2.1. On-Demand Connectivity Verification (CV) using LSP-Ping

MPLS–TP supports mechanisms for on demand CC/CV as well as route tracing for LSPs and PWs. These are required to enable an operator to test the initial configuration of a transport path, or to assist with fault isolation and diagnosis. On demand CC/CV and route tracing for MPLS-TP is based on LSP-Ping and is described in RFC6426. Three possible encapsulations are specified in that RFC:

  1. IP encapsulation, using the same label stack as RFC4379, or encapsulated in the IPv4 G-ACh channel with a GAL/ACH
  2. and non-IP encapsulation with GAL/ACH for LSPs and ACH for PWs.

In IP-encapsulation, LSP-Ping packets are sent over the MPLS LSP for which OAM is being performed and contain an IP/UDP packet within them. The On-demand CV echo response message is sent on the reverse path of the LSP, and the reply contains IP/UDP headers followed by the On-demand CV payload.

In non-IP environments, LSP ping can be encapsulated with no IP/UDP headers in a G-ACh and use a source address TLV to identify the source node, using forward and reverse LSP or PW associated channels on the same LSP or PW for the echo request and reply packets. In this case, no IP/UDP headers are included in the LSP-Ping packets.

The routers support the following encapsulations:

  1. IP encapsulation with ACH for PWs (as per VCCV type 1).
  2. IP encapsulation without ACH for LSPs using labeled encapsulation
  3. Non-IP encapsulation with ACH for both PWs and LSPs.

LSP Ping and VCCV Ping for MPLS-TP use two new FEC sub-types in the target FEC stack in order to identify the static LSP or static PW being checked. These are the Static LSP FEC sub-type, which has the same format as the LSP identifier described above, and the Static PW FEC sub-type,. These are used in-place of the currently defined target FEC stack sub-TLVs.

In addition, MPLS-TP uses a source/destination TLV to carry the MPLS-TP global-id and node-id of the target node for the LSP ping packet, and the source node of the LSP ping packet.

LSP Ping and VCCV-Ping for MPLS-TP can only be launched by the LER or T-PE. The replying node therefore sets the TTL of the LSP label or PW label in the reply packet to 255 to ensure that it reaches the node that launched the LSP ping or VCCV Ping request.

Downstream Mapping Support

RFC 4379 specifies four address types for the downstream mapping TLV for use with IP numbered and unnumbered interfaces, as listed in Table 6:

Table 6:  Downstream Mapping (RFC 4379)

Type #

Address Type

K Octets

Reference

1

IPv4 Numbered

16

RFC 4379

2

IPv4 Unnumbered

16

3

IPv6 Numbered

40

4

IPv6 Unnumbered

28

RFC 6426 adds address type 5 for use with Non IP interfaces, including MPLS-TP interfaces. In addition, this RFC specifies that type 5 must be used when non-IP ACH encapsulation is used for LSP Trace.

It is possible to send and respond to a DSMAP/DDMAP TLV in the LSP Trace packet for numbered IP interfaces as per RFC4379. In this case, the echo request message contains a downstream mapping TLV with address type 1 (IPv4 address) and the IPv4 address in the DDMAP/DSMAP TLV is taken to be the IP address of the IP interface that the LSP uses. The LSP trace packet therefore contains a DSMAP TLV in addition to the MPLS-TP static LSP TLV in the target FEC stack.

DSMAP/DDMAP is not supported for pseudo wires.

2.3.5.2.2. Proactive CC, CV and RDI

Proactive Continuity Check (CC) is used to detect a loss of continuity defect (LOC) between two MEPs in a MEG. Proactive Connectivity Verification (CV) is used to detect an unexpected connectivity defect between two MEPs (for example, mis-merging or mis-connection), as well as unexpected connectivity within the MEG with an unexpected MEP. This feature implements both functions using proactive generation of OAM packets by the source MEP that are processed by the peer sink MEP. CC and CV packets are always sent in-band such that they fate share with user traffic, either on an LSP, PW or section and are used to trigger protection switching mechanisms.

Proactive CC/CV based on bidirectional forwarding detection (BFD) for MPLS-TP is described in RFC6428. BFD packets are sent using operator configurable timers and encapsulated without UDP/IP headers on a standardized G-ACh channel on an LSP or PW. CC packets simply consist of a BFD control packet, while CV packets also include an identifier for the source MEP in order that the sink MEP can detect if it is receiving packets from an incorrect peer MEP, indicating a mis-connectivity defect. Other defect types (including period mis-configuration defect) should be supported. When a supported defect is detected, an appropriate alarm is generated (for example, log, SNMP trap) at the receiving MEP and all traffic on the associated transport path (LSP or PW) is blocked. This is achieved using linear protection for CC defects, and by blocking the ingress data path for CV defects. The system supports both a CC-only mode and a combine CC / CV mode, as defined in RFC6428.

When an LSP with CV is first configured, the LSP is held in the CV defect state for 3.5 seconds after the first valid CV packet is received.

Figure 17:  BFD used for proactive CC on MPLS-TP LSP
Figure 18:  BFD used for proactive CV on MPLS-TP LSP

Linear protection switching of LSPs (see below) is triggered based on a CC or CV defect detected by BFD CC/CV.

RFC6428 defines two BFD session modes: Coordinated mode, in which the session state on both directions of the LSP is coordinated and constructed from a single, bidirectional BFD session, and independent mode, in which two independent sessions are bound together at a MEP. Coordinated mode is supported.

BFD is supported on MPLS-TP LSPs. When BFD_CV detects a mis-connectivity on an LSP, the system will drop all incoming non-OAM traffic with the LSP label (at the LSP termination point) instead of forwarding it to the associated SAP or PW segment.

The following GACh channel types are supported for the combined CC/CV mode:

  1. 0x22 for BFD CC with no IP encapsulation
  2. 0x23 for BFD CV

The following G-ACh channel types are used for the CC-only mode:

  1. 0x07

2.3.5.2.3. BFD-based RDI

RDI provides a mechanism whereby the source MEP can be informed of a downstream failure on an LSP, and can either raise an alarm, or initiate a protection switching operation. In the case of BFD based CC/CV, RDI is communicated using the BFD diagnostic field in BFD CC/CV messages. The following diagnostic codes are supported:

1 - Control Detection Time Expired

9 - mis-connectivity defect

2.3.5.3. PW Control Channel Status Notifications (Static Pseudowire Status Signaling)

MPLS-TP introduces the ability to support a full range of OAM and protection / redundancy on PWs for which no dynamic T-LDP control plane exists. Static PW status signaling is used to advertise the status of a PW with statically configured labels by encapsulating the PW status TLV in a G-ACh on the PW. This mechanism enables OAM message mapping and PW redundancy for such PWs, as defined in RFC6478. This mechanism is known as control channel status signaling in SR OS.

PW control channel status notifications use a similar model to T-LDP status signaling. That is, in general, status is always sent to the nearest neighbor T-PE or S-PE and relayed to the next segment by the S-PE. To achieve this, the PW label TTL is set to 1 for the G-ACh packet containing the status message.

Control channel status notifications are disabled by default on a spoke-SDP. If they are enabled, then the default refresh interval is set to zero (although this value should be configurable in CLI). That is, when a status bit changes, three control channel status packets are sent consecutively at one-second intervals, and then the transmitter will fall silent. If the refresh timer interval is non-zero, then status messages will continue to be sent at that interval. The system supports the configuration of a refresh timer of 0, or from 10-65535 seconds. The recommended value is 600 seconds.

The system supports the optional acknowledgment of a PW control channel status message.

In order to constrain the CPU resources consumed processing control channel status messages, the system implements a credit-based mechanism. If a user enables control channel status on a PW[n], then a certain number of credits c_n are consumed from a CPM-wide pool of max_credit credits. The number of credits consumed is inversely proportional to the configured refresh timer (the first three messages at 1 second interval do not count against the credit). If the current_credit <= 0, then control channel status signaling cannot be configured on a PW (but the PW can still be configured and no shutdown).

If a PE with a non-zero refresh timer configured does not receive control channel status refresh messages for 3.5 time the specified timer value, then by default it will time out and assume a PW status of zero.

A trap is generated if the refresh timer times-out.

If PW redundancy is configured, the system will always consider the literal value of the PW status; a time-out of the refresh timer will not impact the choice of the active transit object for the VLL service. The result of this is that if the refresh timer times-out, and a given PW is currently the active PW, then the system will not fail-over to an alternative PW if the status is zero and some lower-layer OAM mechanism; for example, BFD has not brought down the LSP due to a connectivity defect. It is recommended that the PW refresh timer be configured with a much longer interval than any proactive OAM on the LSP tunnel, so that the tunnel can be brought down before the refresh timer expires if there is a CC defect.

A unidirectional continuity fault on a RSVP TE LSP may not result in the LSP being brought down before the received PW status refresh timer expires. It is therefore recommended that either bidirectional static MPLS-TP LSPs with BFD CC, or additional protection mechanisms; for example, FRR be used on RSVP-TE LSPs carrying MPLS-TP PWs. This is particularly important in active/standby PW dual homing configurations, where the active / standby forwarding state or operational state of every PW in the redundancy set must be accurately reflected at the redundant PE side of the configuration.

A PW with a refresh timer value of zero is always treated as having not expired.

The system implements a hold-down timer for control-channel-status PW-status bits in order to suppress bouncing of the status of a PW. For a specific spoke-SDP, if the system receives 10 PW-status change events in 10 seconds, the system will hold-down the spoke-SDP on the local node with the last received non-zero PW-status bits for 20 seconds. It will update the local spoke with the most recently received PW-status. This hold down timer is not persistent across shutdown/no-shutdown events.

2.3.5.4. PW Control Channel Status Request Mechanism

The system implements an optional PW control channel status request mechanism. This enhances the existing control channel status mechanism so that a peer that has stale PW status for the far-end of a PW can request that the peer PE send a static PW status update. Accurate and current information about the far end status of a PW is important for proper operation of PW redundancy. This mechanism ensures a consistent view of the control plane is maintained, as far as possible, between peer nodes. It is not intended to act as a continuity check between peer nodes.

2.3.5.5. Pseudowire Redundancy and Active / Standby Dual Homing

PW redundancy is supported for static MPLS-TP pseudowires. However, instead of using T-LDP status signaling to signal the forwarding state of a PW, control channel status signaling is used.

The following PW redundancy scenarios must be supported:

  1. MC-LAG and MC-APS with single and multi-segment PWs interconnecting the PEs.
  2. MS-PW (S-PE) Redundancy between VLL PEs with single-homed CEs.
  3. Dual-homing of a VLL service into redundant IES or VPRN PEs, with active/standby PWs.
  4. Dual-homing of a VLL service into a VPLS with active/standby PWs.

Active/standby dual-homing into routed VPLS is not supported in for MPLS-TP PWs. This is because it relies on PW label withdrawal of the standby PW in order to take down the VPLS instance, and hence the associated IP interface. Instead, it is possible to enable BGP multi-homing on a routed VPLS that has MPLS-TP PWs as spokes, and for the PW status of each spoke-SDP to be driven (using control channel status) from the active or standby forwarding state assigned to each PW by BGP.

It is possible to configure inter-chassis backup (ICB) PWs as static MPLS-TP PWs with MPLS-TP identifiers. Only MPLS-TP PWs are supported in the same endpoint. That is, PWs in an endpoint must either be all MPLS-TP, or none of them must be MPLS-TP. This implies that an ICB used in an endpoint for which other PWs are MPLS TP must also be configured as an MPLS-TP PW.

A failover to a standby pseudowire is initiated based on the existing supported methods (for example, failure of the SDP).

2.3.5.6. Lock Instruct and Loopback for MPLS-TP Pseudowires

On the 7750 SR and 7450 ESS, the MPLS-TP supports lock instruct and loopback for PWs, including the ability to:

  1. administratively lock a spoke SDP with MPLS-TP identifiers
  2. divert traffic to and from an external device connected to a SAP
  3. create a data path loopback on the corresponding PW at a downstream S-PE or T-PE that was not originally bound to the spoke SDP being tested
  4. forward test traffic from an external test generator into an administratively locked PW, while simultaneously blocking the forwarding of user service traffic

MPLS-TP provides the ability to conduct test service throughput for PWs, through the configuration of a loopback on an administratively locked pseudowire. To conduct a service throughput test, an administrative lock is applied at each end of the PW. A test service that contains the SAP connected to the external device is used to inject test traffic into the PW. Lock request messaging is not supported.

A lock can be applied using the CLI or NMS. The forwarding state of the PW can be either active or standby.

After the PW is locked it can be put into loopback mode (for two way tests) so the ingress data path in the forward direction is cross connected to the egress data path in the reverse direction of the PW. The loopback can be configured through the CLI or NMS.

The PW loopback is created at the PW level, so everything under the PW label is looped back. This distinguishes a PW loopback from a service loopback, where only the native service packets are looped back.

The following MPLS-TP loopback configuration is supported:

  1. An MPLS-TP loopback can be created for an epipe, cpipe or apipe VLL.
  2. Test traffic can be inserted at an epipe, cpipe or apipe VLL endpoint or at an epipe spoke-sdp termination on a VPLS interface.

For more information about configuring lock instruct and loopback for MPLS-TP Pseudowires see, the 7450 ESS, 7750 SR, 7950 XRS, and VSR Services Overview Guide and the 7450 ESS, 7750 SR, 7950 XRS, and VSR Layer 2 Services and EVPN Guide: VLL, VPLS, PBB, and EVPN.

2.3.5.7. MPLS-TP LSP Protection

Linear 1-for-1 protection of MPLS-TP LSPs is supported, as defined in RFC. This applies only to LSPs (not PWs).

This is supported edge-to-edge on an LSP, between two LERs, where normal traffic is transported either on the working LSP or on the protection LSP using a logical selector bridge at the source of the protected LSP.

At the sink LER of the protected LSP, the LSP that carries the normal traffic is selected, and that LSP becomes the working LSP. A protection switching coordination (PSC) protocol coordinates between the source and sink bridge, which LSP is used, as working path and protection path. The PSC protocol is always carried on a G-ACh on the protection LSP.

The system supports single-phased coordination between the LSP endpoints, in which the initiating LER performs the protection switchover to the alternate path and informs the far-end LER of the switch.

Bidirectional protection switching is achieved by the PSC protocol coordinating between the two end points to determine which of the two possible paths (that is the working or protect path), transmits user traffic at any given time.

It is possible to configure non-revertive or revertive behavior. For non-revertive, the LSP will not switch back to the working path when the PSC switchover requests end, while for revertive configurations, the LSP always returns back to the working path when the switchover requests end.

The following figures illustrate the behavior of linear protection in more detail.

Figure 19:  Normal Operation
Figure 20:  Failed Condition

In normal condition, user data packets are sent on the working path on both directions, from A to Z and Z to A.

A defect in the direction of transmission from node Z to node A impacts the working connection Z-to-A, and initiates the detection of a defect at the node A.

Figure 21:  Failed Condition - Switching at A
Figure 22:  Failed Condition - Switching at Z

The unidirectional PSC protocol initiates protection switching: the selector bridge at node A is switched to protection connection A-to-Z and the selector at node A switches to protection connection Z to-A. The PSC packet, sent from node A to node Z, requests a protection switch to node Z.

After node Z validates the priority of the protection switch request, the selector at node Z is switched to protection connection A-to-Z and the selector bridge at the node Z is switched to protection connection Z-to-A. The PSC packet, sent from node Z to node A, is used as acknowledge, informing node A about the switching.

If BFD CC or CC/CV OAM packets are used to detect defects on the working and protection paths, they are inserted on both working and protection paths. Packets are sent whether or not the path is selected as the currently active path. Linear protection switching is also triggered on receipt of an AIS with the LDI bit set.

The following operator commands are supported:

  1. Forced Switch
  2. Manual Switch
  3. Clear

2.3.6. Alarm Indication Signal (AIS)

When a MEP at a server layer (such as a link layer with respect to a given LSP) detects a failure, the server MEP notifies a co-located client layer of the condition. The client layer then generates Alarm Indication Signal (AIS) packets downstream in the client layer. These fault OAM messages are generated by intermediate nodes where a client LSP is switched, as per RFC 6427. This means that AIS packets are only inserted at an LSP MIP. AIS is used by the receiving MEP to suppress client layer traps caused by the upstream server layer failure; for example, if BFD CC is running on the LSP, then AIS will suppress the generation of multiple traps due to loss of CC.

Figure 23 illustrates an example of the operation of AIS in MPLS-TP.

Figure 23:  Example of AIS in MPLS-TP

In the example, a failure of the Ethernet link layer between PE1 and LSR1 is detected at LSR1, which raises a local trap. LSPs transiting the LSR may be running CC OAM, such as BFD, and have AIS packets injected into them at LSR1. These AIS messages are received by the corresponding downstream MEP and processed. The failure of the Ethernet link between PE1 and LSR1 means that CC OAM on the LSPs is not received by the MEPs at PE2. Normally, this would cause multiple traps to be raised at PE2, but the reception of AIS causes PE2 to suppress the local generation of traps related to the failed LSP.

For traps to be suppressed successfully, the AIS message must arrive and be processed at the far-end PE or LER in sufficient time for the initial alarm to be suppressed. Therefore, the router implements a 2.5 secs hold-down timer for such traps on MPLS-TP LSPs.

Fault management for MPLS-TP, including AIS, is specified in RFC 6427.

The router supports:

  1. receiving and processing of AIS messages at LSP MEPs (at the LER)
  2. generation of AIS messages at LSP MIPs (at the LSR) in response to a failure of the ingress link
  3. suppression of SNMP traps indicating changes in the state of a BFD session, which result from the failure of the LSP data path upstream of a receiving LER; these traps would otherwise be sent to the 5620 SAM
  4. suppression of any BFD state machine Up/Down changes that occur while AIS is being received; there is no buffering or storage of state machine changes that occur during this period. This suppression only applies to Up/Down state change traps; other traps that would be expected are observed as normal.
  5. inclusion of the Link Down Indication (LDI) in an AIS message. This triggers a switchover of LSP linear protection if used on the LSP.
  6. insertion of AIS in the downstream direction of the transit path if a unidirectional fault is detected at an LSR. This suppresses CC traps at the downstream LER. However, the BFD session will still go down, causing RDI to be sent upstream in BFD, which will cause an alarm at the upstream LER.

2.3.7. Configuring MPLS-TP

This section describes the steps required to configure MPLS-TP.

2.3.7.1. Configuration Overview

The following steps must be performed in order to configure MPLS-TP LSPs or PWs.

At the router LER and LSR:

  1. Create an MPLS-TP context, containing nodal MPLS-TP identifiers. This is configured under config>router>mpls>mpls-tp.
  2. Ensure that a sufficient range of labels is reserved for static LSPs and PWs. This range is configured under config>router>mpls-labels>static-label-range.
  3. Ensure that a range of tunnel identifiers is reserved for MPLS-TP LSPs under config>router>mpls-mpls-tp>tp-tunnel-id-range.
  4. A user may optionally configure MPLS-TP interfaces, which are interfaces that do not use IP addressing or ARP for next hop resolution. These can only be used by MPLS-TP LSPs.

At the router LER, configure:

  1. OAM Templates. These contain generic parameters for MPLS-TP proactive OAM. An OAM template is configured under config>router>mpls>mpls-tp>oam-template.
  2. BFD templates. These contain generic parameters for BFD used for MPLS-TP LSPs. A BFD template is configured under config>router>bfd>bfd-template.
  3. Protection templates. These contain generic parameters for MPLS-TP 1-for-1 linear protection. A protection template is configured under config>router>mpls>mpls-tp>protection-template.
  4. MPLS-TP LSPs are configured under config>router>mpls>lsp mpls-tp
  5. Pseudowires using MPLS-TP are configured as spoke SDPs with static PW labels.

At an LSR, a use must configure an LSP transit-path under config>router>mpls>mpls-tp>transit-path.

The following sections describe these configuration steps in more detail.

2.3.7.2. Node-Wide MPLS-TP Parameter Configuration

Generic MPLS-TP parameters are configured under config>router>mpls>mpls-tp. If a user configures no mpls, normally the entire MPLS configuration is deleted. However, in the case of MPLS-TP a check that there is no other MPLS-TP configuration; for example, services or tunnels using MPLS-TP on the node, is performed.

The MPLS-TP context is configured as follows:

config
   router
      mpls
         [no] mpls-tp
            . . .
            [no] shutdown

MPLS-TP LSPs may be configured if the MPLS-TP context is administratively down (shutdown), but they will remain down until the MPLS-TP context is configured as administratively up. No programming of the data path for an MPLS-TP path occurs until the following are all true:

  1. MPLS-TP context is no shutdown
  2. MPLS-TP LSP context is no shutdown
  3. MPLS-TP Path context is no shutdown

A shutdown of MPLS-TP will therefore bring down all MPLS-TP LSPs on the system.

The MPLS-TP context cannot be deleted if MPLS-TP LSPs or SDPs exist on the system.

2.3.7.3. Node-Wide MPLS-TP Identifier Configuration

MPLS-TP identifiers are configured for a node under the following CLI tree:

config
   router
     mpls
       mpls-tp
          global-id <global-id>
          node-id {<ipv4address> | | <1.. .4,294,967,295>}
          [no] shutdown
          exit

The default value for the global-id is 0. This is used if the global-id is not explicitly configured. If a user expects that inter domain LSPs are configured, then it is recommended that the global ID should be set to the local ASN of the node, as configured under config>system. If two-byte ASNs are used, then the most significant two bytes of the global-id are padded with zeros.

The default value of the node-id is the system interface IPv4 address. The MPLS-TP context cannot be administratively enabled unless at least a system interface IPv4 address is configured because MPLS requires that this value is configured.

These values are used unless overridden at the LSP or PW end-points, and apply only to static MPLS-TP LSPs and PWs.

In order to change the values, config>router>mpls>mpls-tp must be in the shutdown state. This will bring down all of the MPLS-TP LSPs on the node. New values are propagated to the system when a no shutdown is performed.

2.3.7.4. Static LSP and Pseudowire (VC) Label and Tunnel Ranges

The SR OS reserves a range of labels for use by static LSPs, and a range of labels for use by static pseudowires (SVCs) that is LSPs and pseudowires with no dynamic signaling of the label mapping. These are configured as follows:

config
   router
      mpls-labels
         [no] static-label max-lsp-labels <number>
static-svc-label <number>

<number>: indicates the maximum number of labels for the label type.

The minimum label value for the static LSP label starts at 32 and expands all the way to the maximum number specified. The static VC label range is contiguous with this. The dynamic label range exists above the static VC label range (the label ranges for the respective label type are contiguous). This prevents fragmentation of the label range.

The MPLS-TP tunnel ID range is configured as follows:

config
   router
      mpls
         mpls-tp
            [no] tp-tunnel-id-range <start-id> <end-id>

The tunnel ID range referred to here is a contiguous range of RSVP-TE Tunnel IDs is reserved for use by MPLS TP, and these IDs map to the MPLS-TP Tunnel Numbers. There are some cases where the dynamic LSPs may have caused fragmentation to the number space such that contiguous range {max-min} is not available. In these cases, the command will fail.

There is no default value for the tunnel id range, and it must be configured to enable MPLS-TP.

If a configuration of the tunnel ID range fails, then the system will give a reason. This could be that the initially requested range, or the change to the allocated range, is not available that is tunnel IDs in that range have already been allocated by RSVP-TE. Allocated Tunnel IDs are visible using a show command.

Changing the LSP or static VC label ranges does not require a reboot.

The static label ranges for LSPs, above, apply only to static LSPs configured using the CLI tree for MPLS-TP specified in this section. Different scalability constraints apply to static LSPs configured using the following CLI introduced in earlier SR OS releases:

config>router>mpls>static-lsp

config>router>mpls>if>label-map

The scalability applying to labels configured using this CLI is enforced as follows:

  1. A maximum of 1000 static LSP names may be configured with a PUSH operation.
  2. A maximum of 1000 LSPs with a POP or SWAP operation may be configured.

These two limits are independent of one another, giving a combined limit of 1000 PUSH and 1000 POP/SAP operations configured on a node.

The static LSP and VC label spaces are contiguous. Therefore, the dimensioning of these label spaces requires careful planning by an operator as increasing the static LSP label space impacts the start of the static VC label space, which may already-deployed

2.3.7.5. Interface Configuration for MPLS-TP

It is possible for MPLS-TP paths to use both numbered IP numbered interfaces that use ARP/static ARP, or IP unnumbered interfaces. MPLS-TP requires no changes to these interfaces. It is also possible to use a new type of interface that does not require any IP addressing or next-hop resolution.

RFC 7213 provides guidelines for the usage of various Layer 2 next-hop resolution mechanisms with MPLS-TP. If protocols such as ARP are supported, then they should be used. However, in the case where no dynamic next hop resolution protocol is used, it should be possible to configure a unicast, multicast or broadcast next-hop MAC address. The rationale is to minimize the amount of configuration required for upstream nodes when downstream interfaces are changes. A default multicast MAC address for use by MPLS-TP point-to-point LSPs has been assigned by IANA (Value: 01-00-5e-90-00-00). This value is configurable on the router to support interoperability with third-party implementations that do not default to this value, and this no default value is implemented on the router.

In order to support these requirements, a new interface type, known as an unnumbered MPLS-TP interface is introduced. This is an unnumbered interface that allows a broadcast or multicast destination MAC address to be configured. An unnumbered MPLS-TP interface is configured using the unnumbered-mpls-tp keyword, as follows:

config
   router
      interface <if-name> [unnumbered-mpls-tp]
         port <port-id>[:encap-val]
         mac <local-mac-address>
         static-arp <remote-mac-addr>
         //ieee-address needs to support mcast and bcast
                  exit

The remote-mac-address may be any unicast, broadcast of multicast address. However, a broadcast or multicast remote-mac-address is only allowed in the static-arp command on Ethernet unnumbered interfaces when the unnumbered-mpls-tp keyword has been configured. This also allows the interface to accept packets on a broadcast or any multicast MAC address. If a packet is received with a unicast destination MAC address, then it is checked against the configured <local-mac-address> for the interface, and dropped if it does not match. When an interface is of type unnumbered-mpls-tp, only MPLS-TP LSPs are allowed on that interface; other protocols are blocked from using the interface.

An unnumbered MPLS-TP interface is assumed to be point-to-point, and therefore users must ensure that the associated link is not broadcast or multicast in nature if a multicast or broadcast remote MAC address is configured.

The following is a summary of the constraints of an unnumbered MPLS-TP interface:

  1. It is unnumbered and may borrow/use the system interface address
  2. It prevents explicit configuration of a borrowed address
  3. It prevents IP address configuration
  4. It prevents all protocols except mpls
  5. It prevents deletion if an MPLS-TP LSP is bound to the Interface

MPLS-TP is only supported over Ethernet ports. The system will block the association of an MPLS-TP LSP to an interface whose port is non-Ethernet.

If required, the IF_Num is configured under a MEP context under the MPLS interface. The mpls-tp-mep context is created under the interface as shown below. The if-num parameter, when concatenated with the Node ID, forms the IF_ID (as per RFC 6370), which is the identifier of this MEP. It is possible to configure this context whether the interface is IP numbered, IP unnumbered, or MPLS-TP unnumbered:

config
   router
     mpls
      interface <ip-int-name>
          mpls-tp-mep
            [no] ais-enable
            [no] if-num <if-num>
            [no] if-num-validation [enable | disable]
                    ...
 exit

The if-num-validation command is used to enable or disable validation of the if-num in LSP Trace packet against the locally configured if-num for the interface over which the LSP Trace packet was received at the egress LER. This is because some implementations do not perform interface validation for unnumbered MPLS-TP interfaces and instead set the if-num in the DSMAP TLV to 0. The default is enabled.

AIS insertion is configured using the ais-enable command under the mpls-tp-mep context on an MPLS interface.

2.3.7.6. LER Configuration for MPLS-TP

2.3.7.6.1. LSP and Path Configuration

MPLS-TP tunnels are configured using the mpls-tp LSP type at an LER under the LSP configuration, using the following CLI tree:

config
   router
      mpls
         lsp <xyz> [bypass-only | p2mp-lsp | mpls-tp <src-tunnel-num>]
            to node-id {<a.b.c.d> | <1.. .4,294,967,295>}
            dest-global-id <global-id>
             dest-tunnel-number <tunnel-num>
             [no] working-tp-path
                lsp-num <lsp-num>
                in-label <in-label>
                out-label <out-label> out-link <if-name>
                          [next-hop <ipv4-address>]
                [no] mep
                   [no] bfd-enable [cc | cc-cv]
                   [no] bfd-trap-suppression
                   [no] oam-template <name>
                   [no] shutdown
                   exit
                [no] shutdown
                exit
             [no] protect-tp-path
                lsp-num <lsp-num>
                in-label <in-label>
                out-label <out-label> out-link <if-name>
                          [next-hop <ipv4-address> ]
                [no] mep
                   [no] bfd-enable [cc | cc-cv]
                   [no] bfd-trap-suppression
                   [no] oam-template <name>
                   [no] protection-template <name>
                   [no] shutdown
                   exit
                [no] shutdown
                exit

<if-name> could be numbered or unnumbered interface using an Ethernet port.

<src-tunnel-num> is a mandatory create time parameter for mpls-tp tunnels, and has to be assigned by the user based on the configured range of tunnel ids. The src-global-id used for the LSP ID is derived from the node-wide global-id value configured under config>router>mpls>mpls-tp. A tunnel can not be brought up unless the global-id is configured.

The from address of an LSP to be used in the tunnel identifier is taken to be the local node’s node-id/global-id, as configured under config>router>mpls>mpls-tp. If that is not explicitly configured, either, then the default value of the system interface IPv4 address is used

The to node-id address may be entered in 4-octet IPv4 address format or unsigned 32-bit format. This is the far-end node-id for the LSP, and does do need to be routable IP addresses.

The from and to addresses are used as the from and to node-id in the MPLS-TP Tunnel Identifier used for the MEP ID.

Each LSP consists of a working-tp-path and, optionally, a protect-tp-path. The protect-tp-path provides protection for the working-tp-path is 1:1 linear protection is configured (see below). Proactive OAM, such as BFD, is configured under the MEP context of each path. Protection for the LSP is configured under the protect-tp-path MEP context.

The to global-id is an optional parameter. If it is not entered, then the destination global ID takes the default value of 0. Global ID values of 0 are allowed and indicate that the node’s configured Global ID should be used. If the local global ID value is 0, then the remote to global ID must also be 0. The to global ID value cannot be changed if an LSP is in use by an SDP.

The to tunnel number is an optional parameter. If it is not entered, then it is taken to be the same value as the source tunnel number.

LSPs are assumed to be bidirectional and co-routed. Therefore, the system will assume that the incoming interface is the same as the out-link.

The next-hop ip-address can only be configured if the out-link if-name refers to a numbered IP interface. In this case, the system will determine the interface to use to reach the configured next-hop, but will check that the user-entered value for the out-link corresponds to the link returned by the system. If they do not correspond, then the path will not come up. If a user changes the physical port referred to in the interface configuration, BFD—if configured on the LSP—will go down. Users must ensure that an LSP is moved to a different interface with a different port configuration in order to change the port that it uses. This is enforced by blocking the next-hop configuration for an unnumbered interface.

There is no check made that a valid ARP entry exists before allowing a path to be un shut. Therefore, a path will only be held down if BFD is down. If static ARP is not configured for the interface, then it is assumed that dynamic ARP is used. The result is that if BFD is not configured, a path can come up before ARP resolution has completed for an interface. If BFD is not used, then it is recommended that the connectivity of the path is explicitly checked using on-demand CC/CV prior to sending user traffic on it.

The following is a list of additional considerations for the configuration of MPLS-TP LSPs and paths:

  1. The working-tp-path must be configured before the protect-tp-path.
  2. Likewise, the protect-tp-path has to be deleted first before the working-tp-path.
  3. The lsp-num parameter is optional. The default values are 1 for the working-tp-path and 2 for protect-tp-path.
  4. The mep context must be deleted before a path can be deleted.
  5. An MPLS interface needs to be created under config>router>mpls>interface before using/specifying the out-label/out-link in the Forward path for an MPLS-TP LSP. Creation of the LSP will fail if the corresponding mpls interface doesn't exist even though the specified router interface may be valid.
  6. The system will program the MPLS-TP LSP information upon a no shutdown of the TP-Path only on the very first no shutdown. The Working TP-Path is programmed as the Primary and the Protection TP-Path is programmed as the backup.
  7. The system will not deprogram the IOM on an admin shutdown of the MPLS-TP path. Traffic will gracefully move to the other TP-Path if valid, as determined by the proactive MPLS-TP OAM. This should not result in traffic loss. However it is recommended that the user does moves traffic to the other TP-Path through a tools command before doing 'admin shut' of an Active TP-Path.
  8. Deletion of the out-label/out-link sub-command under the MPLS-TP Path is not allowed once configured. These can only be modified.
  9. MPLS will allow the deletion of an 'admin shutdown' TP-Path. This will cause MPLS to deprogram the corresponding TP-Path forwarding information from IOM. This can cause traffic loss for certain users that are bound to the MPLS-TP LSP.
  10. MPLS will not deprogram the IOM on a specific interface admin shut/clear unless the interface is a System Interface. However, if mpls informs the TP-OAM module that the mpls interface has gone down, then it triggers a switch to the standby tp-path if the associated interface went down and if it is valid.
  11. If a MEP is defined and shutdown, the corresponding path is also operationally down. The MEP admin state is applicable only when a MEP is created from an MPLS-TP path.
  12. It is not mandatory to configure BFD or protection on an MPLS-TP path in order to bring the LSP up.
  13. If bfd-enable cc is configured, then CC-only mode using ACh channel 0x07 is used. If bfd-enable cc_v is configured, then BFD CC packets use channel 0x22 and CV packets use channel 0x23.
  14. Under the MEP context, the bfd-trap-suppression command allows the reception of AIS packets on the path to suppress BFD Down traps if a BFD session goes down on that path.

The protection template is associated with an LSP as a part of the MEP on the protect path. If only a working path is configured, then the protection template is not configured.

BFD cannot be enabled under the MEP context unless a named BFD template is configured.

2.3.7.6.2. Support for Downstream Mapping Information

In order to validate the downstream mapping for an LSP, a node sending a DSMAP TLV must include the incoming and (optionally) outgoing IF_Num values for the interfaces that it expects the LSP to transit. Additionally, it will include the out-label for the LSP in the Label TLV for the DSMAP in the echo request message.

The incoming and outgoing if-num values correspond to the incoming and outgoing interfaces transited by an LSP at the next hop LER and LSR are configured using the dsmap command, as follows:

config
   router
      mpls
         lsp
            working-tp-path
               mep
                 dsmap <in-if-num>[:<out-if-num>]

config
   router
      mpls
         lsp
            protect-tp-path
               mep
                  dsmap <in-if-num>[:<out-if-num>]


config
   router
      mpls
         mpls-tp
            transit-path
               forward-path
                  mip
                     dsmap <in-if-num>[:<out-if-num>]
                     exit
                reverse-path
                   mip
                      dsmap <in-if-num>[:<out-if-num>]
                      exit

A node sending a DSMAP TLV will include these in-if-num and out-if-num (if configured) values. Additionally, it will include the out-label for the LSP in the Label TLV for the DSMAP in the echo request message.

2.3.7.6.3. Proactive CC/CV (using BFD) Configuration

Generally applicable proactive OAM parameters are configured using templates.

Proactive CC and CV uses BFD parameters such as Tx/Rx timer intervals, multiplier and other session/fault management parameters which are specific to BFD. These are configured using a BFD Template. The BFD Template may be used for non-MPLS-TP applications of BFD, and therefore contains the full set of possible configuration parameters for BFD. Only a sub-set of these may be used for any given application.

Generic MPLS-TP OAM and fault management parameters are configured in the OAM Template.

Named templates are referenced from the MPLS-TP Path MEP configuration, so different parameter values are possible for the working and protect paths of a tunnel.

The BFD Template is configured as follows:

config
   router
      bfd
         [no] bfd-template <name>
            [no] transmit-interval <transmit-interval>
            [no] receive-interval <receive-interval>
            [no] echo-receive <echo-interval>
            [no] multiplier <multiplier>
            [no] type <cpm-np>
            exit

The parameters are as follows:

  1. transmit-interval transmit-interval and the rx receive-interval: These are the transmit and receive timers for BFD packets. If the template is used for MPLS-TP, then these are the timers used by CC packets. Values are in ms: 10 ms to 100 000 ms, with 1ms granularity. Default 10ms for CPM3 or better, 1 sec for other hardware. For MPLS-TP CV packets, a transmit interval of 1 s is always used.
  2. multiplier multiplier: Integer 3 to 20. Default: 3. This parameter is ignored for MPLS-TP combined cc-v BFD sessions, and the default of 3 used, as per RFC6428.
  3. echo-receive echo-interval: Sets the minimum echo receive interval (in ms), for a session. Values: 100 ms to 100 000 ms. Default: 100. This parameter is not used by a BFD session for MPLS-TP.
  4. type cpm-np: This selects the CPM network processor as the local termination point for the BFD session. This is enabled by default.

If the BFD timer values as shown above are changed in a template, any BFD sessions on MEPs to which that template is bound will try to renegotiate their timers to the new values.

Caution:

The BFD implementations in some MPLS-TP peer nodes may not be able handle renegotiation, as allowed by Section 3.7.1 of RFC6428, and may take the BFD session down. This can result in undesired behavior, such as an unexpected protection switching event. We recommend that users of the system exercise caution when modifying the BFD timer values after a BFD session is up.

Commands within the BFD-template use a begin-commit model. To edit any value within the BFD template, a begin needs to be executed once the template context has been entered. However, a value will still be stored temporarily until the commit is issued. Once the commit is issued, values will actually be used by other modules like the mpls-tp module and BFD module.

A BFD template is referenced from the OAM template. The OAM Template is configured as follows:

config
   router
      mpls
         mpls-tp
            [no] oam-template <name>
               [no] bfd-template <name>
               [no] hold-time-down <interval>
               [no] hold-time-up <interval>
            exit
  1. hold-time-down interval: 0-5000 deciseconds, 10ms steps, default 0. This is equivalent to the standardized hold-off timer.
  2. hold-time-up interval: 0-500 centiseconds in 100ms steps, default 2 seconds This is an additional timer that can be used to reduce BFD bouncing.
  3. bfd-template name: This is the named BFD template to use for any BFD sessions enabled under a MEP for which the OAM template is configured.

An OAM template is then applied to a MEP as described above.

2.3.7.6.4. Protection templates and Linear Protection Configuration

Protection templates defines the generally applicable protection parameters for an MPLS-TP tunnel. Only linear protection is supported, and so the application of a named template to an MPLS-TP tunnel implies that linear protection is used.

A template is configured as follows:

config
   router
      mpls
         mpls-tp
            protection-template <name>
              [no] revertive
               [no] wait-to-restore <interval>
               rapid-psc-timer <interval>
               slow-psc-timer <interval>
               exit

The allowed values are as follows:

  1. wait-to-restore interval: 0-720 seconds, 1 sec steps, default 300 seconds. This is applicable to revertive mode only.
  2. rapid-psc-timer interval: [10, 100, 1000ms]. Default 100ms
  3. slow-psc-timer interval: 5s-60s. Default: 5s
  4. revertive: Selects revertive behavior. Default: no revertive.

LSP Linear Protection operations are enacted using the following tools>perform commands.

tools>perform>router>mpls
            tp-tunnel
               clear {<lsp-name> | id <tunnel-id>}
               force {<lsp-name> | id <tunnel-id>}
               lockout {<lsp-name> | id <tunnel-id>}
               manual {<lsp-name> | id <tunnel-id>}
            exit
         exit

To minimize outage times, users should use the “mpls-tp protection command” (for example, force/manual) to switch all the relevant MPLS-TP paths before executing the following commands:

  1. clear router mpls interface <>
  2. config router mpls interface <> shut

2.3.7.7. Intermediate LSR Configuration for MPLS-TP LSPs

The forward and reverse directions of the MPLS-TP LSP Path at a transit LSR are configured using the following CLI tree:

config
   router
      mpls
         mpls-tp
            transit-path <path-name>
               [no] path-id {lsp-num <lsp-num> | working-path | protect-path
                  [src-global-id <global-id>]
                  src-node-id {<ipv4address> | <1.. .4,294,967,295>}
                  src-tunnel-num <tunnel-num>
                  [dest-global-id <global-id>]
                  dest-node-id {<ipv4address> | <1.. .4,294,967,295>}
                  [dest-tunnel-num <tunnel-num>]}

               forward-path
                  in-label <in-label> out-label <out-label>
                       out-link <if-name> [next-hop <ipv4-next-hop>]
               reverse-path
                  in-label <in-label> out-label <out-label>
                      [out-link <if-name> [next-hop <ipv4-next-hop>]
               [no] shutdown

The src-tunnel-num and dest-tunnel-num are consistent with the source and destination of a label mapping message for a signaled LSP.

If dest-tunnel-num is not entered in CLI, the dest-tunnel-num value is taken to be the same as the SRC-tunnel-num value.

If any of the global-id values are not entered, the value is taken to be 0.

If the src-global-id value is entered, but the dest-global-id value is not entered, dest-global-id value is the same as the src-global-id value.

The lsp-num must match the value configured in the LER for a given path. If no explicit lsp-num is configured, then working-path or protect-path must be specified (equating to 1 or 2 in the system).

The forward path must be configured before the reverse path. The configuration of the reverse path is optional.

The LSP-ID (path-id) parameters apply with respect to the downstream direction of the forward LSP path, and are used to populate the MIP ID for the path at this LSR.

The reverse path configuration must be deleted before the forward path.

The forward-path (and reverse-path if applicable) parameters can be configured with or without the path-id, but they must be configured if MPLS-TP OAM is to be able to identify the LSR MIP.

The transit-path can be no shutdown (as long as the forward-path/reverse-path parameters have been configured properly) with or without identifiers.

The path-id and path-name must be unique on the node. There is a one to one mapping between a given path-name and path-id.

Traffic can not pass through the transit-path if the transit-path is in the shutdown state.

2.3.8. MPLS-TP Show Commands

2.3.8.1. Static MPLS Labels

The following new commands show the details of the static MPLS labels.

show>router>mpls-labels>label <start-label> [<end-label> [in-use | <label-owner>]]

show>router>mpls-labels>label-range

An example output is as follows:

*A:mlstp-dutA# show router mpls
mpls         mpls-labels
*A:mlstp-dutA# show router mpls label
label        label-range
*A:7950 XRS-20# show router mpls-labels label-range
=======================================================================
Label Ranges
=======================================================================
Label Type      Start Label End Label   Aging       Available   Total
-----------------------------------------------------------------------
Static          32          18431       -           18400       18400
Dynamic         18432       524287      0           505856      505856
    Seg-Route   0           0           -           0           505856
=======================================================================


2.3.8.2. MPLS-TP Tunnel Configuration

These commands show the configuration of a given tunnel.

show>router>mpls>tp-lsp

A sample output is as follows:

*A:mlstp-dutA# show router mpls tp-lsp
  - tp-lsp [<lsp-name>] [status {up | down}] [from <ip-address> | to <ip-address>]
    [detail]
  - tp-lsp [<lsp-name>] path [protect | working] [detail]
  - tp-lsp [<lsp-name>] protection

 <lsp-name>           : [32 chars max] - accepts * as wildcard char
 <path>               : keyword - Display LSP path information.
 <protection>         : keyword - Display LSP protection information.
 <up | down>          : keywords - Specify state of the LSP
 <ip-address>         : a.b.c.d
 <detail>             : keyword - Display detailed information.

*A:mlstp-dutA# show router mpls tp-lsp
path
protection
to <a.b.c.d>
<lsp-name>
 "lsp-32"  "lsp-33"  "lsp-34"  "lsp-35"  "lsp-36"  "lsp-37"  "lsp-38"  "lsp-39"
 "lsp-40"  "lsp-41"
status {up | down}
from <ip-address>
detail

*A:mlstp-dutA# show router mpls tp-lsp "lsp-
"lsp-32"  "lsp-33"  "lsp-34"  "lsp-35"  "lsp-36"  "lsp-37"  "lsp-38"  "lsp-39"
"lsp-40"  "lsp-41"
*A:mlstp-dutA# show router mpls tp-lsp "lsp-32"

===============================================================================
MPLS MPLS-TP LSPs (Originating)
===============================================================================
LSP Name                           To               Tun     Protect   Adm  Opr
                                                    Id      Path
-------------------------------------------------------------------------------
lsp-32                             0.0.3.234        32      No        Up   Up
-------------------------------------------------------------------------------
LSPs : 1
===============================================================================
*A:mlstp-dutA# show router mpls tp-lsp "lsp-32" detail

===============================================================================
MPLS MPLS-TP LSPs (Originating) (Detail)
===============================================================================
-------------------------------------------------------------------------------
Type : Originating
-------------------------------------------------------------------------------
LSP Name    : lsp-32
LSP Type    : MplsTp                           LSP Tunnel ID  : 32
From Node Id: 0.0.3.233+                       To Node Id     : 0.0.3.234
Adm State   : Up                               Oper State     : Up
LSP Up Time : 0d 04:50:47                      LSP Down Time  : 0d 00:00:00
Transitions : 1                                Path Changes   : 2

DestGlobalId: 42                               DestTunnelNum  : 32

2.3.8.3. MPLS-TP Path configuration

This can reuse and augment the output of the current show commands for static LSPs. They should also show if BFD is enabled on a given path. If this referring to a transit path, this should also display (among others) the path-id (7 parameters) for a given transit-path-name, or the transit-path-name for a given the path-id (7 parameters)

show>router>mpls>tp-lsp>path

A sample output is as follows:

===============================================================================
*A:mlstp-dutA#  show router mpls tp-lsp path

===============================================================================
MPLS-TP LSP Path Information
===============================================================================
LSP Name      : lsp-32                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       32        32        AtoB_1          Up     Down
Protect                       2080      2080      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-33                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       33        33        AtoB_1          Up     Down
Protect                       2082      2082      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-34                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       34        34        AtoB_1          Up     Down
Protect                       2084      2084      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-35                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       35        35        AtoB_1          Up     Down
Protect                       2086      2086      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-36                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       36        36        AtoB_1          Up     Down
Protect                       2088      2088      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-37                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       37        37        AtoB_1          Up     Down
Protect                       2090      2090      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-38                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       38        38        AtoB_1          Up     Down
Protect                       2092      2092      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-39                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       39        39        AtoB_1          Up     Down
Protect                       2094      2094      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-40                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       40        40        AtoB_1          Up     Down
Protect                       2096      2096      AtoC_1          Up     Up
===============================================================================
LSP Name      : lsp-41                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       41        41        AtoB_1          Up     Down
Protect                       2098      2098      AtoC_1          Up     Up

*A:mlstp-dutA#  show router mpls tp-lsp "lsp-32" path working

===============================================================================
MPLS-TP LSP Working Path Information
    LSP: "lsp-32"
===============================================================================
LSP Name      : lsp-32                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Working                       32        32        AtoB_1          Up     Down
===============================================================================
*A:mlstp-dutA#  show router mpls tp-lsp "lsp-32" path protect

===============================================================================
MPLS-TP LSP Protect Path Information
    LSP: "lsp-32"
===============================================================================
LSP Name      : lsp-32                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

-------------------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F         Admin  Oper
-------------------------------------------------------------------------------
Protect                       2080      2080      AtoC_1          Up     Up
===============================================================================
*A:mlstp-dutA#  show router mpls tp-lsp "lsp-32" path protect detail

===============================================================================
MPLS-TP LSP Protect Path Information
    LSP: "lsp-32" (Detail)
===============================================================================
LSP Name      : lsp-32                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

Protect path information
-------------------------------------------------------------------------------
Path Type     : Protect                          LSP Num       : 2
Path Admin    : Up                               Path Oper     : Up
Out Interface : AtoC_1                           Next Hop Addr : n/a
In Label      : 2080                             Out Label     : 2080
Path Up Time  : 0d 04:52:17                      Path Dn Time  : 0d 00:00:00
Active Path   : Yes                              Active Time   : 0d 00:52:56

MEP information
MEP State     : Up                               BFD           : cc
OAM Templ     : privatebed-oam-template          CC Status     : inService
                                                 CV Status     : unknown
Protect Templ : privatebed-protection-template   WTR Count Down: 0 seconds
RX PDU        : SF (1,1)                         TX PDU        : SF (1,1)
Defects       :
===============================================================================
*A:mlstp-dutA#  show router mpls tp-lsp "lsp-32" path working detail

===============================================================================
MPLS-TP LSP Working Path Information
    LSP: "lsp-32" (Detail)
===============================================================================
LSP Name      : lsp-32                           To            : 0.0.3.234
Admin State   : Up                               Oper State    : Up

Working path information
-------------------------------------------------------------------------------
Path Type     : Working                          LSP Num       : 1
Path Admin    : Up                               Path Oper     : Down
Down Reason   : ccFault ifDn
Out Interface : AtoB_1                           Next Hop Addr : n/a
In Label      : 32                               Out Label     : 32
Path Up Time  : 0d 00:00:00                      Path Dn Time  : 0d 00:53:01
Active Path   : No                               Active Time   : n/a

MEP information
MEP State     : Up                               BFD           : cc
OAM Templ     : privatebed-oam-template          CC Status     : outOfService
                                                 CV Status     : unknown
===============================================================================
*A:mlstp-dutA#

2.3.8.4. MPLS-TP Protection

These show the protection configuration for a given tunnel, which path in a tunnel is currently working and which is protect, and whether the working or protect is currently active.

show>router>mpls>tp-lsp>protection

A sample output is as follows:

*A:mlstp-dutA#  show router mpls tp-lsp protection

===============================================================================
MPLS-TP LSP Protection Information
Legend: W-Working, P-Protect,
===============================================================================
LSP Name                      Admin Oper  Path    Ingr/Egr      Act. Rx PDU
                              State State   State Label         Path Tx PDU
-------------------------------------------------------------------------------
lsp-32                        Up    Up    W Down      32/32     No   SF (1,1)
                                          P Up      2080/2080   Yes  SF (1,1)
lsp-33                        Up    Up    W Down      33/33     No   SF (1,1)
                                          P Up      2082/2082   Yes  SF (1,1)
lsp-34                        Up    Up    W Down      34/34     No   SF (1,1)
                                          P Up      2084/2084   Yes  SF (1,1)
lsp-35                        Up    Up    W Down      35/35     No   SF (1,1)
                                          P Up      2086/2086   Yes  SF (1,1)
lsp-36                        Up    Up    W Down      36/36     No   SF (1,1)
                                          P Up      2088/2088   Yes  SF (1,1)
lsp-37                        Up    Up    W Down      37/37     No   SF (1,1)
                                          P Up      2090/2090   Yes  SF (1,1)
lsp-38                        Up    Up    W Down      38/38     No   SF (1,1)
                                          P Up      2092/2092   Yes  SF (1,1)
lsp-39                        Up    Up    W Down      39/39     No   SF (1,1)
                                          P Up      2094/2094   Yes  SF (1,1)
lsp-40                        Up    Up    W Down      40/40     No   SF (1,1)
                                          P Up      2096/2096   Yes  SF (1,1)
lsp-41                        Up    Up    W Down      41/41     No   SF (1,1)
                                          P Up      2098/2098   Yes  SF (1,1)
-------------------------------------------------------------------------------
No. of MPLS-TP LSPs: 10
===============================================================================


2.3.8.5. MPLS TP Node Configuration

Displays the Global ID, Node ID and other general MPLS-TP configurations for the node.

show>router>mpls>mpls-tp

A sample output is as follows:

*A:mlstp-dutA# show router mpls mpls-tp
  - mpls-tp


      oam-template    - Display MPLS-TP OAM Template information
      protection-tem* - Display MPLS-TP Protection Template information
      status          - Display MPLS-TP system configuration
      transit-path    - Display MPLS-TP Tunnel information

*A:mlstp-dutA# show router mpls mpls-tp oam-template

===============================================================================
MPLS-TP OAM Templates
===============================================================================
Template Name : privatebed-oam-template Router ID     : 1
BFD Template  : privatebed-bfd-template Hold-Down Time: 0 centiseconds
                                        Hold-Up Time  : 20 deciseconds
===============================================================================
*A:mlstp-dutA# show router mpls mpls-tp protection-template

===============================================================================
MPLS-TP Protection Templates
===============================================================================
Template Name  : privatebed-protection-template  Router ID      : 1
Protection Mode: one2one                         Direction      : bidirectional
Revertive      : revertive                       Wait-to-Restore: 300sec
Rapid-PSC-Timer: 10ms                            Slow-PSC-Timer : 5sec
===============================================================================
*A:mlstp-dutA# show router mpls mpls-tp status

===============================================================================
MPLS-TP Status
===============================================================================
Admin Status  : Up
Global ID     : 42                               Node ID       : 0.0.3.233
Tunnel Id Min : 1                                Tunnel Id Max : 4096
===============================================================================
*A:mlstp-dutA# show router mpls mpls-tp transit-path
  - transit-path [<path-name>] [detail]

 <path-name>          : [32 chars max]
 <detail>             : keyword - Display detailed information.





A:mplstp-dutC# show router mpls mpls-tp transit-path
  - transit-path [<path-name>] [detail]

 <path-name>          : [32 chars max]
 <detail>             : keyword - Display detailed information.


A:mplstp-dutC# show router mpls mpls-tp transit-path
<path-name>
 "tp-32"   "tp-33"   "tp-34"   "tp-35"   "tp-36"   "tp-37"   "tp-38"   "tp-39"
 "tp-40"   "tp-41"
detail

A:mplstp-dutC# show router mpls mpls-tp transit-path "tp-32"

===============================================================================
MPLS-TP Transit tp-32 Path Information
===============================================================================
Path Name     : tp-32
Admin State   : Up                               Oper State    : Up

------------------------------------------------------------------
Path        NextHop           InLabel   OutLabel  Out I/F
------------------------------------------------------------------
FP                            2080      2081      CtoB_1
RP                            2081      2080      CtoA_1
===============================================================================
A:mplstp-dutC# show router mpls mpls-tp transit-path "tp-32" detail

===============================================================================
MPLS-TP Transit tp-32 Path Information (Detail)
===============================================================================
Path Name     : tp-32
Admin State   : Up                               Oper State    : Up
-------------------------------------------------------------------------------
Path ID configuration
Src Global ID : 42                               Dst Global ID : 42
Src Node ID   : 0.0.3.234                        Dst Node ID   : 0.0.3.233
LSP Number    : 2                                Dst Tunnel Num: 32

Forward Path configuration
In Label      : 2080                             Out Label     : 2081
Out Interface : CtoB_1                           Next Hop Addr : n/a

Reverse Path configuration
In Label      : 2081                             Out Label     : 2080
Out Interface : CtoA_1                           Next Hop Addr : n/a
===============================================================================
A:mplstp-dutC#

2.3.8.6. MPLS-TP Interfaces

The existing show>router>interface command should be enhanced to display mpls-tp specific information.

The following is a sample output:

*A:mlstp-dutA# show router interface "AtoB_1"

===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name                   Adm         Opr(v4/v6)  Mode    Port/SapId
   IP-Address                                                    PfxState
-------------------------------------------------------------------------------
AtoB_1                           Down        Down/--     Network 1/2/3:1
   Unnumbered If[system]                                         n/a
-------------------------------------------------------------------------------
Interfaces : 1


2.3.9. MPLS-TP Debug Commands

The following command provides the debug command for an MPLS-TP tunnel:

tools>dump>router>mpls>tp-tunnel <lsp-name> [clear]

The following is a sample output:

A:mlstp-dutA# tools dump router mpls tp-tunnel
  - tp-tunnel <lsp-name> [clear]
  - tp-tunnel id <tunnel-id> [clear]

 <lsp-name>           : [32 chars max]
 <tunnel-id>          : [1..61440]
 <clear>              : keyword - clear stats after reading


*A:mlstp-dutA# tools dump router mpls tp-tunnel "lsp-
"lsp-32"  "lsp-33"  "lsp-34"  "lsp-35"  "lsp-36"  "lsp-37"  "lsp-38"  "lsp-39"
"lsp-40"  "lsp-41"
*A:mlstp-dutA# tools dump router mpls tp-tunnel "lsp-32"

 Idx: 1-32 (Up/Up): pgId 4, paths 2, operChg 1, Active: Protect
  TunnelId: 42::0.0.3.233::32-42::0.0.3.234::32
  PgState: Dn, Cnt/Tm: Dn 1/000 04:00:48.160 Up:3/000 00:01:25.840
  MplsMsg: tpDn 0/000 00:00:00.000, tunDn 0/000 00:00:00.000
           wpDn 0/000 00:00:00.000, ppDn 0/000 00:00:00.000
           wpDel 0/000 00:00:00.000, ppDel 0/000 00:00:00.000
           tunUp 1/000 00:00:02.070
  Paths:
   Work (Up/Dn): Lsp 1, Lbl 32/32, If 2/128 (1/2/3 : 0.0.0.0)
    Tmpl: ptc: , oam: privatebed-oam-template (bfd: privatebed-bfd-template(np)-
10 ms)
    Bfd: Mode CC state Dn/Up handle 160005/0
    Bfd-CC (Cnt/Tm): Dn 1/000 04:00:48.160 Up:1/000 00:01:23.970
    State:  Admin Up (1::1::1)  port Up , if Dn ,  operChg 2
    DnReasons: ccFault ifDn

   Protect (Up/Up): Lsp 2, Lbl 2080/2080, If 3/127 (5/1/1 : 0.0.0.0)
    Tmpl: ptc: privatebed-protection-template, oam: privatebed-oam-template (bfd:
privatebed-bfd-template(np)-10 ms)
    Bfd: Mode CC state Up/Up handle 160006/0
    Bfd-CC (Cnt/Tm): Dn 0/000 00:00:00.000 Up:1/000 00:01:25.410
    State:  Admin Up (1::1::1)  port Up , if Up ,  operChg 1

  Aps: Rx - 5, raw 3616, nok 0(), txRaw - 3636, revert Y
   Pdu: Rx - 0x1a-21::0101 (SF), Tx - 0x1a-21::0101 (SF)
   State: PF:W:L LastEvt pdu (L-SFw/R-SFw)
   Tmrs: slow
   Defects: None  Now: 000 05:02:19.130
  Seq  Event   state     TxPdu       RxPdu       Dir    Act          Time
  ===  ======  ========  ==========  ==========  =====  ====  ================
  000   start    UA:P:L    SF (0,0)    NR (0,0)  Tx-->  Work  000 00:00:02.080
  001     pdu    UA:P:L    SF (0,0)    SF (0,0)  Rx<--  Work  000 00:01:24.860
  002     pdu    UA:P:L    SF (0,0)    NR (0,0)  Rx<--  Work  000 00:01:26.860
  003     pUp        NR    NR (0,0)    NR (0,0)  Tx-->  Work  000 00:01:27.440
  004     pdu        NR    NR (0,0)    NR (0,0)  Rx<--  Work  000 00:01:28.760
  005     wDn    PF:W:L    SF (1,1)    NR (0,0)  Tx-->  Prot  000 04:00:48.160
  006     pdu    PF:W:L    SF (1,1)    NR (0,1)  Rx<--  Prot  000 04:00:48.160
  007     pdu    PF:W:L    SF (1,1)    SF (1,1)  Rx<--  Prot  000 04:00:51.080

The following command shows the free mpls tunnel IDs available between two values, start-range and end-range.

tools>dump>router>mpls>free-tunnel-id <start-range> <end-range>

The following command provides a debug tool to view control-channel-status signaling packets.

*A:bksim1611# /debug service id 700 sdp 200:700 event-type
{config-change |
oper-status-change | neighbor-discovery | control-channel-status}

*A:bksim1611# /debug service id 700 sdp 200:700 event-type control-channel-status

*A:bksim1611#
1 2012/08/31 09:56:12.09 EST MINOR: DEBUG #2001 Base PW STATUS SIG PKT (RX):
"PW STATUS SIG PKT (RX)::
Sdp Bind 200:700 Instance 3
    Version          : 0x0
    PW OAM Msg Type  : 0x27
    Refresh Time     : 0xa
    Total TLV Length : 0x8
    Flags            : 0x0
    TLV Type         : 0x96a
    TLV Len          : 0x4
    PW Status Bits   : 0x0
"

2 2012/08/31 09:56:22.09 EST MINOR: DEBUG #2001 Base PW STATUS SIG PKT (RX):
"PW STATUS SIG PKT (RX)::
Sdp Bind 200:700 Instance 3
    Version          : 0x0
    PW OAM Msg Type  : 0x27
    Refresh Time     : 0xa
    Total TLV Length : 0x8
    Flags            : 0x0
    TLV Type         : 0x96a
    TLV Len          : 0x4
    PW Status Bits   : 0x0
"

3 2012/08/31 09:56:29.44 EST MINOR: DEBUG #2001 Base PW STATUS SIG PKT (TX):
"PW STATUS SIG PKT (TX)::
Sdp Bind 200:700 Instance 3
    Version          : 0x0
    PW OAM Msg Type  : 0x27
    Refresh Time     : 0x1e
    Total TLV Length : 0x8
    Flags            : 0x0
    TLV Type         : 0x96a
    TLV Len          : 0x4
    PW Status Bits   : 0x0

2.4. Traffic Engineering

Without traffic engineering (TE), routers route traffic according to the SPF algorithm, disregarding congestion or packet types.

With TE, network traffic is routed efficiently to maximize throughput and minimize delay. TE facilitates traffic flows to be mapped to the destination through a different (less congested) path other than the one selected by the SPF algorithm.

MPLS directs a flow of IP packets along a label switched path (LSP). LSPs are simplex, meaning that the traffic flows in one direction (unidirectional) from an ingress router to an egress router. Two LSPs are required for duplex traffic. Each LSP carries traffic in a specific direction, forwarding packets from one router to the next across the MPLS domain.

When an ingress router receives a packet, it adds an MPLS header to the packet and forwards it to the next hop in the LSP. The labeled packet is forwarded along the LSP path until it reaches the destination point. The MPLS header is removed and the packet is forwarded based on Layer 3 information such as the IP destination address. The physical path of the LSP is not constrained to the shortest path that the IGP would choose to reach the destination IP address.

2.4.1. TE Metric (IS-IS and OSPF)

When the use of the TE metric is selected for an LSP, the shortest path computation after the TE constraints are applied will select an LSP path based on the TE metric instead of the IGP metric. The user configures the TE metric under the MPLS interface. Both the TE and IGP metrics are advertised by OSPF and IS-IS for each link in the network. The TE metric is part of the TE extensions of both IGP protocols.

A typical application of the TE metric is to allow CSPF to represent a dual TE topology for the purpose of computing LSP paths.

An LSP dedicated for real-time and delay sensitive user and control traffic has its path computed by CSPF using the TE metric. The user configures the TE metric to represent the delay figure, or a combined delay/jitter figure, of the link. In this case, the shortest path satisfying the constraints of the LSP path will effectively represent the shortest delay path.

An LSP dedicated for non-delay sensitive user and control traffic has its path computed by CSPF using the IGP metric. The IGP metric could represent the link bandwidth or some other figure as required.

When the use of the TE metric is enabled for an LSP, CSPF will first prune all links in the network topology that do not meet the constraints specified for the LSP path. These constraints include bandwidth, admin-groups, and hop limit. CSPF will then run an SPF on the remaining links. The shortest path among the all SPF paths is selected based on the TE metric instead of the IGP metric which is used by default. The TE metric is only used in CSPF computations for MPLS paths and not in the regular SPF computation for IP reachability.

2.4.2. Admin Group Support on Facility Bypass Backup LSP

This feature provides for the inclusion of the LSP primary path admin-group constraints in the computation of a Fast ReRoute (FRR) facility bypass backup LSP to protect the primary LSP path by all nodes in the LSP path.

This feature is supported with the following LSP types and in both intra-area and inter-area TE where applicable:

  1. Primary path of a RSVP P2P LSP.
  2. S2L path of an RSVP P2MP LSP instance
  3. LSP template for an S2L path of an RSVP P2MP LSP instance.
  4. LSP template for auto-created RSVP P2P LSP in intra-area TE.

2.4.2.1. Procedures at Head-End Node

The user enables the signaling of the primary LSP path admin-group constraints in the FRR object at the ingress LER with the following CLI command:

config>router>mpls>lsp>fast-reroute>propagate-admin-group

When this command is enabled at the ingress LER, the admin-group constraints configured in the context of the P2P LSP primary path, or the ones configured in the context of the LSP and inherited by the primary path, are copied into the FAST_REROUTE object. The admin-group constraints are copied into the include-any or exclude-any fields.

The ingress LER propagates these constraints to the downstream nodes during the signaling of the LSP to allow them to include the admin-group constraints in the selection of the FRR backup LSP for protecting the LSP primary path.

The ingress LER will insert the FAST_REROUTE object by default in a primary LSP path message. If the user disables the object using the following command, the admin-group constraints will not be propagated: config>router>mpls>no frr-object.

The same admin-group constraints can be copied into the Session Attribute object. They are intended for the use of an LSR, typically an ABR, to expand the ERO of an inter-area LSP path. They are also used by any LSR node in the path of a CSPF or non-CSPF LSP to check the admin-group constraints against the ERO regardless if the hop is strict or loose. These are governed strictly by the command:

config>router>mpls>lsp>propagate-admin-group

In other words, the user may decide to copy the primary path admin-group constraints into the FAST_REROUTE object only, or into the Session Attribute object only, or into both.

The PLR rules for processing the admin-group constraints can make use of either of the two object admin-group constraints.

2.4.2.2. Procedures at PLR Node

The user enables the use of the admin-group constraints in the association of a manual or dynamic bypass LSP with the primary LSP path at a Point-of-Local Repair (PLR) node using the following global command:

config>router>mpls>admin-group-frr

When this command is enabled, each PLR node reads the admin-group constraints in the FAST_REROUTE object in the Path message of the LSP primary path. If the FAST_REROUTE object is not included in the Path message, then the PLR will read the admin-group constraints from the Session Attribute object in the Path message.

If the PLR is also the ingress LER for the LSP primary path, then it just uses the admin-group constraint from the LSP and/or path level configurations.

Whether the PLR node is also the ingress LER or just an LSR for the protected LSP primary path, the outcome of the ingress LER configuration dictates the behavior of the PLR node and is summarized in Table 7.

Table 7:  Bypass LSP Admin-Group Constraint Behavior

Ingress LER

Configuration

Session Attribute

FRR Object

Bypass LSP at PLR (LER/LSF) follows admin-group constraints

1

frr-object

lsp>no propagate-admin group

lsp>frr>propagate-admin-group

Admin color constraints not sent

Admin color constraints sent

yes

2

frr-object

lsp>propagate-admin-group

lsp>frr>propagate-admin group

Admin color constraints sent

Admin color constraints sent

yes

3

frr-object

lsp>propagate-admin group

lsp>frr>no propagate-admin-group

Admin color constraints sent

Admin color constraints not sent

no

4

No frr-object

lsp>propagate-admin group

lsp>frr>propagate-admin-group

Admin color constraints sent

Not present

yes

5

No frr-object

lsp>no propagate-admin group

lsp>frr>propagate-admin-group

Admin color constraints not sent

Not present

no

6

No frr-object

lsp>propagate-admin group

lsp>frr>no propagate-admin-group

Admin color constraints sent

Not present

yes

The PLR node then uses the admin-group constraints along with other constraints, such as hop-limit and SRLG, to select a manual or dynamic bypass among those that are already in use.

If none of the manual or dynamic bypass LSP satisfies the admin-group constraints, and/or the other constraints, the PLR node will request CSPF for a path that merges the closest to the protected link or node and that includes or excludes the specified admin-group IDs.

If the user changes the configuration of the above command, it will not have any effect on existing bypass associations. The change will only apply to new attempts to find a valid bypass.

2.4.3. Diff-Serv Traffic Engineering

Diff-Serv traffic engineering (TE) provides the ability to manage bandwidth on a per-TE class basis as per RFC 4124. In the base traffic engineering, LER computes LSP paths based on available BW of links on the path. Diff-Serv TE adds ability to perform this on a per-TE class basis.

A TE class is a combination of Class Type and LSP priority. A Class Type is mapped to one or more system Forwarding Classes using a configuration profile. The operator sets different limits for admission control of LSPs in each TE class over each TE link. Eight TE classes are supported. Admission control of LSP paths bandwidth reservation is performed using the Maximum Allocation Bandwidth Constraint Model as per RFC 4125.

2.4.3.1. Mapping of Traffic to a Diff-Serv LSP

An LER allows the operator to map traffic to a Diff-Serv LSP using one of the following methods:

  1. Explicit RSVP SDP configuration of a VLL, VPLS, or VPRN service
  2. Class-based forwarding in an RSVP SDP. The operator can enable the checking by RSVP that a Forwarding Class (FC) mapping to an LSP under the SDP configuration is compatible with the Diff-Serv Class Type (CT) configuration for this LSP.
  3. The auto-bind-tunnel RSVP-TE option in a VPRN service
  4. Static routes with indirect next-hop being an RSVP LSP name

2.4.3.2. Admission Control of Classes

There are a couple of admission control decisions made when an LSP with a specified bandwidth is to be signaled. The first is in the head-end node. CSPF will only consider network links that have sufficient bandwidth. Link bandwidth information is provided by IGP TE advertisement by all nodes in that network.

Another decision made is local CAC and is performed when the RESV message for the LSP path is received in the reverse direction by a SR OS in that path. The bandwidth value selected by the egress LER is checked against link bandwidth, otherwise the reservation is rejected. If accepted, the new value for the remaining link bandwidth is advertised by IGP at the next advertisement event.

Both of these admission decisions are enhanced to be performed at the TE class level when Diff-Serv TE is enabled. In other words, CSPF in the head-end node will need to check the LSP bandwidth against the ‘unreserved bandwidth’ advertised for all links in the path of the LSP for that TE class which consists of a combination of a CT and a priority. Same for the admission control at SR OS receiving the Resv message.

2.4.3.2.1. Maximum Allocation Model

The admission control rules for this model are described in RFC 4125. Each CT shares a percentage of the Maximum Reservable Link Bandwidth through the user-configured BC for this CT. The Maximum Reservable Link Bandwidth is the link bandwidth multiplied by the RSVP interface subscription factor.

The sum of all BC values across all CTs will not exceed the Maximum Reservable Link Bandwidth. In other words, the following rule is enforced:

SUM (BCc) =< Max-Reservable-Bandwidth, 0 <= c <= 7

An LSP of class-type CTc, setup priority p, holding priority h (h=<p), and bandwidth B is admitted into a link if the following condition is satisfied:

B <= Unreserved Bandwidth for TE-Class[i]

where TE-Class [i] maps to < CTc, p > in the definition of the TE classes on the node. The bandwidth reservation is effected at the holding priority; that is, in TE-class [j] = <CTc, h>. As such, the reserved bandwidth for CTc and the unreserved bandwidth for the TE classes using CTc are updated as follows:

Reserved(CTc) = Reserved(CTc) + B

Unreserved TE-Class [j] = BCc - SUM (Reserved(CTc,q)) for 0<= q <= h

Unreserved TE-Class [i] = BCc - SUM (Reserved(CTc,q)) for 0<= q <= p

The same is done to update the unreserved bandwidth for any other TE class making use of the same CTc. These new values are advertised to the rest of the network at the next IGP-TE flooding.

When Diff-Serv is disabled on the node, this model degenerates into a single default CT internally with eight preemption priorities and a non-configurable BC equal to the Maximum Reservable Link Bandwidth. This would behave exactly like CT0 with eight preemption priorities and BC= Maximum Reservable Link Bandwidth if Diff-Serv was enabled.

2.4.3.2.2. Russian Doll Model

The RDM model is defined using the following equations:

SUM (Reserved (CTc)) <= BCb,

where the SUM is across all values of c in the range b <= c <= (MaxCT - 1), and BCb is the bandwidth constraint of CTb.

BC0= Max-Reservable-Bandwidth, so that:

SUM (Reserved(CTc)) <= Max-Reservable-Bandwidth,

where the SUM is across all values of c in the range 0 <= c <= (MaxCT - 1)

An LSP of class-type CTc, setup priority p, holding priority h (h=<p), and bandwidth B is admitted into a link if the following condition is satisfied:

B <= Unreserved Bandwidth for TE-Class[i],

where TE-Class [i] maps to < CTc, p > in the definition of the TE classes on the node. The bandwidth reservation is effected at the holding priority, that is, in TE-class [j] = <CTc, h>. As such, the reserved bandwidth for CTc and the unreserved bandwidth for the TE classes using CTc are updated as follows:

Reserved(CTc) = Reserved(CTc) + B

Unreserved TE-Class [j] = Unreserved (CTc, h) = Min [

BCc - SUM (Reserved (CTb, q) for 0<=q <= h, c <= b <= 7,

BC(c-1) – SUM (Reserved (CTb, q) for 0<=q <= h, (c-1) <= b <= 7,

…….

BC0 - SUM (Reserved (CTb, q) for 0<=q <= h, 0 <= b <= 7]

Unreserved TE-Class [i] = Unreserved (CTc, p) = Min [

BCc - SUM (Reserved (CTb, q) for 0<=q <= p, c <= b <= 7,

BC(c-1) – SUM (Reserved (CTb, q) for 0<=q <= p, (c-1) <= b <= 7,

…….

BC0 - SUM (Reserved (CTb, q) for 0<=q <= p, 0 <= b <= 7]

The same is done to update the unreserved bandwidth for any other TE class making use of the same CTc. These new values are advertised to the rest of the network at the next IGP-TE flooding.

2.4.3.2.2.1. Example CT Bandwidth Sharing with RDM

Below is a simple example with two CT values (CT0, CT1) and one priority 0 as shown in Figure 24.

Figure 24:  RDM with Two Class Types

Suppose CT1 bandwidth, or the CT1 percentage of Maximum Reservable Bandwidth to be more accurate is 100 Mb/s and CT2 bandwidth is 100 Mb/s and link bandwidth is 200 Mb/s. BC constraints can be calculated as follows.

BC1 = CT1 Bandwidth = 100 Mb/s.

BC0 = {CT1 Bandwidth} + {CT0 Bandwidth} = 200 Mb/s.

Suppose an LSP comes with CT1, setup and holding priorities of 0 and a bandwidth of 50 Mb/s.

Figure 25:  First LSP Reservation

According to the RDM admission control policy:

Reserved (CT1, 0) = 50 <= 100 Mb/s

Reserved (CT0, 0) + Reserved (CT1, 0) = 50 <= 200 Mb/s

This results in the following unreserved bandwidth calculation.

Unreserved (CT1, 0) = BC1 – Reserved (CT1, 0) = 100 – 50 = 50 Mb/s

Unreserved (CT0, 0) = BC0 – Reserved (CT0, 0) – Reserved (CT1, 0) = 200 – 0 – 50= 150 Mb/s.

The bandwidth reserved by a doll is not available to itself or any of the outer dolls.

Suppose now another LSP comes with CT0, setup and holding priorities of 0 and a bandwidth 120 Mb/s.

Figure 26:  Second LSP Reservation

Reserved (CT0, 0) = 120 <= 150 Mb/s

Reserved (CT0, 0) + Reserved (CT1, 0) = 120 + 50 = 170 <= 200 Mb/s

Unreserved (CT0, 0) = 150 -120 = 30 Mb/s

If we simply checked BC1, the formula would yield the wrong results:

Unreserved (CT1, 0) = BC1 – Reserved (CT1, 0) = 100 -50 = 50 Mb/s

Because of the encroaching of CT0 into CT1, we would need to deduct the overlapping reservation. This would then yield:

Unreserved (CT1, 0) = BC0 – Reserved (CT0, 0) – Reserved (CT1, 0) = 200 – 120 - 50 = 30 Mb/s, which is the correct figure.

Extending the formula with both equations:

Unreserved (CT1, 0) = Min [BC1 – Reserved (CT1, 0), BC0 – Reserved (CT0, 0) – Reserved (CT1, 0)] = Min [100 – 50, 200 – 120 – 50] = 30 Mb/s

An outer doll can encroach into an inner doll, reducing the bandwidth available for inner dolls.

2.4.3.3. RSVP Control Plane Extensions

RSVP will use the Class Type object to carry LSP class-type information during path setup. Eight values are supported for class-types 0 through 7 as per RFC 4124. Class type 0 is the default class which is supported today on the router.

One or more forwarding classes will map to a Diff-Serv class type trough a system level configuration.

2.4.3.4. IGP Extensions

IGP extensions are defined in RFC 4124. Diff-Serv TE advertises link available bandwidth, referred to as unreserved bandwidth, by OSPF TE or IS-IS TE on a per TE class basis. A TE class is a combination of a class type and an LSP priority. In order to reduce the amount of per TE class flooding required in the network, the number of TE classes is set to eight. This means that eight class types can be supported with a single priority or four class types with two priorities, and so on. In that case, the operator configures the desired class type on the LSP such that RSVP-TE can signal it in the class-type object in the path message.

IGP will continue to advertise the existing Maximum Reservable Link Bandwidth TE parameter to mean the maximum bandwidth that can be booked on a given interface by all classes. The value advertised is adjusted with the link subscription factor.

2.4.3.5. Diff-Serv TE Configuration and Operation

2.4.3.5.1. RSVP Protocol Level

The following are the configuration steps at the RSVP protocol level:

  1. The operator enables Diff-Serv TE by executing the diffserv-te command in the config>router>rsvp context. When this command is enabled, IS-IS and OSPF will start advertising available bandwidth for each TE class configured under the diffserv-te node. The operator can disable Diff-Serv TE globally by using the no form of the command.
  2. The enabling or disabling of Diff-Serv on the system requires that the RSVP and MPLS protocol be shutdown. The operator must execute the no shutdown command in each context once all parameters under both protocols are defined. When saved in the configuration file, the no shutdown command is automatically inserted under both protocols to make sure they come up after a node reboot.
  3. IGP will advertise the available bandwidth in each TE class in the unreserved bandwidth TE parameter for that class for each RSVP interface in the system.
  4. In addition, IGP will continue to advertise the existing Maximum Reservable Link Bandwidth TE parameter so the maximum bandwidth that can be booked on a given interface by all classes. The value advertised is adjusted with the link subscription factor configured in the config>router>rsvp>if>subscription percentage context.
  5. The operator can overbook (underbook) the maximum reservable bandwidth of a given CT by overbooking (underbooking) the interface maximum reservable bandwidth by configuring the appropriate value for the subscription percentage parameter.
  6. The diffserv-te command will only have effect if the operator has already enabled TE at the IS-IS and/or OSPF routing protocol levels:
    config>router>isis>traffic-engineering
    and/or:
    config>router>ospf>traffic-engineering
  7. The following Diff-Serv TE parameters are configured globally under the diffserv-te node. They apply to all RSVP interfaces on the system. Once configured, these parameters can only be changed after shutting down the MPLS and RSVP protocols:
    a. Definition of TE classes, TE Class = {Class Type (CT), LSP priority}. Eight TE classes can be supported. There is no default TE class once Diff-Serv is enabled. The operator must explicitly define each TE class. However, when Diff-Serv is disabled there is an internal use of the default CT (CT0) and eight preemption priorities as shown in Table 8.
    Table 8:  Internal TE Class Definition when Diff-Serv TE is Disabled

    Class Type

    (CT internal)

    LSP Priority

    0

    7

    0

    6

    0

    5

    0

    4

    0

    3

    0

    2

    0

    1

    0

    0

    b. A mapping of the system forwarding class to CT. The default settings are shown in Table 9.
    Table 9:  Default Mapping of Forwarding Class to TE Class

    FC ID

    FC Name

    FC Designation

    Class Type (CT)

    7

    Network Control

    NC

    7

    6

    High-1

    H1

    6

    5

    Expedited

    EF

    5

    4

    High-2

    H2

    4

    3

    Low-1

    L1

    3

    2

    Assured

    AF

    2

    1

    Low-2

    L2

    1

    0

    Best Effort

    BE

    0

    c. Configuration of the percentage of RSVP interface bandwidth each CT shares, for example, the Bandwidth Constraint (BC), using the class-type-bw command. The absolute value of the CT share of the interface bandwidth is derived as the percentage of the bandwidth advertised by IGP in the maximum reservable link bandwidth TE parameter, for example, the link bandwidth multiplied by the RSVP interface subscription percentage parameter. Note that this configuration also exists at the RSVP interface level and the interface specific configured value overrides the global configured value. The BC value can be changed at any time. The operator can specify the BC for a CT which is not used in any of the TE class definition but that does not get used by any LSP originating or transiting this node.
    d. Configuration of the Admission Control Policy to be used: only the Maximum Allocation Model (MAM) is supported. The MAM value represents the bandwidth constraint models for the admission control of an LSP reservation to a link.

2.4.3.5.2. RSVP Interface Level

The following are the configuration steps at the RSVP interface level.

  1. The operator configures the percentage of RSVP interface bandwidth each CT shares, for example, the BC, using the class-type-bw command. The value entered at the interface level overrides the global value configured under the diffserv-te node.
  2. The operator can overbook (underbook) the maximum reservable bandwidth of a given CT by overbooking (underbooking) the interface maximum reservable bandwidth via configuring the appropriate value for the subscription percentage parameter in the config>router>rsvp>interface context.
  3. .Both the BC value and the subscription parameter can be changed at any time.

2.4.3.5.3. LSP and LSP Path Levels

The following are the configuration steps at the LSP and LSP path levels.

  1. The operator configures the CT in which the LSP belongs by configuring the class-type ct-number command at the LSP level and/or the path level. The path level value overrides the LSP level value. By default, an LSP belongs to CT0.
  2. Only one CT per LSP path is allowed per RFC 4124, Protocol Extensions for Support of Diffserv-aware MPLS Traffic Engineering. A multi-class LSP path is achieved through mapping multiple system Forwarding Classes to a CT.
  3. The signaled CT of a dynamic bypass must always be CT0 regardless of the CT of the primary LSP path. The setup and hold priorities must be set to default values, for example, 7 and 0 respectively. This assumes that the operator configured a couple of TE classes, one which combines CT0 and a priority of 7 and the other which combines CT0 and a priority of 0. If not, the bypass LSP will not be signaled and will go into the down state.
  4. The operator cannot configure the CT, setup priority, and holding priority of a manual bypass. They are always signaled with CT0 and the default setup and holding priorities.
  5. The signaled CT, setup priority and holding priority of a detour LSP matches those of the primary LSP path it is associated with.
  6. The operator can also configure the setup and holding priorities for each LSP path.
  7. An LSP which does not have the CT explicitly configured will behave like a CT0 LSP when Diff-Serv is enabled.

If the operator configured a combination of a CT and a setup priority and/or a combination of a CT and a holding priority for an LSP path that are not supported by the user-defined TE classes, the LSP path is kept in a down state and error code is shown within the show command output for the LSP path.

2.4.4. Diff-Serv TE LSP Class Type Change under Failure

An option to configure a main Class Type (CT) and a backup CT for the primary path of a Diff-Serv TE LSP is provided. The main CT is used under normal operating conditions, for example, when the LSP is established the first time and when it gets re-optimized due to timer based or manual re-signal. The backup CT is used when the LSP retries under failure.

The use of backup Class Type (CT) by an LSP is enabled by executing the config>router>mpls>lsp>primary>backup-class-type ct-number command at the LSP primary path level.

When this option is enabled, the LSP will use the CT configured using the following commands (whichever is inherited at the primary path level) as the main CT:

  1. config>router>mpls>lsp>class-type ct-number
  2. config>router>mpls>lsp>primary>class-type ct-number

The main CT is used at initial establishment and during a manual or a timer based re-signal Make-Before-Break (MBB) of the LSP primary path. The backup CT is used temporarily to signal the LSP primary path when it fails and goes into retry.

Note that any valid values may be entered for the backup CT and main CT, but they cannot be the same. No check is performed to make sure that the backup CT is a lower CT in Diff-Serv Russian-Doll Model (RDM) admission control context.

The secondary paths of the same LSP are always signaled using the main CT as in existing implementation.

2.4.4.1. LSP Primary Path Retry Procedures

This feature behaves according to the following procedures.

  1. When an LSP primary path retries due a failure, for example, it fails after being in the up state, or undergoes any type of MBB, MPLS will retry a new path for the LSP using the main CT. If the first attempt failed, the head-end node performs subsequent retries using the backup CT. This procedure must be followed regardless if the currently used CT by this path is the main or backup CT. This applies to both CSPF and non-CSPF LSPs.
  2. The triggers for using the backup CT after the first retry attempt are:
    1. A local interface failure or a control plane failure (hello timeout, and so on).
    2. Receipt of a PathErr message with a notification of a FRR protection becoming active downstream and/or receipt of a Resv message with a ‘Local-Protection-In-Use’ flag set. This invokes the FRR Global Revertive MBB.
    3. Receipt of a PathErr message with error code=25 (Notify) and sub-code=7 (Local link maintenance required) or a sub-code=8 (Local node maintenance required). This invokes the TE Graceful Shutdown MBB. Note that in this case, only a single attempt is performed by MBB as in current implementation; only the main CT is retried.
    4. Receipt of a Resv refresh message with the ‘Preemption pending’ flag set or a PathErr message with error code=34 (Reroute) and a value=1 (Reroute request soft preemption). This invokes the soft preemption MBB.
    5. Receipt of a ResvTear message.
    6. A configuration change MBB.
  3. When an unmapped LSP primary path goes into retry, it uses the main CT until the number of retries reaches the value of the new main-ct-retry-limit parameter. If the path did not come up, it must start using the backup CT at that point in time. By default, this parameter is set to infinite value. The new main-ct-retry-limit parameter has no effect on an LSP primary path, which retries due to a failure event. This parameter is configured using the main-ct-retry-limit command in the config>router>mpls>lsp context. If the user entered a value of the main-ct-retry-limit parameter that is greater than the LSP retry-limit, the number of retries will still stop when the LSP primary path reaches the value of the LSP retry-limit. In other words, the meaning of the LSP retry-limit parameter is not changed and always represents the upper bound on the number of retries. The unmapped LSP primary path behavior applies to both CSPF and non-CSPF LSPs.
  4. An unmapped LSP primary path is a path that never received a Resv in response to the first path message sent. This can occur when performing a “shut/no-shut” on the LSP or LSP primary path or when the node reboots. An unmapped LSP primary path goes into retry if the retry timer expired or the head-end node received a PathErr message before the retry timer expired.
  5. When the clear>router>mpls>lsp command is executed, the retry behavior for this LSP is the same as in the case of an unmapped LSP.
  6. If the value of the parameter main-ct-retry-limit is changed, the new value will only be used at the next time the LSP path is put into a “no-shut” state.
  7. The following is the behavior when the user changes the main or backup CT:
    1. If the user changes the LSP level CT, all paths of the LSP are torn down and re-signaled in a break-before-make fashion. Specifically, the LSP primary path is torn down and re-signaled even if it is currently using the backup CT.
    2. If the user changes the main CT of the LSP primary path, the path is torn down and re-signaled even if it is currently using the backup CT.
    3. If the user changes the backup CT of an LSP primary path when the backup CT is in use, the path is torn down and is re-signaled.
    4. If the user changes the backup CT of an LSP primary path when the backup CT is not in use, no action is taken. If however, the path was in global Revertive, gshut, or soft preemption MBB, the MBB is restarted. This actually means the first attempt is with the main CT and subsequent ones, if any, with the new value of the backup CT.
    5. Consider the following priority of the various MBB types from highest to lowest: Delayed Retry, Preemption, Global Revertive, Configuration Change, and TE Graceful Shutdown. If an MBB request occurs while a higher priority MBB is in progress, the latter MBB is restarted. This actually means the first attempt is with the main CT and subsequent ones, if any, with the new value of the backup CT.
  8. If the least-fill option is enabled at the LSP level, then CSPF must use least-fill equal cost path selection when the main or backup CT is used on the primary path.
  9. When the re-signal timer expires, CSPF will try to find a path with the main CT. The head-end node must re-signal the LSP even if the new path found by CSPF is identical to the existing one since the idea is to restore the main CT for the primary path. If a path with main CT is not found, the LSP remains on its current primary path using the backup CT. This means that the LSP primary path with the backup CT may no longer be the most optimal one. Furthermore, if the least-fill option was enabled at the LSP level, CSPF will not check if there is a more optimal path, with the backup CT, according to the least-fill criterion and, so, will not raise a trap to indicate the LSP path is eligible for least-fill re-optimization.
  10. When the user performs a manual re-signal of the primary path, CSPF will try to find a path with the main CT. The head-end node must re-signal the LSP as in current implementation.
  11. If a CPM switchover occurs while an the LSP primary path was in retry using the main or backup CT, for example, was still in operationally down state, the path retry is restarted with the main CT until it comes up. This is because the LSP path retry count is not synchronized between the active and standby CPMs until the path becomes up.
  12. When the user configured secondary standby and non-standby paths on the same LSP, the switchover behavior between primary and secondary is the same as in existing implementation.

This feature is not supported on a P2MP LSP.

2.4.4.2. Bandwidth Sharing Across Class Types

In order to allow different levels of booking of network links under normal operating conditions and under failure conditions, it is necessary to allow sharing of bandwidth across class types.

This feature introduces the Russian-Doll Model (RDM) Diff-Serv TE admission control policy described in RFC 4127, Russian Dolls Bandwidth Constraints Model for Diffserv-aware MPLS Traffic Engineering. This mode is enabled using the following command: config>router>rsvp>diffserv-te rdm.

The Russian Doll Model (RDM) LSP admission control policy allows bandwidth sharing across Class Types (CTs). It provides a hierarchical model by which the reserved bandwidth of a CT is the sum of the reserved bandwidths of the numerically equal and higher CTs. Figure 27 shows an example.

Figure 27:  RDM Admission Control Policy Example

CT2 has a bandwidth constraint BC2 which represents a percentage of the maximum reservable link bandwidth. Both CT2 and CT1 can share BC1 which is the sum of the percentage of the maximum reservable bandwidth values configured for CT2 and CT1 respectively. Finally, CT2, CT1, and CT0 together can share BC0 which is the sum of the percentage of the maximum reservable bandwidth values configured for CT2, CT1, and CT0 respectively. The maximum value for BC0 is of course the maximum reservable link bandwidth.

What this means in practice is that CT0 LSPs can use up to BC0 in the absence of LSPs in CT1 and CT2. When this occurs and a CT2 LSP with a reservation less than or equal to BC2 requests admission, it is only admitted by preempting one or more CT0 LSPs of lower holding priority than this LSP setup priority. Otherwise, the reservation request for the CT2 LSP is rejected.

It is required that multiple paths of the same LSP share common link bandwidth since they are signaled using the Shared Explicit (SE) style. Specifically, two instances of a primary path, one with the main CT and the other with the backup CT, must temporarily share bandwidth while MBB is in progress. Also, a primary path and one or many secondary paths of the same LSP must share bandwidth whether they are configured with the same or different CTs.

2.4.4.3. Downgrading the CT of Bandwidth Sharing LSP Paths

Consider a link configured with two class types CT0 and CT1 and making use of the RDM admission control model as shown in Figure 28.

Figure 28:  Sharing bandwidth when an LSP primary path is downgraded to backup CT

Consider an LSP path Z occupying bandwidth B at CT1. BC0 being the sum of all CTs below it, the bandwidth occupied in CT1 is guaranteed to be available in CT0. When new path X of the same LSP for CT0 is setup, it will use the same bandwidth B as used by path Z as shown in Figure 28 (a). When path Z is torn down the same bandwidth now occupies CT0 as shown in Figure 28 (b). Even if there were no new BW available in CT0 as can be seen in Figure 28 (c), path X can always share the bandwidth with path Z.

CSPF at the head-end node and CAC at the transit LSR node will share bandwidth of an existing path when its CT is downgraded in the new path of the same LSP.

2.4.4.4. Upgrading the CT of Bandwidth Sharing LSP Paths

When upgrading the CT the following issue can be apparent. Assume an LSP path X exists with CT0. An attempt is made to upgrade this path to a new path Z with CT1 using an MBB.

Figure 29:  Sharing Bandwidth When an LSP Primary Path is Upgraded to Main CT

In Figure 29 (a), if the path X occupies the bandwidth as shown it can not share the bandwidth with the new path Z being setup. If a condition exists, as shown in Figure 29, (b) the path Z can never be setup on this particular link.

Consider Figure 29 (c). The CT0 has a region that overlaps with CT1 as CT0 has incursion into CT1. This overlap can be shared. However, in order to find whether such an incursion has occurred and how large the region is, it is required to know the reserved bandwidths in each class. Currently, IGP-TE advertises only the unreserved bandwidths. Hence, it is not possible to compute these overlap regions at the head end during CSPF. Moreover, the head end needs to then try and mimic each of the traversed links exactly which increases the complexity.

CSPF at the head-end node will only attempt to signal the LSP path with an upgraded CT if the advertised bandwidth for that CT can accommodate the bandwidth. In other words, it will assume that in the worst case this path will not share bandwidth with another path of the same LSP using a lower CT.

2.5. Advanced MPLS/RSVP Features

This section describes advanced MPLS/RSVP features.

2.5.1. Extending RSVP LSP to use Loopback Interfaces Other than Router-id

It is possible to configure the address of a loopback interface, other than the router-id, as the destination of an RSVP LSP, or a P2MP S2L sub-LSP. In the case of a CSPF LSP, CSPF searches for the best path that matches the constraints across all areas and levels of the IGP where this address is reachable. If the address is the router-id of the destination node, then CSPF selects the best path across all areas and levels of the IGP for that router-id; regardless of which area and level the router-id is reachable as an interface.

In addition, the user can now configure the address of a loopback interface, other than the router-id, as a hop in the LSP path hop definition. If the hop is strict and corresponds to the router-id of the node, the CSPF path can use any TE enabled link to the downstream node, based on best cost. If the hop is strict and does not correspond to the router-id of the node, then CSPF will fail.

2.5.2. LSP Path Change

The tools perform router mpls update-path {lsp lsp-name path current-path-name new-path new-path-name} command instructs MPLS to replace the path of the primary or secondary LSP.

The primary or secondary LSP path is indirectly identified via the current-path-name value. In existing implementation, the same path name cannot be used more than once in a given LSP name.

This command is also supported on an SNMP interface.

This command applies to both CSPF LSP and to a non-CSPF LSP. However, it will only be honored when the specified current-path-name has the adaptive option enabled. The adaptive option can be enabled the LSP level or at the path level.

The new path must be first configured in CLI or provided via SNMP. The configure router mpls path path-name CLI command is used to enter the path.

The command fails if any of the following conditions are satisfied:

  1. The specified current-path-name of this LSP does not have the adaptive option enabled.
  2. The specified new-path-name value does not correspond to a previously defined path.
  3. The specified new-path-name value exists but is being used by any path of the same LSP, including this one.

When the command is executed, MPLS performs the following procedures:

  1. MPLS performs a single MBB attempt to move the LSP path to the new path.
  2. If the MBB is successful, MPLS updates the new path.
    1. MPLS writes the corresponding NHLFE in the data path if this path is the current backup path for the primary.
    2. If the current path is the active LSP path, it will update the path, write the new NHLFE in the data path, which will cause traffic to switch to the new path.
  3. If the MBB is not successful, the path retains its current value.
  4. The update-path MBB has the same priority as the manual re-signal MBB.

2.5.3. Manual LSP Path Switch

This feature provides a new command to move the path of an LSP from a standby secondary to another standby secondary.

The base version of the command allows the path of the LSP to move from a standby (or an active secondary) to another standby of the same priority. If a new standby path with a higher priority or a primary path comes up after the tools perform command is executed, the path re-evaluation command runs and the path is moved to the path specified by the outcome of the re-evaluation.

The CLI command for the base version is:

tools perform router mpls switch-path lsp lsp-name path path-name

The sticky version of the command can be used to move from a standby path to any other standby path regardless of priority. The LSP remains in the specified path until this path goes down or the user performs the no form of the tools perform command.

The CLI commands for the sticky version are:

tools perform router mpls force-switch-path lsp lsp-name path path-name

tools perform router mpls no force-switch-path lsp lsp-name

2.5.4. Make-Before-Break (MBB) Procedures for LSP/Path Parameter Configuration Change

When an LSP is switched from an existing working path to a new path, it is desirable to perform this in a hitless fashion. The Make-Before-Break (MBB) procedure consist of first signaling the new path when it is up, and having the ingress LER move the traffic to the new path. Only then the ingress LER tears down the original path.

MBB procedure is invoked during the following operations:

  1. Timer based and manual re-signal of an LSP path.
  2. Fast-ReRoute (FRR) global revertive procedures.
  3. Soft Pre-emption of an LSP path.
  4. Traffic-Engineering (TE) graceful shutdown procedures.
  5. Update of secondary path due to an update to primary path SRLG.
  6. LSP primary or secondary path name change.
  7. LSP or path configuration parameter change.

In a prior implementation, item 7 covers the following parameters:

  1. Changing the primary or secondary path bandwidth parameter on the fly.
  2. Enabling the frr option for an LSP.

This feature extends the coverage of the MBB procedure to most of the other LSP level and Path level parameters as follows:

  1. Changes to include/exclude of admin groups at LSP and path levels.
    Enabling/disabling LSP level cspf option.
  2. Enabling/disabling LSP level use-te-metric parameter when cspf option is enabled.
  3. Enabling/disabling LSP level propagate-admin-group option.
  4. Enabling/disabling LSP level hop-limit option in the fast-reroute context.
  5. Enabling the LSP level least-fill option.
  6. Enabling/disabling LSP level adspec option.
  7. Changing between node-protect and “no node-protect” (link-protect) values in the LSP level fast-reroute option.
  8. Changing LSP primary or secondary path priority values (setup-priority and hold-priority).
  9. Changing LSP primary or secondary path class-type value and primary path backup-class-type value.
  10. Changing LSP level and path level hop-limit parameter value.
  11. Enabling/disabling primary or secondary path record and record-label options.

This feature is not supported on a manual bypass LSP.

P2MP Tree Level Make-before-break operation is supported if changes are made to the following parameters on LSP-Template:

  1. Changing Bandwidth on P2MP LSP-Template.
  2. Enabling Fast Re-Route on P2MP LSP-Template.

2.5.5. Automatic Creation of RSVP-TE LSP Mesh

This feature enables the automatic creation of an RSVP point-to-point LSP to a destination node whose router-id matches a prefix in the specified peer prefix policy. This LSP type is referred to as auto-LSP of type mesh.

The user can associate multiple templates with the same or different peer prefix policies. Each application of an LSP template with a given prefix in the prefix list will result in the instantiation of a single CSPF computed LSP primary path using the LSP template parameters as long as the prefix corresponds to a router-id for a node in the TE database. Each instantiated LSP will have a unique LSP-id and a unique tunnel-ID.

Up to five (5) peer prefix policies can be associated with a given LSP template at all times. Each time the user executes the above command with the same or different prefix policy associations, or the user changes a prefix policy associated with an LSP template, the system re-evaluates the prefix policy. The outcome of the re-evaluation will tell MPLS if an existing LSP needs to be torn down or if a new LSP needs to be signaled to a destination address that is already in the TE database.

If a /32 prefix is added to (removed from) or if a prefix range is expanded (shrunk) in a prefix list associated with an LSP template, the same prefix policy re-evaluation described above is performed.

The trigger to signal the LSP is when the router with a router-id the matching a prefix in the prefix list appears in the TE database. The signaled LSP is installed in the Tunnel Table Manager (TTM) and is available to applications such as LDP-over-RSVP, resolution of BGP label routes, resolution of BGP, IGP, and static routes. It is, however, not available to be used as a provisioned SDP for explicit binding or auto-binding by services.

If the one-hop option is specified instead of a prefix policy, this command enables the automatic signaling of one-hop point-to-point LSPs using the specified template to all directly connected neighbors. This LSP type is referred to as auto-LSP of type one-hop. Although the provisioning model and CLI syntax differ from that of a mesh LSP only by the absence of a prefix list, the actual behavior is quite different. When the above command is executed, the TE database will keep track of each TE link that comes up to a directly connected IGP neighbor whose router-id is discovered. It then instructs MPLS to signal an LSP with a destination address matching the router-id of the neighbor and with a strict hop consisting of the address of the interface used by the TE link. The auto-lsp command with the one-hop option will result in one or more LSPs signaled to the neighboring router.

An auto-created mesh or one-hop LSP can have egress statistics collected at the ingress LER by adding the egress-statistics node configuration into the LSP template. The user can also have ingress statistics collected at the egress LER using the same ingress-statistics node in CLI used with a provisioned LSP. The user must specify the full LSP name as signaled by the ingress LER in the RSVP session name field of the Session Attribute object in the received Path message.

2.5.5.1. Automatic Creation of RSVP Mesh LSP: Configuration and Behavior

2.5.5.1.1. Feature Configuration

The user first creates an LSP template of type mesh P2P:

config>router>mpls>lsp-template template-name mesh-p2p

Inside the template the user configures the common LSP and path level parameters or options shared by all LSPs using this template.

Then the user references the peer prefix list which is defined inside a policy statement defined in the global policy manager.

config>router>mpls>auto-lsp lsp-template template-name policy peer-prefix-policy

The user can associate multiple templates with same or different peer prefix policies. Each application of an LSP template with a given prefix in the prefix list will result in the instantiation of a single CSPF computed LSP primary path using the LSP template parameters as long as the prefix corresponds to a router-id for a node in the TE database. This feature does not support the automatic signaling of a secondary path for an LSP. If the user requires the signaling of multiple LSPs to the same destination node, he/she must apply a separate LSP template to the same or different prefix list which contains the same destination node. Each instantiated LSP will have a unique LSP-id and a unique tunnel-ID. This feature also does not support the signaling of a non-CSPF LSP. The selection of the no cspf option in the LSP template is therefore blocked.

Up to 5 peer prefix policies can be associated with a given LSP template at all times. Each time the user executes the above command, with the same or different prefix policy associations, or the user changes a prefix policy associated with an LSP template, the system re-evaluates the prefix policy. The outcome of the re-evaluation will tell MPLS if an existing LSP needs to be torn down or a new LSP needs to be signaled to a destination address which is already in the TE database.

If a /32 prefix is added to (removed from) or if a prefix range is expanded (shrunk) in a prefix list associated with an LSP template, the same prefix policy re-evaluation described above is performed.

The user must perform a no shutdown of the template before it takes effect. Once a template is in use, the user must shutdown the template before effecting any changes to the parameters except for those LSP parameters for which the change can be handled with the Make-Before-Break (MBB) procedures. These parameters are bandwidth and enabling fast-reroute with or without the hop-limit or node-protect options. For all other parameters, the user shuts down the template and once a it is added, removed or modified, the existing instances of the LSP using this template are torn down and re-signaled.

Finally the auto-created mesh LSP can be signaled over both numbered and unnumbered RSVP interfaces.

2.5.5.1.2. Feature Behavior

Whether the prefix list contains one or more specific /32 addresses or a range of addresses, an external trigger is required to indicate to MPLS to instantiate an LSP to a node which address matches an entry in the prefix list. The objective of the feature is to provide an automatic creation of a mesh of RSVP LSP to achieve automatic tunneling of LDP-over-RSVP. The external trigger is when the router with the router-id matching an address in the prefix list appears in the TE database. In the latter case, the TE database provides the trigger to MPLS which means this feature operates with CSPF LSP only.

Each instantiation of an LSP template results in RSVP signaling and installing state of a primary path for the LSP to the destination router. The auto- LSP is installed in the Tunnel Table Manager (TTM) and is available to applications such as LDP-over-RSVP, resolution of BGP label routes, resolution of BGP, IGP, and static routes. The auto-LSP can also be used for auto-binding by a VPRN service. The auto-LSP is however not available to be used in a provisioned SDP for explicit binding by services. Therefore, an auto-LSP can also not be used directly for auto-binding of a PW template with the use-provisioned-sdp option in BGP-AD VPLS or FEC129 VLL service. However, an auto-binding of a PW template to an LDP LSP, which is then tunneled over an RSVP auto-LSP is supported.

If the user changes the bandwidth parameter in the LSP template, an MBB is performed for all LSPs using the template. If however the auto-bandwidth option was enabled in the template, the bandwidth parameter change is saved but will only take effect at the next time the LSP bounces or is re-signaled.

Except for the MBB limitations to the configuration parameter change in the LSP template, MBB procedures for manual and timer based re-signaling of the LSP, for TE Graceful Shutdown and for soft pre-emption are supported.

Note that the use of the tools perform router mpls update-path command with a mesh LSP is not supported.

The one-to-one option under fast-reroute is also not supported.

If while the LSP is UP, with the bypass backup path activated or not, the TE database loses the router-id, it will perform an update to MPLS module which will state router-id is no longer in TE database. This will cause MPLS to tear down all mesh LSPs to this router-id. Note however that if the destination router is not a neighbor of the ingress LER and the user shuts down the IGP instance in the destination router, the router-id corresponding to the IGP instance will only be deleted from the TE database in the ingress LER after the LSA/LSP ages out. If the user brought back up the IGP instance before the LSA/LSP aged out, the ingress LER will delete and re-install the same router-id at the receipt of the updated LSA/LSP. In other words, the RSVP LSPs destined to this router-id will get deleted and re-established. All other failure conditions will cause the LSP to activate the bypass backup LSP or to go down without being deleted.

2.5.5.1.3. Multi-Area and Multi-Instance Support

A router which does not have TE links within a given IGP area/level will not have its router-id discovered in the TE database by other routers in this area/level. In other words, an auto-LSP of type P2P mesh cannot be signaled to a router which does not participate in the area/level of the ingress LER.

A mesh LSP can however be signaled using TE links all belonging to the same IGP area even if the router-id of the ingress and egress routers are interfaces reachable in a different area. In this case, the LSP is considered to be an intra-area LSP.

If multiple instances of ISIS or OSPF are configured on a router, each with its own router-id value, the TE database in other routers are able to discover TE links advertised by each instance. In such a case, an instance of an LSP can be signaled to each router-id with a CSPF path computed using TE links within each instance.

Finally, if multiple instances of ISIS or OSPF are configured on a destination router each with the same router-id value, a single instance of LSP is signaled from other routers. If the user shuts down one IGP instance, this is no op as long as the other IGP instances remain up. The LSP will remain up and will forward traffic using the same TE links. The same behavior exists with a provisioned LSP.

2.5.5.1.4. Mesh LSP Name Encoding and Statistics

When the ingress LER signals the path of a mesh auto-LSP, it includes the name of the LSP and that of the path in the Session Name field of the Session Attribute object in the Path message. The encoding is as follows:

Session Name: <lsp-name::path-name>, where lsp-name component is encoded as follows:

TemplateName-DestIpv4Address-TunnelId

Where DestIpv4Address is the address of the destination of the auto-created LSP.

At ingress LER, the user can enable egress statistics for the auto-created mesh LSP by adding the following configuration to the LSP template:

config
    router
        [no] mpls
             lsp-template template-name mesh-p2p]
             no lsp-template template-name
                  [no] egress-statistics
                       accounting-policy policy-id
                       no accounting-policy
                       no] collect-stats

If there are no stat indices available when an LSP is instantiated, the assignment is failed and the egress-statistics field in the show command for the LSP path is in the operational DOWN state but in admin UP state.

An auto-created mesh LSP can also have ingress statistics enabled on the egress LER as long as the user specifies the full LSP name following the above syntax.

config>router>mpls>ingress-statistics>lsp lsp-name sender ip-address

2.5.5.2. Automatic Creation of RSVP One-Hop LSP: Configuration and Behavior

2.5.5.2.1. Feature Configuration

The user first creates an LSP template of type one-hop:

config>router>mpls>lsp-template template-name one-hop-p2p

Then the user enables the automatic signaling of one-hop LSP to all direct neighbors using the following command:

config>router>mpls>auto-lsp lsp-template template-name one-hop

The LSP and path parameters and options supported in an LSP template of type one-hop-p2p are that same as in the LSP template of type mesh-p2p except for the parameter from which is not allowed in a template of type one-hop-p2p. The show command for the auto-LSP displays the actual outgoing interface address in the ‘from’ field.

Finally the auto-created one-hop LSP can be signaled over both numbered and unnumbered RSVP interfaces.

2.5.5.2.2. Feature Behavior

Although the provisioning model and CLI syntax differ from that of a mesh LSP only by the absence of a prefix list, the actual behavior is quite different. When the above command is executed, the TE database will keep track of each TE link which comes up to a directly connected IGP neighbor which router-id is discovered. It then instructs MPLS to signals an LSP with a destination address matching the router-id of the neighbor and with a strict hop consisting of the address of the interface used by the TE link. Therefore, the auto-lsp command with the one-hop option will result in one or more LSPs signaled to the IGP neighbor.

Only the router-id of the first IGP instance of the neighbor which advertises a TE link will cause the LSP to be signaled. If subsequently another IGP instance with a different router-id advertises the same TE link, no action is taken and the existing LSP is kept up. If the router-id originally used disappears from the TE database, the LSP is kept up and is associated now with the other router-id.

The state of a one-hop LSP once signaled follows the following behavior:

  1. If the interface used by the TE link goes down or BFD times out and the RSVP interface registered with BFD, the LSP path moves to the bypass backup LSP if the primary path is associated with one.
  2. If while the one-hop LSP is UP, with the bypass backup path activated or not, the association of the TE-link with a router-id is removed in the TE databases, the one-hop LSP is torn down. This would be the case if the interface used by the TE link is deleted or if the interface is shutdown in the context of RSVP.
  3. If while the LSP is UP, with the bypass backup path activated or not, the TE database loses the router-id, it will perform two separate updates to MPLS module. The first one updates the loss of the TE link association which will cause action (B) above for the one-hop LSP. The other update will state router-id is no longer in TE database which will cause MPLS to tear down all mesh LSPs to this router-id. A shutdown at the neighbor of the IGP instance which advertised the router-id will cause the router-id to be removed from the ingress LER node immediately after the last IGP adjacency is lost and is not subject to age-out as for a non-directly connected destination router.

All other feature behavior, limitations, and statistics support are the same as for an auto-LSP of type mesh-p2p.

2.5.6. IGP Shortcut and Forwarding Adjacency

RSVP-TE LSP or SR-TE LSP shortcut for IGP route resolution allows forwarding of packets to IGP learned routes using an RSVP-TE LSP. This is also referred to as IGP shortcut. This feature instructs IGP to include RSVP-TE LSPs and SR-TE LSPs originating on this node and terminating on the router ID of a remote node as direct links with a metric equal to the metric provided by MPLS. Note that Dijkstra will always use the IGP metric to build the SPF tree and the LSP metric value does not update the SPF tree calculation. During the IP reach to determine the reachability of nodes and prefixes, LSPs are then overlaid and the LSP metric is used to determine the subset of paths which are equal lowest cost to reach a node or a prefix. If the user enabled the relative-metric option for this LSP, IGP will apply the shortest IGP cost between the endpoints of the LSP plus the value of the offset, instead of the LSP operational metric, when computing the cost of a prefix which is resolved to the LSP.

When a prefix is resolved to a tunnel next hop, the packet is sent labeled with the label stack corresponding to the NHLFE of the RSVP LSP and the explicit-null IPv6 label at the bottom of the stack in the case of an IPv6 prefix. Any network event causing an RSVP LSP to go down will trigger a full SPF computation which may result in installing a new route over another RSVP LSP shortcut as tunnel next hop or over a regular IP next hop.

When igp-shortcut is enabled at the IGP instance level, all RSVP-TE and SR-TE LSPs originating on this node are eligible by default as long as the destination address of the LSP, as configured in config>router>mpls>lsp>to, corresponds to a router-id of a remote node. LSPs with a destination corresponding to an interface address or any other loopback interface address of a remote node are automatically not considered by IS-IS or OSPF. The user can, however, exclude a specific RSVP-TE LSP or a SR-TE LSP from being used as a shortcut for resolving IGP routes as explained in IGP Shortcut Feature Configuration.

It is specifically recommended to disable the igp-shortcut option on RSVP LSP which has the cspf option disabled unless the full explicit path of the LSP is provided in the path definition. MPLS tracks in RTM the destination or the first loose-hop in the path of a non CSPF LSP and as such this can cause bouncing when used within IGP shortcuts.

The SPF in OSPF or IS-IS only uses RSVP LSPs as forwarding adjacencies, IGP shortcuts, or as endpoints for LDP-over-RSVP. These applications of RSVP LSPs are mutually exclusive at the IGP instance level. If two or more options are enabled in the same IGP instance, forwarding adjacency takes precedence over the shortcut application which takes precedence over the LDP-over-RSVP application. The SPF in IGP uses SR-TE LSPs as IGP shortcuts only.

Table 10 summarizes the outcome in terms of RSVP LSP role of mixing these configuration options.

Table 10:  RSVP LSP Role As Outcome of LSP level and IGP level configuration options

IGP Instance level configurations

LSP level configuration

advertise-tunnel-link enabled / igp-shortcut enabled / ldp-over-rsvp enabled

advertise-tunnel-link enabled / igp-shortcut enabled / ldp-over-rsvp disabled

advertise-tunnel-link enabled / igp-shortcut disabled / ldp-over-rsvp disabled

advertise-tunnel-link disabled / igp-shortcut disabled / ldp-over-rsvp disabled

advertise-tunnel-link disabled / igp-shortcut enabled / ldp-over-rsvp enabled

advertise-tunnel-link disabled / igp-shortcut disabled / ldp-over-rsvp enabled

igp-shortcut enabled / ldp-over-rsvp enabled

Forwarding Adjacency

Forwarding Adjacency

Forwarding Adjacency

None

IGP

Shortcut

LDP-over-RSVP

igp-shortcut enabled / ldp-over-rsvp disabled

Forwarding Adjacency

Forwarding Adjacency

Forwarding Adjacency

None

IGP

Shortcut

None

igp-shortcut disabled / ldp-over-rsvp enabled

None

None

None

None

None

LDP-over-RSVP

igp-shortcut disabled / ldp-over-rsvp disabled

None

None

None

None

None

None

The igp-shortcut shutdown command disables the resolution of IGP routes using IGP shortcuts.

2.5.6.1. IGP Shortcut Feature Configuration

The following CLI objects enable the resolution over IGP IPv4 shortcuts of IPv4 and IPv6 prefixes within an ISIS instance, of IPv6 prefixes within an OSPFv3 instance, and of IPv4 prefixes within an OSPFv2 instance.

A:Reno 194# configure router isis
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv4, ipv6}
                             resolution {any|disabled|filter|match-family-ip}
                             resolution-filter
                                   [no] rsvp
                                   exit
                              exit
                      exit
                 exit
A:Reno 194# configure router ospf
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv4}
                             resolution {any|disabled|filter|match-family-ip}
                             resolution-filter
                                   [no] rsvp
                                   exit
                              exit
                      exit
                 exit
A:Reno 194# configure router ospf3#
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv6}
                             resolution {any|disabled|filter}
                             resolution-filter
                                   [no] rsvp
                                   exit
                              exit
                      exit
                 exit

The new resolution node igp-shortcut is introduced to provide flexibility in the selection of the IP next hops or the tunnel types for each of the IPv4 and IPv6 prefix families.

When the IPv4 family option is enabled, the IS-IS or OSPF SPF includes the IPv4 IGP shortcuts in the IP reach calculation of IPv4 nodes and prefixes. RSVP-TE LSPs terminating on a node identified by its router ID can be used to reach IPv4 prefixes owned by this node or for which this node is the IPv4 next hop.

When the IPv6 family option is enabled, the IS-IS or OSPFv3 SPF includes the IPv4 IGP shortcuts in the IP reach calculation of IPv6 nodes and prefixes. RSVP-TE LSPs terminating on a node identified by its router ID can be used to reach IPv6 prefixes owned by this node or for which this node is the IPv6 next hop. The IPv6 option is supported in both ISIS MT=0 and MT=2.

The IS-IS or OSPFv3 IPv6 routes resolved to IPv4 IGP shortcuts are used to forward packets of IS-IS or OSPFv3 prefixes matching these routes but are also used to resolve the BGP next hop of BGP IPv6 prefixes, resolve the indirect next hop of static IPv6 routes, and forward CPM-originated IPv6 packets.

In the data path, a packet for an IPv6 prefix has a label stack that consists of the IPv6 Explicit-Null label value of 2 at the bottom of the label stack followed by the label of the IPv4 RSVP-TE LSP.

The following commands provide control of the use of an RSVP-TE LSP in IGP shortcuts:

  1. config>router>mpls>lsp# [no] igp-shortcut lfa-protect | lfa-only]
  2. config>router>mpls>lsp# igp-shortcut relative-metric offset

An LSP can be excluded from being used as an IGP shortcut for forwarding IPv4 and IPv6 prefixes, or the LSP in the LFA SPF can be used to protect the primary IP next hop of an IPv4 or IPv6 prefix.

2.5.6.1.1. IGP Shortcut Binding Construct

The SR OS tunnel-next-hop construct binds IP prefixes to IPv4 IGP shortcuts on a per-prefix family basis.

The following details the behavior of the construct.

  1. The construct supports the IPv4 and IPv6 families. It allows each family to resolve independently to either an IGP shortcut next hop using the unicast RTM or to the IP next hop using the multicast RTM.
  2. The advertise-tunnel-link (forwarding adjacency) takes priority over igp-shortcut if both CLI options are enabled. This is overall and not per family. However, the forwarding adjacency does not support the IPv6 family. If the IPv6 family is enabled over IPv4 IGP shortcuts, and advertise-tunnel-link is then subsequently enabled, only the IPv4 family makes use of the IPv4 forwarding adjacency. IPv6 prefixes resolve to IPv6 next hops as normal.
  3. The advertise-tunnel-link and segment-routing CLI options are mutually exclusive.
  4. The following commands are enabled based on the following relative priorities (from highest to lowest):
    1. advertise-tunnel-link (IPv4 family only)
    1. igp-shortcut (IPv4 family in OSPF, IPv6 family in OSPFv3, and IPv4 and IPv6 families in IS-IS)
    1. ldp-over-rsvp (IPv4 FECs only)
  5. No default behavior exists for IPv4 prefixes to automatically resolve to RSVP LSPs used as IGP shortcut by enabling the igp-shortcut context only. The IPv4 family must be enabled and the resolution-filter set to the value of rsvp which selects the RSVP-TE tunnel type.
  6. A [no] shutdown command under the igp-shortcut context enforces that the IGP shortcut context cannot be enabled unless at least one family is configured under the tunnel-next-hop node to a value other than resolution disabled, which is the default value for all families and that a tunnel type is selected if the resolution is set to filter.
  7. To disable IGP shortcuts globally, shutdown the igp-shortcut context.
  8. When computing the backup next hop of an IPv4 or IPv6 prefix, LFA considers the IP links and tunnels of the selected tunnel type which are the result of the configuration of the tunnel-next-hop for the IPv4 or IPv6 prefix family.

The resolution outcome for each of the IPv4 and IPv6 prefix families is summarized in Table 11. The description and behavior of the SRv4 and SRv6 families are described in SR Shortest Path Tunnel Over RSVP-TE IGP Shortcut Feature Configuration. The description and behavior of the sr-te resolution option using SR-TE IGP shortcuts are described in IPv4 IGP Shortcuts using SR-TE LSP Feature Configuration.

Table 11:  IGP Shortcut Binding Resolution Outcome

igp-shortcut

CLI context

IP family

(v4/v6)

CLI config

SR family

(v4/v6)

CLI config

IPv4 ECMP

NH SET

Computed

SRv4 ECMP

NH SET

Computed

IPv6 ECMP

NH SET

Computed

SRv6 ECMP

NH SET

Computed

0

shutdown

N/A

N/A

IP (unicast RTM)

IP (mcast RTM)

IP (unicast RTM)

IP (mcast RTM)

1

no shutdown

resolution disabled

resolution disabled

IP (mcast RTM)

IP (mcast RTM)

IP (mcast RTM)

IP (mcast RTM)

resolution match-family-ip

IP (mcast RTM)

IP (mcast RTM)

IP (mcast RTM)

IP (mcast RTM)

2

no shutdown

resolution-filter {rsvp}

resolution disabled

RSVP+IP

IP (mcast RTM)

RSVP+IP

IP (mcast RTM)

resolution match-family-ip

RSVP+IP

RSVP+IP

RSVP+IP

RSVP+IP

3

no shutdown

resolution-filter {sr-te}

resolution disabled

SRTE+IP

IP (mcast RTM)

SRTE+IP

IP (mcast RTM)

resolution match-family-ip

SRTE+IP

IP (mcast RTM)

SRTE+IP

IP (mcast RTM)

4

no shutdown

resolution {any}/resolution-filter {rsvp,sr-te}

resolution disabled

RSVP+IP

IP (mcast RTM)

RSVP+IP

IP (mcast RTM)

SRTE+IP

IP (mcast RTM)

SRTE+IP

IP (mcast RTM)

resolution match-family-ip

RSVP+IP

RSVP+IP

RSVP+IP

RSVP+IP

SRTE+IP

IP (mcast RTM)

SRTE+IP

IP (mcast RTM)

2.5.6.2. IPv4 IGP Shortcuts using SR-TE LSP Feature Configuration

The configuration value of sr-te is added to the resolution-filter context of the igp-shortcut construct. When enabled, this value allows IGP to resolve IPv4 prefixes, IPv6 prefixes, and LDP IPv4 prefix FECs over SR-TE LSPs used as IGP shortcuts.

In addition, the value of any in the resolution-filter context allows the user to resolve IP prefixes and LDP FECs to either RSVP-TE or SR-TE LSPs used as IGP shortcuts.

A:Reno 194# configure router isis
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv4, ipv6}
                             resolution {any|disabled|filter|match-family-ip}
                             resolution-filter
                                   [no] rsvp
                                   [no] sr-te
                                   exit
                             exit
                      exit
                 exit
A:Reno 194# configure router ospf
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv4}
                             resolution {any|disabled|filter|match-family-ip}
                             resolution-filter
                                   [no] rsvp
                                   [no] sr-te
                                   exit
                             exit
                      exit
                 exit
A:Reno 194# configure router ospf3
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {ipv6}
                             resolution {any|disabled|filter}
                             resolution-filter
                                   [no] rsvp
                                   [no] sr-te
                                   exit
                             exit
                      exit
                 exit

See Family Prefix Resolution and Tunnel Selection Rules for an explanation of the rules for the resolution of IPv4 prefixes, IPv6 prefixes, and LDP FECs, and for the selection of the tunnel types on a per family basis.

2.5.6.2.1. Family Prefix Resolution and Tunnel Selection Rules

The IGP instance SPF routine performs the Dijkstra tree calculation on the topology with IP links only and saves the information in both the unicast routing table and in the multicast routing table. It then performs the IP reach calculation in the multicast routing table for each prefix family that disabled IGP shortcuts. Concurrently, it lays the tunnels on the tree and performs the IP reach calculation in the unicast routing table for each prefix family that enabled IGP shortcuts.

The following are the details of the resolution of prefix families in the unicast or multicast routing tables.

  1. OSPF supports IPv4 prefixes by enabling family=ipv4. IPv4 prefix resolution in the unicast routing table can mix IP and tunnel next hops with the preference given to tunnel next hops. A maximum of 64 ECMP tunnel and IP next hops can be programmed for an IPv4 prefix.
  2. OSPFv3 supports IPv6 prefixes by enabling family=ipv6. IPv6 prefix resolution in the unicast routing table can mix IP and tunnel next hops with the preference given to tunnel next hops. A maximum of 64 ECMP tunnel and IP next hops can be programmed for an IPv6 prefix.
  3. IS-IS supports IPv4 prefixes in MT=0 by enabling family=ipv4 and ipv6 prefixes in both MT=0 and MT=2 by enabling family=ipv6. IPv4 and IPv6 prefix resolution in the unicast routing table can mix IP and tunnel next hops with the preference given to tunnel next hops. A maximum of 64 ECMP tunnel and IP next hops can be programmed for an IPv4 or IPv6 prefix.
  4. family=ipv4 also enables the resolution in the unicast routing table of LDP IPv4 prefix FEC in OSPF or IS-IS. When prefer-tunnel-in-tunnel is enabled (disabled) in LDP, an LDP FEC selects tunnel next hops (IP next hops) only and does not mix these next hop types when both are eligible in the unicast routing table.
    A maximum of 32 ECMP tunnels next hops can be programmed for a LDP FEC.
    LDP IPv6 prefix FECs are not supported over IPv4 IGP shortcuts when enabling family=ipv6. A consequence of this is that if the corresponding IPv6 prefix resolves to tunnel next hops only, the LDP IPv6 prefix FEC will remain unresolved.
  5. In all cases, the IP reach calculation in the unicast routing table will first follow the ECMP tunnel and IP next hop selection rules, described in ECMP Considerations, when resolving a prefix over IGP shortcuts. After the set of ECMP tunnel and IP next hops have been selected, the preference of tunnel type is then applied based on the user setting of the resolution of the family of the prefix. If the user enabled resolution of the prefix family to both RSVP-TE and SR-TE tunnel types, the TTM tunnel preference value is used to select one type for the prefix. In other words, RSVP-TE LSP type is preferred to a SR-TE LSP type on a per-prefix basis.
  6. One or more SR-TE LSPs can be selected in the unicast routing table if resolution=filter and the resolution-filter=sr-te.
  7. One or more SR-TE LSPs can also be selected in the unicast routing table if resolution=any and one or more SR-TE LSPs are available but no RSVP-TE LSPs are available for resolving the prefix by IGP.
  8. An intra-area IP prefix of family=ipv4, or family=ipv6, or an LDP IPv4 prefix FEC always resolves to a single type of tunnel rsvp-te or sr-te. rsvp-te type is preferred if both types are allowed by the prefix family resolution and both types exist in the set of tunnel next hops of the prefix. The feature does not support mixing tunnel types per prefix.
  9. An inter-area IP prefix of family=ipv4, or family=ipv6, or an LDP IPv4 prefix FECs always resolves to a single tunnel type and selects the tunnel next hops to the advertising ABR node from the most preferred tunnel type if the prefix family resolution allowed both types. If the prefix resolves to multiple ABR next hops, ABR nodes with the preferred tunnel type are selected. In other words, if RSVP-TE LSPs exist to at least one ABR node, ABR nodes that are the tail-end of only SR-TE LSPs will not be used in the set of ECMP tunnel next hops for the inter-area prefix.
  10. The feature does not support configuring a different tunnel type per prefix family in resolution-filter. The no shutdown command within the igp-shortcut context fails if the user configured family=ipv4 to resolve to sr-te and family=ipv6 to rsvp-te or vice-versa. This is true for both inter-area and intra-area prefixes.
    The feature does, however, support selecting the best tunnel-type per prefix within each family as explained in ( e). For instance, family=ipv4 and family=ipv6 can both configure resolution=any. On a per prefix-basis, the best tunnel type is selected, thus allowing both tunnel types to be deployed in the network.
  11. The user can set resolution=disabled for each family independently, which disables IGP shortcuts for the corresponding prefix family in this IGP instance. IP Prefixes and LDP FECs of this family will resolve over IP links in the multicast routing table.

2.5.6.2.2. Application Support

SR-TE IGP shortcuts can be used in the following applications.

  1. family=ipv4 resolves IPv4 prefixes in RTM for the following:
    1. IGP routes
    2. indirect next hop of static routes
    3. BGP next hop of BGP routes
    4. LDP IPv4 prefix FEC
  2. family=ipv6 resolves IPv6 prefixes in RTM for the following:
    1. IGP routes
    2. indirect next hop of static routes
    3. BGP next hop of BGP routes
  3. When an LDP IPv4 FEC prefix is resolved to one or more SR-TE LSPs, then the following applications can resolve to LDP in TTM:
    1. L2 service FECs
    2. BGP next hop of VPN IPv4/IPv6 prefixes
    3. BGP next hop of EVPN routes
    4. BGP next hop of IPv4 prefixes
    5. BGP next hop of IPv6 prefixes (6PE)
    6. IGP IPv4 routes (ldp-shortcut feature)
    7. indirect next hop of IPv4 static routes
  4. When an LDP IPv4 FEC prefix is resolved to one or more SR-TE LSPs, then the following applications cannot resolve to LDP in TTM:
    1. next hop of BGP LU routes
      Note:

      Next hops of BGP LU routes cannot resolve to LDP in TTM because SR OS supports three levels of hierarchy in the data path and, because SR-TE LSP is a hierarchical LSP already, this makes the BGP-over-LDP-over-SRTE a 4-level hierarchy. BGP will keep these BGP-LU routes unresolved.

2.5.6.2.3. Loop-free Alternate (LFA) Protection Support

The following are the details of the Loop-free Alternate (LFA) Protection Support.

  1. Prefixes that use one or more SR-TE LSPs as their primary next hops are automatically protected by one of the LFA features, base LFA, remote LFA, or TI-LFA, when enabled on any of the SR-TE LSPs.
  2. If the user specifies the lfa-only option for a specified SR-TE LSP, then if the application prefix has a single IP primary next hop (no ECMP next hops). It is protected by an LFA backup, which can use an SR-TE LSP.
    Note:

    The LFA SPF calculation cannot check that the outgoing interface of the protecting SR-TE LSP is different from the primary next hop of the prefix. The prefix will still be protected by either the ECMP next hops or the LFA backup next hop of the first segment of the protecting SR-TE LSP. This is a difference in behavior with that of an RSVP-TE LSP used with the lfa-only option. In that case, such an LSP is excluded from being used as a LFA backup next hop.

  3. Application prefixes that resolve in TTM to an LDP IPv4 prefix FEC, which itself is resolved to one or more SR-TE LSPs, are equally protected either by the SR-TE LSP FRR ( a) or the LDP LFA backup using an SR-TE LSP ( b).
  4. Assume resolution=disabled for one prefix family (for example, IPv6) while it is enabled to sr-te for the other (for example, IPv4). Also, assume a node is resolving an IPv6 prefix and an IPv4 prefix, both of which share the same downstream parent node in the Dijkstra tree. If the IPv4 prefix is protected by the LFA of one or more SR-TE LSP primary next hops ( a), the feature supports computing a LFA IP backup next hop for the IPv6 prefix which is resolved to a IP primary next hop. This behavior aligns with the behavior over RSVP-TE LSP used as IGP shortcut for IPv6 and IPv4 prefixes.
  5. Assume resolution=disabled for one prefix family (for example, IPv6) while it is enabled to sr-te for the other (for example, IPv4). Also, assume a node is resolving an IPv6 prefix and an IPv4 prefix, both of which share the same downstream parent node in the Dijkstra tree. If the IPv4 prefix resolves to a single primary IP next hop but is protected by the LFA backup next hop that uses an SR-TE LSP ( b), the feature does not support computing an LFA IP backup next hop for IPv6 prefix, which then remains unprotected. This is a limitation of the feature that also exists with RSVP-TE LSP used as IGP shortcut for IPv6 and IPv4 prefixes.
    This behavior also applies if the configuration of the resolution command for IPv4 and IPv6 families are reversed.
    If the user enabled the remote LFA or the TI-LFA feature and enabled the use of SR IPv6 or SR IPv6 tunnels as an LFA backup next hop by the LDP IPv6 or IPv4 FEC prefix (LDP fast-reroute backup-sr-tunnel option), the LDP FEC is protected if such a backup SR tunnel is found.

2.5.6.3. SR Shortest Path Tunnel Over RSVP-TE IGP Shortcut Feature Configuration

Two prefix family values of srv4 and srv6 are added to the igp-shortcut construct.

When enabled, the srv4 value allows IGP to resolve SR-ISIS IPv4 tunnels in MT=0 or SR-OSPF IPv4 tunnels over RSVP-TE LSPs used as IGP shortcuts.

When enabled, the srv6 value allows IGP to resolve SR-ISIS IPv6 tunnels in MT=0 over RSVP-TE LSPs used as IGP shortcuts.

A:Reno 194# configure router isis
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {srv4, srv6}
                             resolution {disabled | match-family-ip}
                             exit
                      exit
                 exit
A:Reno 194# configure router ospf
           igp-shortcut
                 [no] shutdown
                 tunnel-next-hop
                      family {srv4}
                             resolution {disabled | match-family-ip}
                             exit
                      exit
                 exit

See Family Prefix Resolution and Tunnel Selection Rules for an explanation of the rul es for the resolution of SR-ISIS IPv4 tunnels, SR-ISIS IPv6 tunnels, and SR-OSPF IPV4 tunnels, and the selection of the tunnel types on a per-family basis.

2.5.6.3.1. Family Prefix Resolution and Tunnel Selection Rules

The following are the details of the resolution of prefix families in the unicast or multicast routing tables.

  1. family=srv4 enables the resolution of SR-OSPF IPv4 tunnels and SR-ISIS IPv4 tunnels in MT=0 over RSVP-TE IPv4 IGP shortcuts. A maximum of 32 ECMP tunnel next hops can be programmed for an SR-OSPF or an SR-ISIS IPv4 tunnel.
  2. family=srv6 enables the resolution of SR-ISIS IPv6 tunnels in MT=0 over RSVP-TE IPv4 IGP shortcuts. A maximum of 32 ECMP tunnel next hops can be programmed for an SR-ISIS IPv6 tunnel.
    Note:

    Segment routing is not supported in IS-IS MT=2.

  3. One or more RSVP-TE LSPs can be selected if resolution=match-family-ip and the corresponding IPv4 or IPv6 prefix is resolved to RSVP-TE LSPs.
  4. An SR tunnel cannot resolve to SR-TE IGP shortcuts. If resolution=match-family-ip and the corresponding IPv4 or IPv6 prefix is resolved to SR-TE LSPs, the SR tunnel is resolved to IP next hops in the multicast routing table.
  5. For an SR tunnel corresponding to an inter-area prefix with best routes via multiple ABRs, setting resolution=match-family-ip means the SR tunnel can resolve to RSVP-TE LSPs to one or more ABR nodes. If, however, only SR-TE LSPs exist to any of the ABR nodes, IGP will not include this ABR in the selection of ECMP next hops for the tunnel. If there exists no RSVP-TE LSPs to all ABR nodes, the inter-area prefix is resolved to IP next hops in the multicast routing table.
    Note:

    While this feature is intended to tunnel SR-ISIS IPv4 and IPv6 tunnels and SR-OSPF IPv4 tunnels over RSVP-TE IPv4 IGP shortcuts, an SR-TE LSP that has its first segment (ingress LER role) or its next segment (LSR role) correspond to one of these SR-ISIS or SR-OSPF tunnels will also be tunneled over RSVP-TE LSP.

  6. resolution=disabled is the default value for the srv4 and srv6 families and means that SR-ISIS and SR-OSPF tunnels are resolved to IP links in the multicast routing table.

2.5.6.3.2. Application Support

The following describes how SR-ISIS IPv4 or IPv6 or a SR-OSPF IPv4 tunnels are resolved.

  1. When an SR-ISIS IPv4 or an SR-OSPF IPv4 tunnel is resolved to one or more RSVP-TE LSPs, then the following applications can resolve to the SR-ISIS or SR-OSPF tunnel in TTM:
    1. L2 service FECs
    2. BGP next hop of VPN IPv4/IPv6 prefixes
    3. BGP next hop of EVPN routes
    4. BGP next hop of IPv4 prefixes
    5. BGP next hop of IPv6 prefixes (6PE)
    6. next hop of a BGP LU IPv4 route
    7. indirect next hop of IPv4 static routes
  2. When an SR-ISIS IPv6 tunnel is resolved to one or more RSVP-TE LSPs, then the following applications can resolve to the SR-ISIS tunnel in TTM:
    1. L2 service FECs
    2. next hop of VPN-IPv4 and VPN-IPv6 over a spoke-sdp interface using the SR tunnel
    3. indirect next hop of IPv6 static routes
  3. When an SR-ISIS IPv4 or an SR-OSPF IPv4 tunnel is resolved to one or more RSVP-TE LSPs, then the following applications cannot resolve in TTM to a SR-TE LSP that is using an SR-ISIS or SR-OSPF segment:
    1. next hop of a BGP LU route
      Note:

      Next hops of BGP LU routes cannot resolve to LDP in TTM to a SR-TE LSP that is using an SR-ISIS or SR-OSPF segment because SR OS supports three levels of hierarchy in the data path and, because SR-TE LSP is a hierarchical LSP already, this makes the BGP-over-SRTE-over-RSVPTE a 4-level hierarchy. BGP will keep these BGP-LU routes unresolved.

2.5.6.3.3. Loop-free Alternate (LFA) Protection Support

The following are the details of the Loop-free Alternate (LFA) Protection Support.

  1. Prefixes that resolve to one or more RSVP-TE LSPs as their primary next hops are automatically protected by RSVP-TE LSP FRR if enabled.
  2. If the user specifies the lfa-only option for a specified RSVP-TE LSP, then if the SR-ISIS or SR-OSPF has a single IP primary next hop (no ECMP next hops), it is protected by a FRR backup that can use a RSVP-TE LSP.
  3. Applications that resolve in TTM to an SR-ISIS or SR-OSPF, which itself is resolved to one or more RSVP-TE LSPs, will equally be protected either by the RSVP-TE LSP FRR ( a) or the SR LFA using a RSVP-TE LSP ( b).
  4. Assume family=ipv4 resolves to RSVP-TE in the unicast routing table while family=srv4 resolves to IP links in the multicast routing table. If the IP prefix of an SR tunnel is resolved to a RSVP-TE LSP primary next hop, and is protected by RSVP-TE LSP FRR ( a), this feature supports computing an LFA next hop for the SRv4 tunnel of the same prefix using IP next hops.
  5. Assume family=ipv4 or family=ipv6 resolves to RSVP-TE in the unicast routing table while family=srv4 or family=srv6 resolves to IP links in the multicast routing table. If the IP prefix of an SRv4 or SRv6 tunnel is resolved to a single IP primary next hop and is protected by an SR LFA backup using an RSVP-TE LSP FRR ( b), the feature does not support computing a LFA next hop for the SRv4 or SRv6 tunnel and remains unprotected.
    If, however, the user enabled the remote LFA or the TI-LFA feature, then an SR backup next hop may be found for the SR IPv4 or SR IPv6 tunnel, which then becomes protected.

2.5.6.4. Using LSP Relative Metric with IGP Shortcut

By default, the absolute metric of the LSP is used to compute the contribution of a IGP shortcut to the total cost of a prefix or a node after the SPF is complete. The absolute metric is the operational metric of the LSP populated by MPLS in the Tunnel Table Manager (TTM). This corresponds to the cumulative IGP-metric of the LSP path returned by CSPF or the static admin metric value of the LSP if the user configured one using the config>router>mpls>lsp>metric command. Note that MPLS populates the TTM with the maximum metric value of 16777215 in the case of a CSPF LSP using the TE-metric and a non-CSPF LSP with a loose or strict hop in the path. A non-CSPF LSP with an empty hop in the path definition returns the IGP cost for the destination of the LSP.

The user enables the use of the relative metric for an IGP shortcut with the following CLI command:

config>router>mpls>lsp>igp-shortcut relative-metric [offset]

IGP will apply the shortest IGP cost between the endpoints of the LSP plus the value of the offset, instead of the LSP operational metric, when computing the cost of a prefix which is resolved to the LSP.

The offset value is optional and it defaults to zero. An offset value of zero is used when the relative-metric option is enabled without specifying the offset parameter value.

The minimum net cost for a prefix is capped to the value of one (1) after applying the offset:

Prefix cost = max(1, IGP cost + relative metric offset)

Note that the TTM continues the show the LSP operational metric as provided by MPLS. In other words, applications such as LDP-over-RSVP (when IGP shortcut is disabled) and BGP and static route shortcuts will continue to use the LSP operational metric.

The relative-metric option is mutually exclusive with the lfa-protect or the lfa-only options. In other words, an LSP with the relative-metric option enabled cannot be included in the LFA SPF and vice-versa when the igp-shortcut option is enabled in the IGP.

Finally, it should be noted that the relative-metric option is ignored when forwarding adjacency is enabled in IS-IS or OSPF by configuring the advertise-tunnel-link option. In this case, IGP advertises the LSP as a point-to-point unnumbered link along with the LSP operational metric capped to the maximum link metric allowed in that IGP.

The resolution and forwarding of IPv6 prefixes to IPv4 forwarding adjacency LSPs is not supported.

2.5.6.5. ECMP Considerations

When you enable ECMP on the system and multiple equal-cost paths exist for a prefix, the following selection criteria are used to pick up the set of next hops to program in the data path:

  1. for a destination = tunnel-endpoint (including external prefixes with tunnel-endpoint as the next hop):
    1. select tunnel with lowest tunnel-index (ip next hop is never used in this case)
  2. for a destination != tunnel-endpoint:
    1. exclude LSPs with metric higher than underlying IGP cost between the endpoint of the LSP
    2. prefer tunnel next hop over ip next hop
    3. within tunnel next hops:
      1. select lowest endpoint to destination cost
      2. if same endpoint to destination cost, select lowest endpoint node router-id
      3. if same router-id, select lowest tunnel-index
    4. within ip next hops:
      1. select lowest downstream router-id
      2. if same downstream router-id, select lowest interface-index
  3. Although no ECMP is performed across both the IP and tunnel next hops, the tunnel endpoint lies in one of the shortest IGP paths for that prefix. As a result, the tunnel next hop is always selected as long as the prefix cost using the tunnel is equal or lower than the IGP cost.

The ingress IOM will spray the packets for a prefix over the set of tunnel next hops and IP next hops based on the hashing routine currently supported for IPv4 packets.

2.5.6.6. Handling of Control Packets

All control plane packets that require an RTM lookup and whose destination is reachable over the RSVP shortcut are forwarded over the shortcut. This is because RTM keeps a single route entry for each prefix unless there is ECMP over different outgoing interfaces.

Interface bound control packets are not impacted by the RSVP shortcut since RSVP LSPs with a destination address different than the router-id are not included by IGP in its SPF calculation.

2.5.6.7. Forwarding Adjacency

The forwarding adjacency feature can be enabled independently from the IGP shortcut feature in CLI. To enable forwarding adjacency, the user enters the following command in IS-IS or OSPF:

  1. config>router>isis>advertise-tunnel-link
  2. config>router>ospf>advertise-tunnel-link

If both igp-shortcut and advertise-tunnel-link options are enabled for a given IGP instance, then the advertise-tunnel-link will win. With this feature, ISIS or OSPF advertises an RSVP LSP as a link so that other routers in the network can include it in their SPF computations. The RSVP LSP is advertised as an unnumbered point-to-point link and the link LSP/LSA has no TE opaque sub-TLVs as per RFC 3906 Calculating Interior Gateway Protocol (IGP) Routes Over Traffic Engineering Tunnels.

The forwarding adjacency feature can be enabled independently from the IGP shortcut feature in CLI. If both igp-shortcut and advertise-tunnel-link options are enabled for a given IGP instance, then the advertise-tunnel-link will win.

When the forwarding adjacency feature is enabled, each node advertises a p2p unnumbered link for each best metric tunnel to the router-id of any endpoint node. The node does not include the tunnels as IGP shortcuts in SPF computation directly. Instead, when the LSA/LSP advertising the corresponding P2P unnumbered link is installed in the local routing database, then the node performs an SPF using it like any other link LSA/LSP. The link bi-directional check requires that a link, regular link or tunnel link, exists in the reverse direction for the tunnel to be used in SPF.

Note that the igp-shortcut option under the LSP name governs the use of the LSP with both the igp-shortcut and the advertise-tunnel-link options in IGP. The interactions of these options are summarized in Table 12:

Table 12:  Impact of LSP level configuration on IGP shortcut and forwarding adjacency features

LSP level configuration

Actions with IGP Shortcut Feature

Actions with Forwarding Adjacency Feature

igp-shortcut

Tunnel is used in main SPF, but is not used in LFA SPF

Tunnel is advertised as p2p link if it has best LSP metric, is used in main SPF if advertised, but is not used in LFA SPF

igp-shortcut lfa-protect

Tunnel is used in main SPF, and is used in LFA SPF

Tunnel is advertised as p2p link if it has best LSP metric, is used in main SPF if advertised, and is used in LFA SPF regardless if it is advertised or not

igp-shortcut lfa-only

Tunnel is not used in main SPF, but is used in LFA SPF

Tunnel is not advertised as p2p link, if not used in main SPF, but is used in LFA SPF

2.5.6.8. LDP Forwarding over IGP Shortcut

The user can enable LDP FECs over IGP shortcuts by configuring T-LDP sessions to the destination of the RSVP LSP. In this case, LDP FEC is tunneled over the RSVP LSP, effectively implementing LDP-over-RSVP without having to enable the ldp-over-rsvp option in OSPF or IS-IS. The ldp-over-rsvp and igp-shortcut options are mutually exclusive under OSPF or IS-IS.

2.5.6.9. Handling of Multicast Packets

This feature supports multicast Reverse-Path Check (RPF) in the presence of IGP shortcuts. When the multicast source for a packet is reachable via an IGP shortcut, the RPF check fails since PIM requires a bi-directional path to the source but IGP shortcuts are unidirectional.

The implementation of the IGP shortcut feature provides IGP with the capability to populate the multicast RTM with the prefix IP next-hop when both the igp-shortcut option and the multicast-import option are enabled in IGP.

This change is made possible with the enhancement introduced by which SPF keeps track of both the direct first hop and the tunneled first hop of a node that is added to the Dijkstra tree.

Note that IGP will not pass LFA next-hop information to the mcast RTM in this case. Only ECMP next-hops are passed. As a consequence, features such as PIM Multicast-Only FRR (MoFRR) will only work with ECMP next-hops when IGP shortcuts are enabled.

Finally, note that the concurrent enabling of the advertise-tunnel-link option and the multicast-import option will result a multicast RTM that is a copy of the unicast RTM and is populated with mix of IP and tunnel NHs. RPF will succeed for a prefix resolved to a IP NH, but will fail for a prefix resolved to a tunnel NH. Table 13 summarizes the interaction of the igp-shortcut and advertise-tunnel-link options with unicast and multicast RTMs.

Table 13:  Impact of IGP Shortcut and Forwarding Adjacency on Unicast and Multicast RTM

Unicast RTM (Primary SPF)

Multicast RTM (Primary SPF)

Unicast RTM (LFA SPF)

Multicast RTM (LFA SPF)

OSPF

igp-shortcut

 1

X 3

advertise-tunnel-link

 2

 4

IS-IS

igp-shortcut

 1

X 3

advertise-tunnel-link

 2

 4

    Notes:

  1. Multicast RTM is different from unicast RTM as it is populated with IP NHs only, including ECMP IP NHs. RPF check can be performed for all prefixes.
  2. Multicast RTM is a copy of the unicast RTM and, so, is populated with mix of IP and tunnel NHs. RPF will succeed for a prefix resolved to a IP NH but will fail for a prefix resolved to a tunnel NH.
  3. LFA NH is not computed for the IP primary next-hop of a prefix passed to multicast RTM even if the same IP primary next-hop ends up being installed in the unicast RTM. The LFA next-hop will, however, be computed and installed in the unicast RTM for a primary IP next-hop of a prefix.
  4. Multicast RTM is a copy of the unicast RTM and, so, is populated with mix of IP and tunnel LFA NHs. RPF will succeed for a prefix resolved to a primary or LFA IP NH but will fail for a prefix resolved to a primary or LFA tunnel NH.

2.5.7. Disabling TTL Propagation in an LSP Shortcut

This feature provides the option for disabling TTL propagation from a transit or a locally generated IP packet header into the LSP label stack when an RSVP LSP is used as a shortcut for BGP next-hop resolution, a static-route-entry next-hop resolution, or for an IGP route resolution.

A transit packet is a packet received from an IP interface and forwarded over the LSP shortcut at ingress LER.

A locally-generated IP packet is any control plane packet generated from the CPM and forwarded over the LSP shortcut at ingress LER.

TTL handling can be configured for all RSVP LSP shortcuts originating on an ingress LER using the following global commands:

config>router>mpls>[no] shortcut-transit-ttl-propagate config>router>mpls>[no] shortcut-local-ttl-propagate

These commands apply to all RSVP LSPs which are used to resolve static routes, BGP routes, and IGP routes.

When the no form of the above command is enabled for local packets, TTL propagation is disabled on all locally generated IP packets, including ICMP Ping, trace route, and OAM packets that are destined to a route that is resolved to the LSP shortcut. In this case, a TTL of 255 is programmed onto the pushed label stack. This is referred to as pipe mode.

Similarly, when the no form is enabled for transit packets, TTL propagation is disabled on all IP packets received on any IES interface and destined to a route that is resolved to the LSP shortcut. In this case, a TTL of 255 is programmed onto the pushed label stack.

2.5.8. RSVP-TE LSP Signaling using LSP Template

An LSP template can be used for signaling RSVP-TE LSP to far-end PE node that is detected based on auto-discovery method by a client application. RSVP-TE P2MP LSP signaling based on LSP template is supported for Multicast VPN application on SR OS platform. LSP template avoids an explicit LSP or LSP S2L configuration for a node that is dynamically added as a receiver.

An LSP template has the option to configure TE parameters that apply to LSP that is set up using the template. TE options that are currently supported are:

  1. adaptive
  2. admin-group
  3. bandwidth
  4. CSPF calculation
  5. fast-reroute
  6. hop-limit
  7. record-label
  8. retry-timer

2.5.9. Shared Risk Link Groups

Shared Risk Link Groups (SRLGs) is a feature that allows the user to establish a backup secondary LSP path or a FRR LSP path which is disjoint from the path of the primary LSP. Links that are members of the same SRLG represent resources sharing the same risk, for example, fiber links sharing the same conduit or multiple wavelengths sharing the same fiber.

When the SRLG option is enabled on a secondary path, CSPF includes the SRLG constraint in the computation of the secondary LSP path. This requires that the primary LSP already be established and up since the head-end LER needs the most current ERO computed by CSPF for the primary path. CSPF would return the list of SRLG groups along with the ERO during primary path CSPF computation. At a subsequent establishment of a secondary path with the SRLG constraint, the MPLS/RSVP task will query again CSPF providing the list of SRLG group numbers to be avoided. CSPF prunes all links with interfaces which belong to the same SRLGs as the interfaces included in the ERO of the primary path. If CSPF finds a path, the secondary is setup. If not, MPLS/RSVP will keep retrying the requests to CSPF.

When the SRLG option is enabled on FRR, CSPF includes the SRLG constraint in the computation of a FRR detour or bypass for protecting the primary LSP path. CSPF prunes all links with interfaces which belong to the same SRLG as the interface which is being protected, for example, the outgoing interface at the PLR the primary path is using. If one or more paths are found, the MPLS/RSVP task will select one based on best cost and will signal the bypass/detour. If not and the user included the strict option, the bypass/detour is not setup and the MPLS/RSVP task will keep retrying the request to CSPF. Otherwise, if a path exists which meets the other TE constraints, other than the SRLG one, the bypass/detour is setup.

A bypass or a detour LSP path is not guaranteed to be SRLG disjoint from the primary path. This is because only the SRLG constraint of the outgoing interface at the PLR that the primary path is using is avoided.

2.5.9.1. Enabling Disjoint Backup Paths

A typical application of the SRLG feature is to provide for an automatic placement of secondary backup LSPs or FRR bypass/detour LSPs that minimizes the probability of fate sharing with the path of the primary LSP (Figure 30).

The following details the steps necessary to create shared risk link groups:

  1. For primary/standby SRLG disjoint configuration:
    1. Create an SRLG-group, similar to admin groups.
    2. Link the SRLG-group to MPLS interfaces.
    3. Configure primary and secondary LSP paths and enable SRLG on the secondary LSP path. Note that the SRLG secondary LSP path(s) will always perform a strict CSPF query. The srlg-frr command is irrelevant in this case (see srlg-frr).
  2. For FRR detours/bypass SRLG disjoint configuration:
    1. Create an SRLG group, similar to admin groups.
    2. Link the SRLG group to MPLS interfaces.
    3. Enable the srlg-frr (strict/non-strict) option, which is a system-wide parameter, and it force every LSP path CSPF calculation, to take the configured SRLG membership(s) (and propagated through the IGP opaque-te-database) into account.
    4. Configure primary FRR (one-to-one/facility) LSP path(s). Consider that each PLR will create a detour/bypass that will only avoid the SRLG memberships configured on the primary LSP path egress interface. In a one-to-one case, detour-detour merging is out of the control of the PLR. As such, the latter will not ensure that its detour is prohibited to merge with a colliding one. For facility bypass, with the presence of several bypass type to bind to, the following priority rules are followed:
    1. Manual bypass disjoint
    2. Manual bypass non-disjoint (eligible only if srlg-frr is non-strict)
    3. Dynamic disjoint
    4. Dynamic non-disjoint (eligible only if srlg-frr is non-strict)
    Non-CSPF manual bypass is not considered.
    Figure 30:  Shared Risk Link Groups

This feature is supported on OSPF and IS-IS interfaces on which RSVP is enabled.

2.5.9.2. SRLG Penalty Weights for Detour and Bypass LSPs

The likelihood of paths with links sharing SRLG values with a primary path being used by a bypass or detour LSP can be configured if a penalty weight is specified for the link. The higher the penalty weight, the less desirable it is to use the link with a given SRLG.

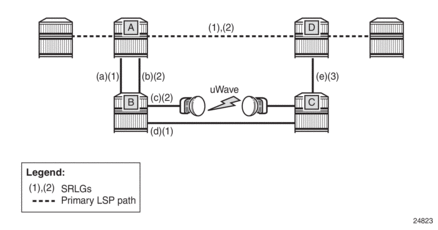

Figure 31 illustrates the operation of SRLG penalty weights.

Figure 31:  SRLG Penalty Weight Operation

The primary LSP path includes a link between A and D with SRLG (1) and (2). The bypass around this link through nodes B and C includes links (a) and (d), which are members of SRLG (1), and links (b) and (c), which are members of SRLG 2. If the link metrics are equal, then this gives four ECMP paths from A to D via B and C:

  1. (a), (d), (e)
  2. (a), (c), (e)
  3. (b), (c), (e)
  4. (b), (d), (e)

Two of these paths include undesirable (from a reliability perspective) link (c). SRLG penalty weights or costs can be used to provide a tiebreaker between these paths so that the path including (c) is less likely to be chosen. For example, if the penalty associated with SRLG (1) is 5, and the penalty associated with SRLG (2) is 10, and the penalty associated with SRLG (3) is 1, then the cumulative penalty of each of the paths above is calculated by summing the penalty weights for each SRLG that a path has in common with the primary path:

  1. (a), (d), (e) = 10
  2. (a), (c), (e) = 15
  3. (b), (c), (e) = 20
  4. (b), (d), (e) = 15

Therefore path (a), (d), (e) is chosen since it has the lowest cumulative penalty.

Penalties are applied by summing the values for SRLGs in common with the protected part of the primary path.

A user can define a penalty weight value associate with an SRLG group using the penalty-weight parameter of the srlg-group command under the configure>router-if-attribute context. If an SRLG penalty weight is configured, then CSPF will include the SRLG penalty weight in the computation of an FRR detour or bypass for protecting the primary LSP path at a PLR node. Links with a higher SRLG penalty should be more likely to be pruned than links with a lower SRLG penalty.

Note that the configured penalty weight is not advertised in the IGP.

An SRLG penalty weight is applicable whenever an SRLG group is applied to an interface, including in the static SRLG database. However, penalty weights are used in bypass and detour path computation only when the srlg-frr (loose) flag is enabled.

2.5.9.3. Static Configurations of SRLG Memberships

This feature provides operations with the ability to manually enter the link members of SRLG groups for the entire network at any SR OS which will need to signal LSP paths (for example, a head-end node).

The operator may explicitly enables the use by CSPF of the SRLG database. In that case, CSPF will not query the TE database for IGP advertised interface SRLG information.

Note, however, that the SRLG secondary path computation and FRR bypass/detour path computation remains unchanged.

There are deployments where the SR OS will interoperate with routers that do not implement the SRLG membership advertisement via IGP SRLG TLV or sub-TLV.

In these situations, the user is provided with the ability to enter manually the link members of SRLG groups for the entire network at any SR OS which will need to signal LSP paths, for example, a head-end node.

The user enters the SRLG membership information for any link in the network by using the interface ip-int-name srlg-group group-name command in the config>router>mpls> srlg-database>router-id context. An interface can be associated with up to 5 SRLG groups for each execution of this command. The user can associate an interface with up to 64 SRLG groups by executing the command multiple times. The user must also use this command to enter the local interface SRLG membership into the user SRLG database. The user deletes a specific interface entry in this database by executing the no form of this command.

The group-name must have been previously defined in the srlg-group group-name value group-value command in the config>router>mpls if-attribute. The maximum number of distinct SRLG groups the user can configure on the system is 1024.

The parameter value for router-id must correspond to the router ID configured under the base router instance, the base OSPF instance or the base IS-IS instance of a given node. Note however that a single user SRLG database is maintained per node regardless if the listed interfaces participate in static routing, OSPF, IS-IS, or both routing protocols. The user can temporarily disable the use by CSPF of all interface membership information of a specific router ID by executing the shutdown command in the config>router>mpls> srlg-database> router-id context. In this case, CSPF will assume these interfaces have no SRLG membership association. The operator can delete all interface entries of a specific router ID entry in this database by executing the no router-id router-address command in the config>router>mpls> srlg-database context.

CSPF will not use entered SRLG membership if an interface is not listed as part of a router ID in the TE database. If an interface was not entered into the user SRLG database, it is assumed that it does not have any SRLG membership. CSPF will not query the TE database for IGP advertised interface SRLG information.

The operator enables the use by CSPF of the user SRLG database by entering the user-srlg-db enable command in the config>router>mpls context. When the MPLS module makes a request to CSPF for the computation of an SRLG secondary path, CSPF will query the local SRLG and computes a path after pruning links which are members of the SRLG IDs of the associated primary path. Similarly, when MPLS makes a request to CSPF for a FRR bypass or detour path to associate with the primary path, CSPF queries the user SRLG database and computes a path after pruning links which are members of the SRLG IDs of the PLR outgoing interface.

The operator can disable the use of the user SRLG database by entering the user-srlg-db disable in command in the config>router>mpls context. CSPF will then resumes queries into the TE database for SRLG membership information. However, the user SRLG database is maintained

The operator can delete the entire SRLG database by entering the no srlg-database command in the config>router>mpls context. In this case, CSPF will assume all interfaces have no SRLG membership association if the user has not disabled the use of this database.

2.5.10. TE Graceful Shutdown

Graceful shutdown provides a method to bulk re-route transit LSPs away from the node during software upgrade of a node. A solution is described in RFC 5817, Graceful Shutdown in MPLS and Generalized MPLS Traffic Engineering Networks. This is achieved in this RFC by using a PathErr message with a specific error code Local Maintenance on TE link required flag. When a LER gets this message, it performs a make-before-break on the LSP path to move the LSP away from the links/nodes which IP addresses were indicated in the PathErr message.

Graceful shutdown can flag the affected link/node resources in the TE database so other routers will signal LSPs using the affected resources only as a last resort. This is achieved by flooding an IGP TE LSA/LSP containing link TLV for the links under graceful shutdown with the TE metric set to 0xffffffff and 0 as unreserved bandwidth.

2.5.11. Soft Preemption of Diff-Serv RSVP LSP

A Diff-Serv LSP can preempt another LSP of the same or of a different CT if its setup priority is strictly higher (numerically lower) than the holding priority of that other LSP.

2.5.12. Least-Fill Bandwidth Rule in CSPF ECMP Selection

When multiples equal-cost paths satisfy the constraints of a given RSVP LSP path, CSPF in the router head-end node will select a path so that LSP bandwidth is balanced across the network links. In releases prior to R7.0, CSPF used a random number generator to select the path and returned it to MPLS. In the course of time, this method actually balances the number of LSP paths over the links in the network; it does not necessarily balance the bandwidth across those links.

The least-fill path selection algorithm identifies the single link in each of the equal cost paths which has the least available bandwidth in proportion to its maximum reserved bandwidth. It then selects the path which has the largest value of this figure. The net effect of this algorithm is that LSP paths are spread over the network links over time such that percentage link utilization is balanced. When the least-fill option is enabled on an LSP, during a manual reset CSPF will apply this method to all path calculations of the LSP, also at the time of the initial configuration.

2.5.13. Inter-Area TE LSP (ERO Expansion Method)

Inter-area contiguous LSP scheme provides end-to-end TE path. Each transit node in an area can set up a TE path LSP based on TE information available within its local area.

A PE node initiating an inter-area contiguous TE LSP does partial CSPF calculation to include its local area border router as a loose node.

Area border router on receiving a PATH message with loose hop ERO does a partial CSPF calculation to the next domain border router as loose hop or CSPF to reach the final destination.

2.5.13.1. Area Border Node FRR Protection for Inter-Area LSP

This feature enhances the prior implementation of an inter-area RSVP P2P LSP by making the ABR selection automatic at the ingress LER. The user will not need to include the ABR as a loose-hop in the LSP path definition.

CSPF adds the capability to compute all segments of a multi-segment intra-area or inter-area LSP path in one operation.

Figure 32 illustrates the role of each node in the signaling of an inter-area LSP with automatic ABR node selection.

Figure 32:  Automatic ABR Node Selection for Inter-Area LSP

CSPF for an inter-area LSP operates as follows:

  1. CSPF in the Ingress LER node determines that an LSP is inter-area by doing a route lookup with the destination address of a P2P LSP (that is the address in the to field of the LSP configuration). If there is no intra-area route to the destination address, the LSP is considered as inter-area.
  2. When the path of the LSP is empty, CSPF will compute a single-segment intra-area path to an ABR node that advertised a prefix matching with the destination address of the LSP.
  3. When the path of the LSP contains one or more hops, CSPF will compute a multi-segment intra-area path including the hops that are in the area of the Ingress LER node.
  4. When all hops are in the area of the ingress LER node, the calculated path ends on an ABR node that advertised a prefix matching with the destination address of the LSP.
  5. When there are one or more hops that are not in the area of the ingress LER node, the calculated path ends on an ABR node that advertised a prefix matching with the first hop-address that is not in the area of the ingress LER node.
  6. Note the following special case of a multi-segment inter-area LSP. If CSPF hits a hop that can be reached via an intra-area path but that resides on an ABR, CSPF only calculates a path up to that ABR. This is because there is a better chance to reach the destination of the LSP by first signaling the LSP up to that ABR and continuing the path calculation from there on by having the ABR expand the remaining hops in the ERO.
    This behavior can be illustrated in the Figure 33. The TE link between ABR nodes D and E is in area 0. When node C computes the path for LSP from C to B which path specified nodes C and D as loose hops, it would fail the path computation if CSPF attempted a path all the way to the last hop in the local area, node E. Instead, CSPF stops the path at node A which will further expand the ERO by including link D-E as part of the path in area 0.
    Figure 33:  CSPF for an Inter-area LSP
  7. If there is more than 1 ABR that advertised a prefix, CSPF will calculate a path for all ABRs. Only the shortest path is withheld. If more than one path has the shortest path, CSPF will pick a path randomly or based on the least-fill criterion if enabled. If more than one ABR satisfies the least-fill criterion, CSPF will also pick one path randomly.
  8. The path for an intra-area LSP path will not be able to exit and re-enter the local area of the ingress LER. This behavior was possible in prior implementation when the user specified a loose hop outside of the local area or when the only available path was via TE links outside of the local area.

2.5.13.1.1. Rerouting of Inter-Area LSP

In prior implementation, an inter-area LSP path would have been re-routed if a failure or a topology change occurred in the local or a remote area while the ABR loose-hop in the path definition was still up. If the exit ABR node went down, went into IS-IS overload, or was put into node TE graceful shutdown, the LSP path will remain down at the ingress LER.

One new behavior introduced by the automatic selection of ABR is the ability of the ingress LER to reroute an inter-area LSP primary path via a different ABR in the following situations:

  1. When the local exit ABR node fails, There are two cases to consider:
    1. The primary path is not protected at the ABR and, so, is torn down by the previous hop in the path. In this case the ingress LER will retry the LSP primary path via the ABR which currently has the best path for the destination prefix of the LSP.
    2. The primary path is protected at the ABR with a manual or dynamic bypass LSP. In this case the ingress LER will receive a Path Error message with a notification of a protection becoming active downstream and a RESV with a Local-Protection-In-Use flag set. At the receipt of first of these two messages, the ingress LER will then perform a Global Revertive Make-Before-Break (MBB) to re-optimize the LSP primary path via the ABR which currently has the best path for the destination prefix of the LSP.
  2. When the local exit ABR node goes into IS-IS overload or is put into node TE Graceful Shutdown. In this case, the ingress LER will perform a MBB to re-optimize the LSP primary path via the ABR which currently has the best path for the destination prefix of the LSP. The MBB is performed at the receipt of the PathErr message for the node TE shutdown or at the next timer or manual re-optimization of the LSP path in the case of the receipt of the IS-IS overload bit.

2.5.13.1.2. Behavior of MPLS Options in Inter-Area LSP

The automatic ABR selection for an inter-area LSP does not change prior implementation inter-area LSP behavior of many of the LSP and path level options. There is, however, a number of enhancements introduced by the automatic ABR selection feature as explained in the following.

  1. Features such as path bandwidth reservation and admin-groups continue to operate within the scope of all areas since they rely on propagating the parameter information in the Path message across the area boundary.
  2. The TE graceful shutdown and soft preemption features will continue to support MBB of the LSP path to avoid the link or node that originated the PathErr message as long as the link or node is in the local area of the ingress LER. If the PathErr originated in a remote area, the ingress LER will not be able to avoid the link or node when it performs the MBB since it computes the path to the local ABR exit router only. There is, however, an exception to this for the TE graceful shutdown case only. An enhancement has been added to cause the upstream ABR nodes in the current path of the LSP to record the link or node to avoid and will use it in subsequent ERO expansions. This means that if the ingress LER computes a new MBB path which goes via the same exit ABR router as the current path and all ABR upstream nodes of the node or link which originated the PathErr message are also selected in the new MBB path when the ERO is expanded, the new path will indeed avoid this link or node. The latter is a new behavior introduced with the automatic ABR selection feature.
  3. The support of MBB to avoid the ABR node when the node is put into TE Graceful Shutdown is a new behavior introduced with the automatic ABR selection feature.
  4. The use-te-metric option in CSPF cannot be propagated across the area boundary and will operate within the scope of the local area of the ingress LER node. This is a new behavior introduced with the automatic ABR selection feature.
  5. The srlg option on bypass LSP will continue to operate locally at each PLR within each area. The PLR node protecting the ABR will check the SRLG constraint for the path of the bypass within the local area.
  6. The srlg option on secondary path is allowed to operate within the scope of the local area of the ingress LER node with the automatic ABR selection feature.
  7. The least-fill option support with an inter-area LSP is introduced with the automatic ABR selection feature. When this option is enabled, CSPF applies the least-fill criterion to select the path segment to the exit ABR node in the local area.
  8. 1The PLR node must indicate to CSPF that a request to one-to-one detour LSP path must remain within the local area. If the destination for the detour, which is the same as that of the LSP, is outside of the area, CSPF must return no path.
  9. The propagate-admin-group option under the LSP will still need to be enabled on the inter-area LSP if the user wants to have admin-groups propagated across the areas.
  10. With the automatic ABR selection feature, timer based re-signal of the inter-area LSP path is supported and will re-signal the path if the cost of the path segment to the local exit ABR changed. The cost shown for the inter-area LSP at ingress LER is the cost of the path segments to the ABR node.

2.5.13.2. Inter-Area LSP support of OSPF Virtual Links

The OSPF virtual link extends area 0 for a router that is not connected to area 0. As a result, it makes all prefixes in area 0 reachable via an intra-area path but in reality, they are not since the path crosses the transit area through which the virtual link is set up to reach the area 0 remote nodes.

The TE database in a router learns all of the remote TE links in area 0 from the ABR connected to the transit area, but an intra-area LSP path using these TE links cannot be signaled within area 0 since none of these links is directly connected to this node.

This inter-area LSP feature can identify when the destination of an LSP is reachable via a virtual link. In that case, CSPF will automatically compute and signal an inter-area LSP via the ABR nodes that is connected to the transit area.

However, when the ingress LER for the LSP is the ABR connected to the transit area and the destination of the LSP is the address corresponding to another ABR router-id in that same transit area, CSPF will compute and signal an intra-area LSP using the transit area TE links, even when the destination router-id is only part of area 0.

2.5.13.3. Area Border Node FRR Protection for Inter-Area LSP

For protection of the area border router, the upstream node of the area border router acts as a point-of-local-repair (PLR), and the next-hop node to the protected domain border router is the merge-point (MP). Both manual and dynamic bypass are available to protect area border node.

Manual bypass protection works only when a proper completely strict path is provisioned that avoids the area border node.

Dynamic bypass protection provides for the automatic computation, signaling, and association with the primary path of an inter-area P2P LSP to provide ABR node protection. Figure 34 illustrates the role of each node in the ABR node protection using a dynamic bypass LSP.

Figure 34:  ABR Node Protection Using Dynamic Bypass LSP

In order for a PLR node within the local area of the ingress LER to provide ABR node protection, it must dynamically signal a bypass LSP and associate it with the primary path of the inter-area LSP using the following new procedures:

  1. The PLR node must inspect the node-id RRO of the LSP primary path to determine the address of the node immediately downstream of the ABR in the other area.
  2. The PLR signals an inter-area bypass LSP with a destination address set to the address downstream of the ABR node and with the XRO set to exclude the node-id of the protected ABR node.
  3. The request to CSPF is for a path to the merge-point (that is the next-next-hop in the RRO received in the RESV for the primary path) along with the constraint to exclude the protected ABR node and the include/exclude admin-groups of the primary path. If CSPF returns a path that can only go to an intermediate hop, then the PLR node signals the dynamic bypass and will automatically include the XRO with the address of the protected ABR node and propagate the admin-group constraints of the primary path into the Session Attribute object of the bypass LSP. Otherwise, the PLR signals the dynamic bypass directly to the merge-point node with no XRO object in the Path message.
  4. If a node-protect dynamic bypass cannot be found or signaled, the PLR node attempts a link-protect dynamic bypass LSP. As in existing implementation of dynamic bypass within the same area, the PLR attempts in the background to signal a node-protect bypass at the receipt of every third Resv refresh message for the primary path.
  5. Refresh reduction over dynamic bypass will only work if the node-id RRO also contains the interface address. Otherwise the neighbor will not be created once the bypass is activated by the PLR node. The Path state will then time out after three refreshes following the activation of the bypass backup LSP.

Note that a one-to-one detour backup LSP cannot be used at the PLR for the protection of the ABR node. As a result, a PLR node will not signal a one-to-one detour LSP for ABR protection. In addition, an ABR node will reject a Path message, received from a third party implementation, with a detour object and with the ERO having the next-hop loose. This is performed regardless if the cspf-on-loose option is enabled or not on the node. In other words, the router as a transit ABR for the detour path will reject the signaling of an inter-area detour backup LSP.

2.5.14. Timer-based Reversion for RSVP-TE LSPs

The following secondary to primary path reversion is supported for RSVP-TE LSPs:

  1. Configurable timer-based reversion for primary LSP path
  2. Manual reversion from secondary to primary path

Normally, an RSVP-TE LSP automatically switches back from using a secondary path to the primary path as soon as the primary path recovers. In some deployments, it is useful to delay reversion or allow manual reversion, rather than allowing an LSP to revert to the primary path as soon as it is available. This feature provides a method to manage fail-overs in the network.

If manual reversion is used, a fall-back timer-based mechanism is required in case a human operator fails to execute the switch back to the primary path. This function is also useful to stagger reversion for large numbers of LSPs.

A reversion timer for an LSP is configured using the CLI as follows:

config
   router
      [no] mpls
               lsp
                 [no] revert-timer <timer-value>

When configured, the revert timer is started as soon as a primary path recovers. The LSP does not revert from the currently used secondary path to the primary path until the timer expires. When configured, the revert-timer is used instead of the existing hold timer.

The timer value can be configured in one minute increments, up to 4320 minutes (72 hours). Once a timer has started, it can be modified using this command. If a new value is entered, then the current timer is canceled (without reverting the LSP) and then restarted using the new value.

The no form of the command cancels any currently outstanding revert timer and causes the LSP to revert to the primary path if it is up.

If the LSP secondary path fails while the revert timer is still running, the system cancels the revert- timer and the LSP will revert to the primary path immediately. A user can manually force an LSP to revert to the primary path while the revert-timer is still running, using the following tools command:

tools>perform>router>mpls revert lsp lsp-name

This command forces the early expiry of the revert timer for the LSP. The primary path must be up in order for this command to work.

2.5.15. MPLS Entropy Label

The router supports the MPLS entropy label (RFC 6790) on RSVP-TE LSPs used for IGP and BGP shortcuts. This allows LSR nodes in a network to load-balance labeled packets in a much more granular fashion than allowed by simply hashing on the standard label stack. See MPLS Entropy Label and Hash Label for further information.

2.5.16. LSP Tagging and Auto-Bind Using Tag Information

RSVP and SR-TE LSPs can be configured with an administrative tag.

The primary application of LSP tagging is to enable the system to resolve to specific transport tunnels (or groups of eligible transport tunnels) for BGP routes for applications such as BGP labeled unicast, VPRN, or EVPN. Additionally, LSP tagging specifies a finer level of granularity on the next-hop or the far-end prefix associated with a BGP labeled unicast route or unlabeled BGP route shortcut tunnels.

LSP tagging is supported using the following capabilities in SR OS.

  1. The ability to associate a color with an exported BGP route. This is signaled using the BGP Color Extended Community described in Section 4.3 of draft-ietf-idr-tunnel-encaps-03. This provides additional context associated with a route that an upstream router can use to help select a distinct transport for traffic associated with that route.
  2. The ability to define a set of administrative tags on a node for locally-coloring imported routes and consequent use in transport tunnel selection. Up to 256 discrete tag values are supported.
  3. The ability to configure a set of administrative tags on an RSVP or SR-TE LSP. This tag is used by applications to refer to the LSP (or set of LSPs with the same tag) for the purposes of transport tunnel selection. Up to four tags are supported per LSP.
  4. The ability to apply one or more administrative tags to include or exclude as an action to a matching route in a BGP route policy. Different admin-tag values can be applied to different VPRN routes, such that different VPRNs can ultimately share the same set of tunnels by having the same admin-tags associated to their VPN routes via matching on RT extended community values.
  5. The ability to match an administrative tag in a route policy for the following service types to the list of available RSVP or SR-TE tunnels (potentially filtered by the resolution filter):
    1. BGP labeled unicast and BGP shortcuts
    2. VPRN with auto-bind-tunnel
    3. EVPN with auto-bind-tunnel

The following provides an overview of how the feature is intended to operate:

  1. Configure a nodal database of admin-tags. Each tag is automatically assigned an internal color. The nodal admin tag database is configured under config>router>admin-tags in the CLI.
  2. Optionally, configure export route policies associating routes with a color extended community. The color extended community allows for a color to be advertised along with specific routes, intended to indicate some property of a transport that a route can be associated with.
  3. Configure a named route-admin-tag-policy containing a list of admin-tags to include or exclude. The route-admin-tag-policy is configured under config>router>admin-tags in the CLI. Up to eight include and exclude statements are supported per policy.
  4. Configure a named route-admin-tag-policy as an action against matching routes in a route policy. An internal route color is applied to matching routes. Examples of a match are on a BGP next-hop or an extended community; for example, the color extended community specified in Section 4.3 of draft-ietf-idr-tunnel-encaps-03. That is, if that policy is later used as an import policy by a service, routes received from, for example, a matching BGP next hop or color-extended community in the policy will be given the associated internal color.
  5. Configure admin-tags on RSVP or SR-TE LSPs so that different groups of LSPs can be treated differently by applications that intend to use them. More than one admin-tag can be configured against a specified LSP. Admin-tags are configured using the admin-tag command under config>router>mpls>lsp in the CLI.
  6. Apply a route policy to a service or other object as an import policy. The system then matches the internal color policy of a route against corresponding LSP internal colors in the tunnel table. That set of LSPs can subsequently be limited by a resolution filter. For BGP-LU and BGP shortcut routes, the resolution filter can optionally be restricted to only those LSPs matching the pattern of admin-tags in the route-admin-tag-policy (otherwise the resolution fails) using the enforce-strict-tunnel-tagging option. If enforce-strict-tunnel-tagging is not specified, then the router falls back to untagged LSPs. The tunnels that VPRN and EVPN services can auto-bind to can also be restricted using the enforce-strict-tunnel-tagging option in the auto-bind-tunnel configuration for the service. The following subsections provide more details about how the matching algorithm works.

2.5.16.1. Internal Route Color to LSP Color Matching Algorithm

This section describes how the matrix of include or exclude colors in a route-admin-tag-policy policy-name, which is assigned to a route, are matched against LSP internal colors. This is a generic algorithm. The following sections provide further details of how this applies to specific use cases.

Internal color matching occurs before any resolution filter is applied.

The following selection process assumes the system starts with a set of eligible RSVP and SR-TE LSPs to the appropriate BGP next hop.

  1. Prune the following RSVP and SR-TE LSPs from the eligible set:
    1. uncolored LSPs
    2. LSPs where none of the internal colors match any "include" color for the route
    3. LSPs where any of the internal colors match any "exclude" color for the route
  2. If none of the LSPs match, then the default behavior is that the route does not resolve. Depending on the context, configure a fall-back method, as described in LSP Admin Tag use in Tunnel Selection for VPRN and E-VPN Auto-Bind.
  3. If a route does not have an admin-tag policy, it is assumed that the operator does not wish to express a preference for the LSP to use. Therefore, routes with no admin-tag policy can still resolve to any tagged or untagged LSP.

This selection process results in a set of one or more ECMP LSPs, which may be further reduced by a resolution filter.

2.5.16.2. LSP Admin Tag use in Tunnel Selection for VPRN and E-VPN Auto-Bind

For VPRN, EVPN-VPLS, and EVPN-VPWS, routes may be imported via peer route import policies that contain route admin-tag policies or via VRF import for VPRN and VSI import for E-VPN VPLS used for auto-bind-tunnel.

VRF import and VSI import policies take precedence over the peer route import policy.

For policies that contain route admin-tag policies, the set of available RSVP and SR-TE LSPs in TTM are first pruned as described in Internal Route Color to LSP Color Matching Algorithm. This set may then be further reduced by a resolution filter. If weighted-ecmp is configured, then this is applied across the resulting set.

Routes with no admin-tag, or a tag that is not explicitly excluded by the route admin tag policy, can still resolve to any tagged or untagged LSP but matching tagged LSPs are used in preference to any other. It is possible that following the resolution filter no eligible RSVP or SR-TE LSP exists. By default, the system will fall back to regular auto-bind behavior using LDP, SR-ISIS, SR-OSPF, or any other lower priority configured tunnel type, otherwise the resolution will fail. That is, matching admin-tagged RSVP or SR-TE LSPs are used in preference to other LSP types, whether tagged or untagged. However, it is possible on a per-service basis to enforce that only specific tagged tunnels should be considered, otherwise resolution will fail, using the enforce-strict-tunnel-tagging command in the auto-bind-tunnel context.

For E-VPN VPWS, VSI import is not supported. Therefore, admin-tag policies can only be applied via a peer route import policy based on a match on the route target for the BGP peer for the VPWS.

2.5.16.3. LSP Admin Tag Use for BGP Next Hop or BGP Prefix for Labeled and Unlabeled Unicast Routes

A specific LSP can be selected as transport to a specified BGP next hop for BGP labeled unicast and unlabeled BGP routes tunneled over RSVP and SR-TE LSPs.

Routes are imported via import route policies. Named routing policies may contain route admin-tag policies. For route import policies that contain route admin-tag policies, the set of available RSVP and SR-TE LSPs in TTM are first pruned as described in Internal Route Color to LSP Color Matching Algorithm.

This set may then be further reduced by a resolution filter.

If weighted-ecmp is configured, then this is applied across the resulting set.

Routes with no admin-tag can still resolve to any tagged or untagged LSP. It is possible that, following the resolution filter, no eligible RSVP or SR-TE LSP exists. By default, the system falls back to using LDP, SR-ISIS, SR-OSPF, or any other lower-priority tunnel type; otherwise the resolution fails. That is, matching admin-tagged RSVP or SR-TE LSPs are preferred to other LSP types. On a per-address family basis, the enforce-strict-tunnel-tagging command in the next-hop-resolution filter for BGP labeled routes or shortcut tunnels can be used to enforce that only tagged tunnels are considered; otherwise, resolution fails.

2.5.17. Accounting for Dark Bandwidth

In traffic engineered networks, IGP-TE advertisements are used to distribute bandwidth availability on each link. This bandwidth availability information only accounts for RSVP-TE LSP set-ups and tear-downs. However, network deployments often have labeled traffic (other than RSVP-TE LSP) flowing on the same links as these RSVP-TE LSPs, in particular when MPLS Segment Routing (MPLS-SR) is deployed. The bandwidth consumed by this labeled traffic is often referred to as dark bandwidth.

The bandwidth consumed by, for example, MPLS-SR traffic is not accounted for in IGP-TE advertisements. This unaccounted-for traffic may result in suboptimal constrained routing decisions or contention for the access to the bandwidth resource. SR OS enables accounting for dark bandwidth in IGP-TE advertisement and provides the means to control the behavior of this accounting.

To configure dark bandwidth accounting:

  1. Enable collection of traffic statistics for dark bandwidth, using the command configure>router>mpls>aux-stats sr
    Note:

    Only one keyword parameter is available (sr) for this command, so only MPLS-SR is considered as contributing to dark bandwidth.

  2. Enable dark bandwidth accounting on each SE, using the command configure>router>rsvp>dbw-accounting
    Note:

    After dark bandwidth has been enabled, auxiliary statistics collection cannot be disabled. Dark bandwidth accounting must be disabled (no dbw-accounting) before auxiliary statistics collection can be disabled.

  3. Configure the dark bandwidth accounting parameters to control the behavior of the system.

When dark bandwidth accounting is enabled, the system samples dark bandwidth at the end of every sample interval and computes an average after sample-multiplier samples. The system applies a multiplier (dbw-multiplier) to the computed average dark bandwidth and then determines whether an IGP-TE update is required based on whether one of the thresholds (up-threshold or down-threshold) has been crossed. If an IGP-TE advertisement is required, the bandwidth information is updated, considering that dark bandwidth has the highest priority among the eight available priorities. These thresholds represent a change of Maximum Reservable Bandwidth (OSPF) or Maximum Reservable Link Bandwidth (IS-IS) compared to the previously advertised bandwidth. These parameters are generally global parameters, but it is possible to override the global value of some parameters on a per-interface basis.

The show>router>rsvp>status command allows the user to view, on a global or per-interface basis, key values associated with the dark bandwidth accounting process.

2.6. Point-to-Multipoint (P2MP) RSVP LSP

Point-to-multipoint (P2MP) RSVP LSP allows the source of multicast traffic to forward packets to one or many multicast receivers over a network without requiring a multicast protocol, such as PIM, to be configured in the network core routers. A P2MP LSP tree is established in the control plane which path consists of a head-end node, one or many branch nodes, and the leaf nodes. Packets injected by the head-end node are replicated in the data plane at the branching nodes before they are delivered to the leaf nodes.

2.6.1. Application in Video Broadcast

Figure 35 illustrates the use of the 7750 SR product family in triple play application (TPSDA). The Broadband Service Router (BSR) is a 7750 SR and the Broadband Service Aggregator (BSA) is the 7450 ESS.

Figure 35:  Application of P2MP LSP in Video Broadcast

A PIM-free core network can be achieved by deploying P2MP LSPs using other core routers. The router can act as the ingress LER receiving the multicast packets from the multicast source and forwarding them over the P2MP LSP.

A router can act as a leaf for the P2MP LSP tree initiated from the head-end router co-located with the video source. The router can also act as a branch node serving other leaf nodes and supports the replication of multicast packets over P2MP LSPs.

2.6.2. P2MP LSP Data Plane

A P2MP LSP is a unidirectional label switched path (LSP) which inserts packets at the root (ingress LER) and forwards the exact same replication of the packet to one or more leaf nodes (egress LER). The packet can be replicated at the root of P2MP LSP tree and/or at a transit LSR which acts as a branch node for the P2MP LSP tree.

Note that the data link layer code-point, for example Ethertype when Ethernet is the network port, continues to use the unicast codepoint defined in RFC 3032, MPLS Label Stack Encoding, and which is used on P2P LSP. This change is specified in draft-ietf-mpls-multicast-encaps, MPLS Multicast Encapsulations.

When a router sends a packet over a P2MP LSP which egresses on an Ethernet-based network interface, the Ethernet frame uses a MAC unicast destination address when sending the packet over the primary P2MP LSP instance or over a P2P bypass LSP). Note that a MAC multicast destination address is also allowed in the draft-ietf-mpls-multicast-encaps. Therefore, at the ingress network interface on an Ethernet port, the router can accept both types of Ethernet destination addresses.

2.6.2.1. Procedures at Ingress LER Node

The following procedures occur at the root of the P2MP LSP (head-end or ingress LER node):

  1. First, the P2MP LSP state is established via the control plane. Each leaf of the P2MP LSP will have a next-hop label forwarding entry (NHLFE) configured in the forwarding plane for each outgoing interface.
  2. The user maps a specific multicast destination group address to the P2MP LSP in the base router instance by configuring a static multicast group under a tunnel interface representing the P2MP LSP.
  3. An FTN entry is programmed at the ingress of the head-end node that maps the FEC of a received user IP multicast packet to a list of outgoing interfaces (OIF) and corresponding NHLFEs.
  4. The head-end node replicates the received IP multicast packet to each NHLFE. Replication is performed at ingress toward the fabric and/or at egress forwarding engine depending on the location of the OIF.
  5. At ingress, the head-end node performs a PUSH operation on each of the replicated packets.

2.6.2.2. Procedures at LSR Node

The following procedures occur at an LSR node that is not a branch node:

  1. The LSR performs a label swapping operation on a leaf of the P2MP LSP. This is a conventional operation of an LSR in a P2P LSP. An ILM entry is programmed at the ingress of the LSR to map an incoming label to a NHLFE.

The following is an exception handling procedure for control packets received on an ILM in an LSR.

  1. Packets that arrive with the TTL in the outer label expiring are sent to the CPM for further processing and are not forwarded to the egress NHLFE.

2.6.2.3. Procedures at Branch LSR Node

The following procedures occur at an LSR node that is a branch node:

  1. The LSR performs a replication and a label swapping for each leaf of the P2MP LSP. An ILM entry is programmed at the ingress of the LSR to map an incoming label to a list of OIF and corresponding NHLFEs.
  2. There is a limit of 127 OIF/NHLFEs per ILM entry.

The following is an exception handling procedure for control packets received on an ILM in a branch LSR:

  1. Packets that arrive with the TTL in the outer label expiring are sent to the CPM for further processing and not copied to the LSP branches.

2.6.2.4. Procedures at Egress LER Node

The following procedures occur at the leaf node of the P2MP LSP (egress LER):

  1. The egress LER performs a pop operation. An ILM entry is programmed at the ingress of the egress LER to map an incoming label to a list of next-hop/OIF.

The following is an exception handling procedure for control packets received on an ILM in an egress LER.

  1. The packet is sent to the CPM for further processing if there is any of the IP header exception handling conditions set after the label is popped: 127/8 destination address, router alert option set, or any other options set.

2.6.2.5. Procedures at BUD LSR Node

The following are procedures at an LSR node which is both a branch node and an egress leaf node (bud node):

  1. The bud LSR performs a pop operation on one or many replications of the received packet and a swap operation of the remaining replications. An ILM entry is programmed at ingress of the LSR to map the incoming label to list of NHLFE/OIF and next-hop/OIF.
    Note however, the exact same packets are replicated to an LSP leaf and to a local interface.

The following are the exception handling procedures for control packets received on an ILM in a bud LSR:

  1. Packets which arrive with the TTL in the outer label expiring are sent to the CPM and are not copied to the LSP branches.
  2. Packets whose TTL does not expire are copied to all branches of the LSP. The local copy of the packet is sent to the CPM for further processing if there is any of the IP header exception handling conditions set after the label is popped: 127/8 destination address, router alert option set, or any other options set.

2.6.3. Ingress Path Management for P2MP LSP Packets

The SR OS provides the ingress multicast path management (IMPM) capability that allows users to manage the way IP multicast streams are forwarded over the router’s fabric and to maximize the use of the fabric multicast path capacity.

IMPM consists of two components, a bandwidth policy and a multicast information policy. The bandwidth policy configures the parameters of the multicast paths to the fabric. This includes the multicast queue parameters of each path. The multicast information policy configures the bandwidth and preference parameters of individual multicast flows corresponding to a channel, for example, a <*,G> or a <S,G>, or a bundle of channels.

By default, the XCM (on the 7950 XRS) and the IOM/IMM (on the 7750 SR and 7450 ESS) ingress data paths provides two multicast paths through the fabric referred to as high-priority path and low-priority path respectively. When a multicast packet is received on an ingress network or access interface or on a VPLS SAP, the packet’s classification will determine its forwarding class and priority or profile as per the ingress QoS policy. This then determines which of the SAP or interface multicast queues it must be stored in. By default SAP and interface expedited forwarding class queues forward over the high-priority multicast path and the non expedited forwarding class queues forward over the low-priority multicast path.

When IMPM on the ingress FP is enabled on the 7950 XRS, 7750 SR, or 7450 ESS, one or more multicast paths are enabled depending on the hardware in use. In addition, for all routers, multicast flows managed by IMPM are stored in a separate shared multicast queue for each multicast path. These queues are configured in the bandwidth policy.

IMPM maps a packet to one of the paths dynamically based on monitoring the bandwidth usage of each packet flow matching a <*,G> or <S,G> record. The multicast bandwidth manager also assigns multicast flows to a primary path based on the flow preference until the rate limits of each path is reached. At that point in time, a multicast flow is mapped to the secondary flow. If a path congests, the bandwidth manager will remove and black-hole lower preference flows to guarantee bandwidth to higher preference flows. The preference of a multicast flow is configured in the multicast info policy.

A packet received on a P2MP LSP ILM is managed by IMPM when IMPM is enabled on the ingress XMA or the ingress FP and the packet matches a specific multicast record. When IMPM is enabled but the packet does not match a multicast record, or when IMPM is disabled, a packet received on a P2MP LSP ILM is mapped to a multicast path.

2.6.3.1. Ingress P2MP Path Management on XCM/IOM/IMMs

On an ingress XCM or IOM/IMM, there are multiple multicast paths available to forward multicast packets, depending on the hardware being used. Each path has a set of multicast queues and associated with it. Two paths are enabled by default, a primary path and a secondary path, and represent the high-priority and low-priority paths respectively. Each VPLS SAP, access interface, and network interface will have a set of per forwarding class multicast and/or broadcast queues which are defined in the ingress QoS policy associated with them. The expedited queues are attached to the primary path while the non-expedited queues are attached to secondary path.

When IMPM is enabled and/or when a P2MP LSP ILM exists on the ingress XCM or IOM/IMM, the remaining multicast paths are also enabled. 16 multicast paths are supported by default with 28 on 7950 XRS systems and 7750 SR-12e systems, with the latter having the tools perform system set-fabric-speed fabric-speed-b. One path remains as a secondary path and the rest are primary paths.

A separate pair of shared multicast queues is created on each of the primary paths, one for IMPM managed packets and one for P2MP LSP packets not managed by IMPM. The secondary path does not forward IMPM managed packets or P2MP LSP packets. These queues have a default rate (PIR=CIR) and CBS/MBS/low-drop-tail thresholds, but these can be changed under the bandwidth policy.

A VPLS snooped packet, a PIM routed packet, or a P2MP LSP packet is managed by IMPM if it matches a <*,G> or a <S,G> multicast record in the ingress forwarding table and IMPM is enabled on the ingress XMA or the FP where the packet is received. The user enables IMPM on the ingress XMA data path or the FP data path using the config>card>fp>ingress>mcast-path-management command.

A packet received on an IP interface and to be forwarded to a P2MP LSP NHLFE or a packet received on a P2MP LSP ILM is not managed by IMPM when IMPM is disabled on the ingress XMA or the FP where the packet is received or when IMPM is enabled but the packet does not match any multicast record. A P2MP LSP packet duplicated at a branch LSR node is an example of a packet not managed by IMPM even when IMPM is enabled on the ingress XMA or the FP where the P2MP LSP ILM exists. A packet forwarded over a P2MP LSP at an ingress LER and which matches a <*,G> or a <S,G> is an example of a packet which is not managed by IMPM if IMPM is disabled on the ingress XMA or the FP where the packet is received.

When a P2MP LSP packet is not managed by IMPM, it is stored in the unmanaged P2MP shared queue of one of the primary multicast paths.

By default, non-managed P2MP LSP traffic is distributed across the IMPM primary paths using hash mechanisms. This can be optimized by enabling IMPM on any forwarding complex, which allows the system to redistributed this traffic on all forwarding complexes across the IMPM paths to achieve a more even capacity distribution. Be aware that enabling IMPM will cause routed and VPLS (IGMP and PIM) snooped IP multicast groups to be managed by IMPM.

The above ingress data path procedures apply to packets of a P2MP LSP at ingress LER, LSR, branch LSR, bud LSR, and egress LER. Note that in the presence of both IMPM managed traffic and unmanaged P2MP LSP traffic on the same ingress forwarding plane, the user must account for the presence of the unmanaged traffic on the same path when setting the rate limit for an IMPM path in the bandwidth policy.

2.6.4. RSVP Control Plane in a P2MP LSP

P2MP RSVP LSP is specified in RFC 4875, Extensions to Resource Reservation Protocol - Traffic Engineering (RSVP-TE) for Point-to-Multipoint TE Label Switched Paths (LSPs).

A P2MP LSP is modeled as a set of source-to-leaf (S2L) sub-LSPs. The source or root, for example the head-end node, triggers signaling using one or multiple path messages. A path message can contain the signaling information for one or more S2L sub-LSPs. The leaf sub-LSP paths are merged at branching points.

A P2MP LSP is identified by the combination of <P2MP ID, tunnel ID, extended tunnel ID> part of the P2MP session object, and <tunnel sender address, LSP ID> fields in the P2MP sender_template object.

A specific sub-LSP is identified by the <S2L sub-LSP destination address> part of the S2L_SUB_LSP object and an ERO and secondary ERO (SERO) objects.

The following are characteristics of this feature:

  1. Supports the de-aggregated method for signaling the P2MP RSVP LSP. Each root to leaf is modeled as a P2P LSP in the RSVP control plane. Only data plane merges the paths of the packets.
  2. Each S2L sub-LSP is signaled in a separate path message. Each leaf node responds with its own resv message. A branch LSR node will forward the path message of each S2L sub-LSP to the downstream LSR without replicating it. It will also forward the resv message of each S2L sub-LSP to the upstream LSR without merging it with the resv messages of other S2L sub-LSPs of the same P2MP LSP. The same is done for subsequent refreshes of the path and resv states.
  3. The node will drop aggregated RSVP messages on the receive side if originated by another vendor’s implementation.
  4. The user configures a P2MP LSP by specifying the optional create-time parameter p2mp-lsp following the LSP name. Next, the user creates a primary P2MP instance using the keyword primary-p2mp-instance. Then a path name of each S2L sub-LSP must added to the P2MP instance using the keyword s2l-path. The paths can be empty paths or can specify a list of explicit hops. The path name must exist and must have been defined in the config>router>mpls>path context.
  5. The same path name can be re-used by more than one S2L of the primary P2MP instance. However the to keyword must have a unique argument per S2L as it corresponds to the address of the egress LER node.
  6. The user can configure a secondary instance of the P2MP LSP to backup the primary one. In this case, the user enters the name of the secondary P2MP LSP instance under the same LSP name. One or more secondary instances can be created. The trigger for the head-end node to switch the path of the LSP from the primary P2MP instance to the secondary P2MP instance is to be determined. This could be based on the number of leaf LSPs which went down at any given time.
  7. The following parameters can be used with a P2MP LSP: adaptive, cspf, exclude, fast-reroute, from, hop-limit, include, metric, retry-limit, retry-timer, resignal-timer.
  8. The following parameters cannot be used with a P2MP LSP: adspec, primary, secondary, to.
  9. The node ingress LER will not inset an adspec object in the path message of an S2L sub-LSP. If received in the resv message, it is dropped. The operational MTU of an S2L path is derived from the MTU of the outgoing interface of that S2L path.
  10. The to parameter is not available at the LSP level but at the path level of each S2L sub-LSP of the primary or secondary instance of this P2MP LSP.
  11. The hold-timer configured in the config>router>mpls>hold-timer context applies when signaling or re-signaling an individual S2L sub-LSP path. It does not apply when the entire tree is signaled or re-signaled.
  12. The head-end node can add and/or remove a S2L sub-LSP of a specific leaf node without impacting forwarding over the already established S2L sub-LSPs of this P2MP LSP and without re-signaling them.
  13. The head-end node performs a make-before break (MBB) on an individual S2L path of a primary P2MP instance whenever it applies the FRR global revertive procedures to this path. If CSPF finds a new path, RSVP signals this S2L path with the same LSP-ID as the existing path.
  14. All other configuration changes, such as adaptive/no-adaptive (when an MBB is in progress), use-te-metric, no-frr, cspf/no-cspf, result in the tear-down and re-try of all affected S2L paths.
  15. MPLS requests CSPF to re-compute the whole set of S2L paths of a given active P2MP instance each time the P2MP re-signal timer expires. The P2MP re-signal timer is configured separately from the P2P LSP. MPLS performs a global MBB and moves each S2L sub-LSP in the instance into its new path using a new P2MP LSP ID if the global MBB is successful. This is regardless of the cost of the new S2L path.
  16. MPLS will request CSPF to re-compute the whole set of S2L paths of a given active P2MP instance each time the user performs a manual re-signal of the P2MP instance. MPLS then always performs a global MBB and moves each S2L sub-LSP in the instance into its new path using a new P2MP LSP ID if the global MBB is successful. This is regardless of the cost of the new S2L path. The user executes a manual re-signal of the P2MP LSP instance using the command: tools>perform>router>mpls>resignal p2mp-lsp lsp-name p2mp-instance instance-name.
  17. When performing global MBB, MPLS runs a separate MBB on each S2L in the P2MP LSP instance. If an S2L MBB does not succeed the first time, MPLS will re-try the S2L using the re-try timer and re-try count values inherited from P2MP LSP configuration. However, there is a global MBB timer set to 600 seconds and which is not configurable. If the global MBB succeeds, for example, all S2L MBBs have succeeded, before the global timer expires, MPLS moves the all S2L sub-LSPs into their new path. Otherwise when this timer expires, MPLS checks if all S2L paths have at least tried once. If so, it then aborts the global MBB. If not, it will continue until all S2Ls have re-tried once and then aborts the global MBB. Once global MBB is aborted, MPLS will move all S2L sub-LSPs into the new paths only if the set of S2Ls with a new path found is a superset of the S2Ls which have a current path which is up.
  18. While make-before break is being performed on individual S2L sub-LSP paths, the P2MP LSP will continue forwarding packets on S2L sub-LSP paths which are not being re-optimized and on the older S2L sub-LSP paths for which make-before-break operation was not successful. MBB will therefore result in duplication of packets until the old path is torn down.
  19. The MPLS data path of an LSR node, branch LSR node, and bud LSR node is able to re-merge S2L sub-LSP paths of the same P2MP LSP in case their ILM is on different incoming interfaces and their NHLFE is on the same or different outgoing interfaces. This could occur anytime there are equal cost paths through this node for the S2L sub-LSPs of this P2MP LSP.
  20. Link-protect FRR bypass using P2P LSPs is supported. In link protect, the PLR protecting an interface to a branch LSR will only make use of a single P2P bypass LSP to protect all S2L sub-LSPs traversing the protected interface.
  21. Refresh reduction on RSVP interface and on P2P bypass LSP protecting one or more S2L sub-LSPs.
  22. A manual bypass LSP cannot be used for protecting S2L paths of a P2MP LSP.
  23. The following MPLS features do operate with P2MP LSP:
    1. BFD on RSVP interface.
    2. MD5 on RSVP interface.
    3. IGP metric and TE metric for computing the path of the P2MP LSP with CSPF.
    4. SRLG constraint for computing the path of the P2MP LSP with CSPF. SRLG is supported on FRR backup path only.
    5. TE graceful shutdown.
    6. Admin group constraint.
  24. The following MPLS features are not operable with P2MP LSP:
    1. Class based forwarding over P2MP RSVP LSP.
    2. LDP-over-RSVP where the RSVP LSP is a P2MP LSP.
    3. Diff-Serv TE.
    4. Soft preemption of RSVP P2MP LSP.

2.6.5. Forwarding Multicast Packets over RSVP P2MP LSP in the Base Router

Multicast packets are forwarded over the P2MP LSP at the ingress LER based on a static join configuration of the multicast group against the tunnel interface associated with the originating P2MP LSP. At the egress LER, packets of a multicast group are received from the P2MP LSP via a static assignment of the specific <S,G> to the tunnel interface associated with a terminating LSP.

2.6.5.1. Procedures at Ingress LER Node

To forward multicast packets over a P2MP LSP, perform the following steps:

  1. Create a tunnel interface associated with the P2MP LSP: config>router>tunnel-interface rsvp-p2mp lsp-name. (The config>router>pim>tunnel-interface command has been discontinued.)
  2. Add static multicast group joins to the PIM interface, either as a specific <S,G> or as a <*,G>: config>router>igmp>tunnel-if>static>group>source ip-address and config>router>igmp>tunnel-if>static>group>starg.

The tunnel interface identifier consists of a string of characters representing the LSP name for the RSVP P2MP LSP. Note that MPLS will actually pass to PIM a more structured tunnel interface identifier. The structure will follow the one BGP uses to distribute the PMSI tunnel information in BGP multicast VPN as specified in draft-ietf-l3vpn-2547bis-mcast-bgp, Multicast in MPLS/BGP IP VPNs. The format is: <extended tunnel ID, reserved, tunnel ID, P2MP ID> as encoded in the RSVP-TE P2MP LSP session_attribute object in RFC 4875.

The user can create one or more tunnel interfaces in PIM and associate each to a different RSVP P2MP LSP. The user can then assign static multicast group joins to each tunnel interface. Note however that a given <*,G> or <S,G> can only be associated with a single tunnel interface.

A multicast packet which is received on an interface and which succeeds the RPF check for the source address is replicated and forwarded to all OIFs which correspond to the branches of the P2MP LSP. The packet is sent on each OIF with the label stack indicated in the NHLFE of this OIF. The packets will also be replicated and forwarded natively on all OIFs which have received IGMP or PIM joins for this <S,G>.

The multicast packet can be received over a PIM or IGMP interface which can be an IES interface, a spoke SDP-terminated IES interface, or a network interface.

In order to duplicate a packet for a multicast group over the OIF of both P2MP LSP branches and the regular PIM or IGMP interfaces, the tap mask for the P2MP LSP and that of the PIM based interfaces will need to be combined into a superset MCID.

2.6.5.2. Procedures at Egress LER Node

2.6.5.2.1. Procedures with a Primary Tunnel Interface

The user configures a tunnel interface and associates it with a terminating P2MP LSP leaf using the command: config>router>tunnel-interface rsvp-p2mp lsp-name sender sender-address. The config>router>pim>tunnel-interface command has been discontinued.

The tunnel interface identifier consists of a couple of string of characters representing the LSP name for the RSVP P2MP LSP followed by the system address of the ingress LER. The LSP name must correspond to a P2MP LSP name configured by the user at the ingress LER and must not contain the special character “:” Note that MPLS will actually pass to PIM a more structured tunnel interface identifier. The structure will follow the one BGP uses to distribute the PMSI tunnel information in BGP multicast VPN as specified in draft-ietf-l3vpn-2547bis-mcast-bgp.The format is: <extended tunnel ID, reserved, tunnel ID, P2MP ID> as encoded in the RSVP-TE P2MP LSP session_attribute object in RFC 4875.

The egress LER accepts multicast packets using the following methods:

  1. The regular RPF check on unlabeled IP multicast packets, which is based on routing table lookup.
  2. The static assignment which specifies the receiving of a multicast group <*,G> or a specific <S,G> from a primary tunnel-interface associated with an RSVP P2MP LSP.

One or more primary tunnel interfaces in the base router instance can be configured. In other words, the user is able to receive different multicast groups, <*,G> or specific <S,G>, from different P2MP LSPs. This assumes that the user configured static joins for the same multicast groups at the ingress LER to forward over a tunnel interface associated with the same P2MP LSP.

A multicast info policy CLI option allows the user to define a bundle and specify channels in the bundle that must be received from the primary tunnel interface. The user can apply the defined multicast info policy to the base router instance.

At any given time, packets of the same multicast group can be accepted from either the primary tunnel interface associated with a P2MP LSP or from a PIM interface. These are mutually exclusive options. As soon as a multicast group is configured against a primary tunnel interface in the multicast info policy, it is blocked from other PIM interfaces.

However, if the user configured a multicast group to be received from a given primary tunnel interface, there is nothing preventing packets of the same multicast group from being received and accepted from another primary tunnel interface. However, an ingress LER will not allow the same multicast group to be forwarded over two different P2MP LSPs. The only possible case is that of two ingress LERs forwarding the same multicast group over two P2MP LSPs towards the same egress LER.

A multicast packet received on a tunnel interface associated with a P2MP LSP can be forwarded over a PIM or IGMP interface which can be an IES interface, a spoke SDP-terminated IES interface, or a network interface.

Note that packets received from a primary tunnel-interface associated with a terminating P2MP LSP cannot be forwarded over a tunnel interface associated with an originating P2MP LSP.

2.7. Segment Routing With Traffic Engineering (SR-TE)

Segment routing adds the ability to perform shortest path routing and source routing using the concept of abstract segment to IS-IS and OSPF routing protocols. A segment can represent a local prefix of a node, a specific adjacency of the node (interface/next-hop), a service context, or a specific explicit path over the network. For each segment, the IGP advertises an identifier referred to as Segment ID (SID).

When segment routing is used together with MPLS data plane, the SID is a standard MPLS label. A router forwarding a packet using segment routing will therefore push one or more MPLS labels.

Segment routing using MPLS labels can be used in both shortest path routing applications (refer to the 7450 ESS, 7750 SR, 7950 XRS, and VSR Unicast Routing Protocols Guide for more information) and in traffic engineering (TE) applications, as described in this section.

The following are the objectives and applications of Segment Routing:

  1. ability for a node to specify a unicast shortest- or source-routed forwarding path with the same mechanism; re-use IGP to minimize the number of control plane protocols
  2. IGP-based MPLS tunnels without the addition of any other signaling protocol
  3. ability to tunnel services from ingress PE to egress PE with or without an explicit path, and without requiring forwarding plane or control plane state in intermediate nodes
  4. FRR: expand coverage of basic LFA to any topology with the use of source-routed backup path; pre-computation and set up of backup path without additional signaling
  5. support LFA policies with shared-risk constraints, admin-groups, link/node protection
  6. TE should include loose/strict options, distributed and centralized TE, path disjointness, ECMP-awareness, limited or no per-service state on midpoint and tail-end routers
  7. Fine Grained Flow Steering and Service Chaining via a centralized stateful Path Computation Element (PCE) such as the one provided by the Nokia Network Services Platform (NSP)

2.7.1. SR-TE Support

The following MPLS commands and nodes are supported:

  1. Global MPLS-level commands and nodes:
    interface, lsp, path, shutdown
  2. LSP-level commands and nodes:
    bgp-shortcut, bgp-transport-tunnel, exclude, hop-limit, include, metric, primary, retry-limit, retry-timer, shutdown, to, from, vprn-auto-bind
  3. Only a primary path is supported with a SR-TE LSP. The following primary path level commands and nodes are supported with SR-TE LSP:
    bandwidth, exclude, hop-limit, include, priority, shutdown

The following MPLS commands and nodes are not supported:

  1. Global MPLS level commands and nodes not applicable to SR-TE LSP (configuration is ignored):
    admin-group-frr, auto-bandwidth-multipliers, auto-lsp, bypass-resignal-timer, cspf-on-loose-hop, dynamic-bypass, exponent-backoff-retry, frr-object, hold-timer, ingress-statistics, least-fill-min-thd, least-fill-reoptim-thd, logger-event-bundling, lsp-init-retry-timeout, lsp-template, max-bypass-associations, mbb-prefer-current-hops, mpls-tp, p2mp-resignal-timer, p2mp-s2l-fast-retry, p2p-active-path-fast-retry, retry-on-igp-overload, secondary-fast-retry-timer, shortcut-local-ttl-propagate, shortcut-transit-ttl-propagate, srlg-database, srlg-frr, static-lsp, static-lsp-fast-retry, user-srlg-db
  2. LSP level commands and nodes not supported with SR-TE LSP (configuration blocked):
    adaptive, adspec, auto-bandwidth, bfd-enable, class-forwarding, class-type, dest-global-id, dest-tunnel-number, egress-statistics, exclude-node, fast-reroute, ingress-statistics, ldp-over-rsvp, least-fill, load-balancing-weight, main-ct-retry-limit, p2mp-id, primary-p2mp-instance, propagate-admin-group, protect-tp-path, revert-timer, protect-tp-path, rsvp-resv-style, secondary, working-tp-path
  3. LSP-level commands and nodes not supported with SR-TE LSP (configuration ignored):
    igp-shortcut, cspf
  4. The following primary path level commands and nodes are not supported with SR-TE LSP (configuration blocked):
    adaptive, backup-class-type, bfd-enable, class-type, record, record-label
  5. Secondary path is not supported.

The user can associate an empty path or a path with strict or loose explicit hops with the primary paths of the SR-TE LSP using the hop and primary CLI commands.

A hop that corresponds to an adjacency SID must be identified with its far-end host IP address (next-hop) on the subnet. If the local end host IP address is provided, this hop is ignored because this router can have multiple adjacencies (next-hops) on the same subnet.

A hop that corresponds to a node SID is identified by the prefix address.

Details of processing the user configured path hops are provided in SR-TE LSP Instantiation.

2.7.2. SR-TE LSP Instantiation

When an SR-TE LSP is configured on the router, its path can be computed by the router or by an external TE controller referred to as a Path Computation Element (PCE). This feature works with the Nokia stateful PCE which is part of the Network Services Platform (NSP).The SR OS support three different modes of operations configurable on a per SR-TE LSP basis:

  1. When the path of the LSP is computed by the router acting as a PCE Client (PCC), the LSP is referred to as PCC-initiated and PCC-controlled.
    A PCC-initiated and controlled SR-TE LSP has the following characteristics:
    1. Can contain strict or loose hops, or a combination of both
    2. Does not support CSPF and local path computation takes the form of hop-to-label translation
    3. The capability exists to report a SR-TE LSP to synchronize the LSP database of a stateful PCE server using the pce-report option, but the LSP path cannot be updated by the PCE. In other words, the control of the LSP is maintained by the PCC
  2. When the path of the LSP is computed by the PCE at the request of the PCC, it is referred to as PCC-initiated and PCE-computed.
    A PCC-initiated and PCE-computed SR-TE LSP supports the Passive Stateful Mode, which enables the pce-computation option for the SR-TE LSP so PCE can perform path computation at the request of the PCC only. PCC retains control.
    The capability exists to report a SR-TE LSP to synchronize the LSP database of a stateful PCE server using the pce-report option.
  3. When the path of the LSP is computed and updated by the PCE following a delegation from the PCC, it is referred to as PCC-initiated and PCE-controlled.
    A PCC-initiated and PCE-controlled SR-TE LSP allows Active Stateful Mode, which enables the pce-control option for the SR-TE LSP so PCE can perform path computation and updates following a network event without the explicit request from the PCC. PCC delegates full control.

The user can configure the path computation requests only (PCE-computed) or both path computation requests and path updates (PCE-controlled) to PCE for a specific LSP using the pce-computation and pce-control commands.

The pce-computation option sends the path computation request to the PCE instead of the local CSPF. When this option is enabled, the PCE acts in Passive Stateful mode for this LSP. In other words, the PCE can perform path computations for the LSP only at the request of the router. This is used in cases where the operator wants to use the PCE specific path computation algorithm instead of the local router CSPF algorithm.

The default value is no pce-computation. Enabling pce-computation requires that the cspf option is also enabled, otherwise the command is rejected. If the cspf option is disabled for an LSP, the pce-computation option will also be automatically disabled.

Enabling cspf without enabling pce-computation for a SR-TE LSP means that, internally, the router still performs label translation as if cspf was disabled, because there is no support of CSPF for a SR-TE LSP on the router.

The pce-control option allows the router to delegate full control of the LSP to the PCE (PCE-controlled). Enabling it means the PCE is acting in Active Stateful mode for this LSP and allows PCE to reroute the path following a failure or to re-optimize the path and update the router without requiring the router to request it.

Note:

  1. The user can delegate CSPF and non-CSPF LSPs.
  2. The user can delegate LSPs which have the pce-computation option enabled or disabled. The LSP maintains its latest active path computed by PCE or the router at the time it was delegated. The PCE will only make an update to the path at the next network event or re-optimization. The default value is no pce-control.

In all cases, the PCC LSP database is synchronized with the PCE LSP database using the PCEP Path Computation State Report (PCRpt) message for LSPs that have the pce-report command enabled.

The global MPLS level pce-report command can be used to enable or disable PCE reporting for all SR-TE LSPs for the purpose of LSP database synchronization. This configuration is inherited by all LSPs of a given type. The PCC reports both CSPF and non-CSPF LSP. The default value is disabled (no pce-report). This default value controls the introduction of PCE into an existing network and allows the operator to decide if all LSP types need to be reported.

The LSP level pce-report command overrides the global configuration for reporting LSP to PCE. The default value is to inherit the global MPLS level value. The inherit value returns the LSP to inherit the global configuration for that LSP type.

Note:

If PCE reporting is disabled for the LSP, either due to inheritance or due to LSP level configuration, enabling the pce-control option for the LSP has no effect. To help troubleshoot this situation, operational values of both the pce-report and pce-control are added to the output of the LSP show commands.

For more information about configuring PCC-Initiated and PCC-Controlled LSPs, see Configuring PCC-controlled, PCE-computed, and PCE-controlled SR-TE LSPs.

2.7.2.1. PCC-Initiated and PCC-Controlled LSP

In this mode of operation, the user configures the LSP name and the primary path name with the path information in the referenced path name, entering a full or partial explicit path with all or some hops to the destination of the LSP. Each hop is specified as an address of a node or an address of the next-hop of a TE link.

To configure the primary path to always use a specific link whenever it is up, the strict hop must be entered as an address corresponding to the next-hop of an adjacency SID. If the strict hop corresponds to an address of a loopback address, it is translated into an adjacency SID as explained below and therefore does not guarantee that the same specific TE link is picked.

To use an SR-TE path that consists of unprotected adjacency SIDs, then each hop of the path must be configured as a strict hop with the address matching the next-hop of the adjacency SID and protection on each of these adjacencies must be disabled as explained in SR-TE LSP Path Computation.

MPLS assigns a Tunnel-ID to the SR-TE LSP and a path-ID to each new instantiation of the primary path, as in an RSVP-TE LSP. These IDs are useful to represent the MBB path of the same SR-TE LSP which need to co-exist during the update of the primary path.

Note:

The concept of MBB is not exactly accurate in the context of a SR-TE LSP because there is no signaling involved and, as such, the new path information immediately overrides the older one.

The router retains full control of the path of the LSP. CSPF is not supported and, as such, the full or partially explicit path is instantiated as-is and no other constraint (such as SRLG, admin-group, hop-count, or bandwidth) is checked. Only the LSP path label stack size is checked by MPLS against the maximum value configured for the LSP after the TE-DB hop-to-label translation returns the label stack. See SR-TE LSP Path Computation for more information about this check.

The ingress LER performs the following steps to resolve the user-entered path before programming it in the data path:

  1. MPLS passes the path information to TE-DB, which converts the list of hops into a label stack by scanning the TE database for adjacency and node SID information which belongs to the router or link identified by each hop address. If the conversion is successful, the TE database will return the actual selected hop SIDs plus labels as well the configured path hop addresses which were used as the input for this conversion.
    Details of this step are as follows:
    1. A loose hop with an address matching any interface (loopback or not) of a router (identified by router-ID) is always translated to a node SID. If the prefix matching the hop address has a node SID in the TE database, it is selected by preference. If not, the node SID of any loopback interface of the same router that owns the hop address is selected. In the latter case, the lowest IP-address of that router that has a /32 Prefix-SID is selected.
    2. A strict hop with an address matching any interface (loopback or not) of a router (identified by router-ID) is always translated to an adjacency SID. If the hop address matches the host address reachable in a local subnet from the previous hop, then the adjacency SID of that adjacency is selected. If the hop address matches a loopback interface, it is translated to the adjacency SID of any link from the previous hop which terminates on the router owning the loopback. The adjacency SID label of the selected link is used.
      In both cases, it is possible to have multiple matching previous hops in the case of a LAN interface. In this case, the adjacency-SID with the lowest interface address is selected.
    3. All IGP instances are scanned from the lowest to the highest instance ID, beginning with IS-IS instances and then OSPF instances; not only the IGP instance which resolved the prefix of the destination address of the LSP in RTM is used. For the first instance via which all specified path hop addresses can be translated, the label stack is selected. The hop-to-SID/label translation tool does not support paths that cross area boundaries. All SID/labels of a given path are therefore taken from the same IGP area and instance.
    4. Unnumbered network IP interfaces, which are supported in the router’s TE database, can be selected when converting the hops into an adjacency SID label when the user has entered the address of a loopback interface as a strict hop; however, the user cannot configure an unnumbered interface as a hop in the path definition.
      Note:

      For the hop-to-label translation to operate, the user must enable TE on the network links, meaning to add the network interfaces to MPLS and RSVP. In addition, the user must enable the traffic-engineering option on all participating router IGP instances. Note that if any router has the database-export option enabled in the participating IGP instances to populate the learned IGP link state information into the TE-DB, then enabling of the traffic-engineering option is not required. For consistency purposes, it is recommended to have the traffic-engineering option always enabled.

  2. The ingress LER validates the first hop of the path to determine the outgoing interface and next-hop to forward the packet to and programs the data path according to the following conditions.
    1. If the first hop corresponds to an adjacency SID (host address of next-hop on the link’s subnet), the adjacency SID label is not pushed. In other words, the ingress LER treats forwarding to a local interface as a push of an implicit-null label.
    2. If the first hop is a node SID of some downstream router, then the node SID label is pushed.
    In both cases, the SR-TE LSP tracks and rides the SR shortest path tunnel of the SID of the first hop.
  3. In the case where the router is configured as a PCC and has a PCEP session to a PCE, the router sends a PCRpt message to update PCE with the state of UP and the RRO object for each LSP which has the pce-report option enabled. PE router does not set the delegation control flag to keep LSP control. The state of the LSP is now synchronized between the router and the PCE.

2.7.2.1.1. Guidelines for Using PCC-Initiated and PCC-Controlled LSPs

The router does not support CSPF path computation for a SR-TE LSP and uses the hop-to-label translation to compute the path. As such, the ingress LER does not monitor network events which affect the reachability of the adjacency SID or node SID used in the label stack of the LSP, and so, the label stack is not updated to reflect changes in the path. As a result, it is recommended to use this type of SR-TE LSP in the following configurations only:

  1. empty path
  2. path with a single node-SID loose-hop
  3. path of an LSP to a directly-connected router (single-hop LSP) with an adjacency-SID or a node-SID loose/strict hop

In addition, the user can configure a SR-TE LSP with a single loose-hop using the anycast SID concept to provide LSR node protection within a given plane of the network TE topology. This is illustrated in Figure 36. The user configures all LSRs in a given plane with the same loopback interface address, which must be different from that of the system interface and the router-id of the router, and assigns them the same node-SID index value. All routers must use the same SRGB.

Figure 36:  Multi-plane TE with Node Protection

Then user configures in a LER a SR-TE LSP to some destination and adds to its path a loose-hop matching the anycast loopback address. The SR-TE LSP to any destination will hop over the closest of the LSRs owning the anycast SID because the resolution of the node-SID for that anycast loopback address uses the closest router. When that router fails, the resolution is updated to the next closest router owning the anycast SID without changing the label stack of the SR-TE LSP.

2.7.2.2. PCC-Initiated and PCE-Computed/Controlled LSP

In this mode of operation, the ingress LER uses Path Computation Element Communication Protocol (PCEP) to communicate with a PCE-based external TE controller (also referred to as the PCE). The router instantiates a PCEP session to the PCE. The router is referred to as the PCE Client (PCC).

When the user enables the pce-computation option for one or more SR-TE LSPs, a PCE performs path computations at the request of the PCC, which is referred to as passive control mode. If the user enables the pce-control option for an LSP, PCE can also perform both path computation and periodic re-optimization of the LSP path without an explicit request from the PCC. This is referred to as active control mode.

For the PCC to communicate with a PCE about the management of the path of a SR-TE LSP, the router implements the extensions to PCEP in support of segment routing (see the PCEP section for more information).This feature works with the Nokia stateful PCE, which is part of the Network Services Platform (NSP).

The following procedure describes configuring and programming a PCC-initiated SR-TE LSP when passive or active control is given to the PCE.

  1. The SR-TE LSP configuration is created on the PE router via CLI or via OSS/SAM.
    The configuration dictates which PCE control mode is desired: active (pce-control option enabled) or passive (pce-computation enabled and pce-control disabled).
  2. The PCC assigns a unique PLSP-ID to the LSP. The PLSP-ID uniquely identifies the LSP on a PCEP session and must remain constant during its lifetime. PCC on the router tracks the association of {PLSP-ID, SRP-ID} to {Tunnel-ID, Path-ID} and uses the latter to communicate with MPLS about a specific path of the LSP.
  3. The PE router does not validate the entered path. While the PCC can include the IRO objects for any loose or strict hop in the configured LSP path in the Path Computation Request (PCReq) message to PCE, the PCE ignores them and computes the path with the other constraints, excepting the IRO.
  4. The PE router sends a PCReq message to the PCE to request a path for the LSP and includes the LSP parameters in the METRIC object, the LSPA object, and the Bandwidth object. It also includes the LSP object with the assigned PLSP-ID. At this point, the PCC does not delegate control of the LSP to the PCE.
  5. PCE computes a new path, reserves the bandwidth, and returns the path in a Path Computation Reply (PCRep) message with the computed ERO in the ERO object. It also includes the LSP object with the unique PLSP-ID, the METRIC object with the computed metric value if any, and the Bandwidth object.
    Note:

    For the PCE to use the SRLG path diversity and admin-group constraints in the path computation, the user must configure the SRLG and admin-group membership against the MPLS interface and verify that the traffic-engineering option is enabled in IGP. This causes IGP to flood the link SRLG and admin-group membership in its participating area and for the PCE to learn it in its TE database.

  6. The PE router updates the CPM and the data path with the new path.
    Up to this step, the PCC and PCE are using passive stateful PCE procedures. The next steps synchronize the LSP database of the PCC and PCE for both PCE-computed and PCE-controlled LSPs. They also initiate the active PCE stateful procedures for the PCE-controlled LSP only.
  7. PE router sends a PCRpt message to update PCE with the state of UP and the RRO as confirmation, including the LSP object with the unique PLSP-ID. For a PCE-controlled LSP, the PE router also sets a delegation control flag to delegate control to the PCE. The state of the LSP is now synchronized between the router and the PCE.
  8. Following a network event or re-optimization, PCE computes a new path for a PCE-Controlled LSP and returns it in a Path Computation Update (PCUpd) message with the new ERO. It includes the LSP object with the same unique PLSP-ID assigned by the PCC and the Stateful Request Parameter (SRP) object with a unique SRP-ID-number to track error and state messages specific to this new path.
  9. The PE router updates the CPM and the data path with the new path.
  10. The PE router sends a new PCRpt message to update PCE with the state of UP and the RRO as confirmation. The state of the LSP is now synchronized between the router and the PCE.
  11. If the user makes any configuration change to the PCE-computed or PCE-controlled LSP, MPLS requests PCC to first revoke delegation in a PCRpt message (PCE-controlled only), and then MPLS and PCC follow the above steps to convey the changed constraint to PCE, which will result in a new path programmed into the data path, the LSP databases of PCC and PCE to be synchronized, and the delegation to be returned to PCE.
    In the case of an SR-TE LSP, MBB is not supported. Therefore, PCC first tears down the LSP and sends a PCRpt message to PCE with the Remove flag set to 1 before following this configuration change procedure.
Note:

The above procedures are followed when the user performs a no shutdown on a PCE-controlled or PCE-computed LSP. The starting point is an administratively-down LSP with no active paths.

The following steps are followed for an LSP with an active path:

  1. If the user enabled the pce-computation option on a PCC-controlled LSP which has an active path, no action is performed until the next time the router needs a path for the LSP following a network event of an LSP parameter change. At that point the procedures above are followed.
  2. If the user enabled the pce-control option on a PCC-controlled or PCE-computed LSP which has an active path, PCC will issue a PCRpt message to PCE with the state of UP and the RRO of the active path. It will set delegation control flag to delegate control to PCE. PCE will keep the active path of the LSP and will not update until the next network event or re-optimization. At that point the procedures above are followed.

The PCE supports the computation of disjoint paths for two different LSPs originating or terminating on the same or different PE routers. To indicate this constraint to PCE, the user must configure the PCE path profile ID and path group ID the LSP belongs to. These parameters are passed transparently by PCC to PCE and, so, opaque data to the router. The user can configure the path profile and path group using the path-profile profile-id [path-group group-id] command.

The association of the optional path group ID is to allow PCE determine which profile ID this path group ID must be used with. One path group ID is allowed per profile ID. The user can, however, enter the same path group ID with multiple profile IDs by executing this command multiple times. A maximum of five entries of path-profile [path-group] can be associated with the same LSP. More details of the operation of the PCE path profile are provided in the PCEP section of this guide.

2.7.3. SR-TE LSP Path Computation

For PCC-controlled SR-TE LSPs, CSPF is not supported on the router. Whether the cspf option is enabled or disabled for a SR-TE LSP, MPLS makes a request to the TE-DB to get the label corresponding to each hop entered by the user in the primary path of the SR-TE LSP. See PCC-Initiated and PCC-Controlled LSP for details of the hop-to-label translation.

The user can configure the path computation request of a CSPF-enabled SR-TE LSP to be forwarded to a PCE instead of the local router CSPF by enabling the pce-computation option, as explained in SR-TE LSP Instantiation. The user can further delegate the re-optimization of the LSP to the PCE by enabling the pce-control option. In both cases, PCE is responsible for determining the label required for each returned explicit hop and includes this in the SR-ERO.

In all cases, the user can configure the maximum number of labels which the ingress LER can push for a given SR-TE LSP by using the max-sr-labels command.

This command is used to set a limit on the maximum label stack size of the SR-TE LSP primary path so as to allow room to insert additional transport, service, and other labels when packets are forwarded in a given context.

CLI Syntax:
config>router>mpls>lsp>max-sr-labels label-stack-size [additional-frr-labels labels]

The max-sr-labels label-stack-size value should be set to account for the desired maximum label stack of the primary path of the SR-TE LSP. Its range is 1-11 and the default value is 6.

The value in additional-frr-labels labels should be set to account for additional labels inserted by remote LFA or Topology Independent LFA (TI-LFA) for the backup next-hop of the SR-TE LSP. Its range is 0-3 labels with a default value of 1.

The sum of both label values represents the worst case transport of SR label stack size for this SR-TE LSP and is populated by MPLS in the TTM such that services and shortcut applications can check it to decide if a service can be bound or a route can be resolved to this SR-TE LSP. More details of the label stack size check and requirements in various services and shortcut applications are provided in Service and Shortcut Application SR-TE Label Stack Check.

The maximum label stack supported by the router is discussed in Data Path Support and always signaled by PCC in the PCEP Open object as part of the SR-PCE-CAPABILITY TLV. It is referred to as the Maximum Stack Depth (MSD).

In addition, the per-LSP value for the max-sr-labels label-stack-size option, if configured, is signaled by PCC to PCE in the Segment-ID (SID) Depth value in a METRIC object for both a PCE-computed LSP and a PCE-controlled LSP. PCE will compute and provide the full explicit path with TE-links specified. If there is no path with the number of hops lower than the MSD value, or the SID Depth value if signaled, a reply with no path is returned to PCC.

For a PCC-controlled LSP, if the label stack returned by the TE-DB’s hop-to-label translation exceeds the per LSP maximum SR label stack size, the LSP is brought down.

2.7.3.1. Service and Shortcut Application SR-TE Label Stack Check

If a packet forwarded in a service or a shortcut application resulted in the net label stack size being pushed on the packet to exceed the maximum label stack supported by the router, the packet got dropped on the egress. Each service and shortcut application on the router performs a check of the resulting net label stack after pushing all the labels required for forwarding the packet in that context.

To that effect, the MPLS module populates each SR-TE LSP in the TTM with the maximum transport label stack size, which consists of the sum of the values in max-sr-labels label-stack-size and additional-frr-labels labels.

Each service or shortcut application will then add the additional, context-specific labels, such as service label, entropy/hash label, and control-word, required to forward the packet in that context and to check that the resulting net label stack size does not exceed the maximum label stack supported by the router.

If the check succeeds, the service is bound or the prefix is resolved to the SR-TE LSP.

If the check fails, the service will not bind to this SR-TE LSP. Instead, it will either find another SR-TE LSP or another tunnel of a different type to bind to, if the user configured the use of other tunnel types. Otherwise, the service will go down. When the service uses a SDP with one or more SR-TE LSP names, the spoke SDP bound to this SDP will remain operationally down as long as at least one SR-TE LSP fails the check. In this case, a new spoke SDP flag is displayed in the show output of the service: "labelStackLimitExceeded". Similarly, the prefix will not get resolved to the SR-TE LSP and will either be resolved to another SR-TE LSP or another tunnel type, or will become unresolved.

The value of additional-frr-labels labels is checked against the maximum value across all IGP instances of the parameter frr-overhead. This parameter is computed within a given IGP instance as shown in Table 14.

Table 14:  frr-overhead Parameter Values

Condition

frr-overhead Parameter Value

segment-routing is disabled in the IGP instance

0

segment-routing is enabled but remote-lfa is disabled

0

segment-routing is enabled and remote-lfa is enabled

1

When the user configures or changes the configuration of additional-frr-labels, MPLS ensures that the new value accommodates the frr-overhead value across all IGP instances.

Example:

  1. The user configures the config>router>isis>loopfree-alternate remote-lfa command.
  2. The user creates a new SR-TE LSP or changes the configuration of an existing as follows: mpls>lsp>max-sr-labels 10 additional-frr-labels 0.
  3. Performing a no shutdown of the new LSP or changing the existing LSP configuration is blocked because the IS-IS instance enabled remote LFA, which requires one additional label on top of the 10 SR labels of the primary path of the SR-TE LSP.

If the check is successful, MPLS then adds max-sr-labels and additional-frr-labels and checks that it is lower or equal to the maximum label stack supported by the router. MPLS then populates the value of {max-sr-labels + additional-frr-labels}, along with tunnel information in TTM, and also passes max-sr-labels to the PCEP module.

Conversely, if the user tries a configuration change that results in a change to the computed frr-overhead, then IGP will check that all SR-TE LSPs can properly account for the overhead or the change is rejected. On the IGP, enabling remote-lfa may cause the frr-overhead to change.

Example:

  1. An MPLS LSP is administratively enabled and has mpls>lsp>max-sr-labels 10 additional-frr-overhead 0 configured.
  2. The current configuration in IS-IS has the loopfree-alternate command disabled.
  3. The user attempts to configure
    isis>loopfree-alternate remote-lfa. This changes frr-overhead to 1.
    This configuration change would be blocked.

2.7.4. SR-TE LSP Protection

Each path is locally protected along the network using LFA/remote-LFA next-hop whenever possible. The protection of a node SID re-uses the LFA and remote LFA features introduced with segment routing shortest path tunnels; the protection of an adjacency SID has been added to the SR OS in the specific context of an SR-TE LSP to augment the protection level. The user must enable the loopfree-alternate [remote-lfa] option in IS-IS or OSPF.

An SR-TE LSP has state at the ingress LER only. The LSR has state for the node SID and adjacency SID, whose labels are programmed in label stack of the received packet and which represent the part of the ERO of the SR-TE LSP on this router and downstream of this router. In order to provide protection for a SR-TE LSP, each LSR node must attempt to program a link-protect or node-protect LFA next-hop in the ILM record of a node SID or of an adjacency SID and the LER node must do the same in the LTN record of the SR-TE LSP. The following are details of the behavior:

  1. When the ILM record is for a node SID of a downstream router which is not directly connected, the ILM of this node SID points to the backup NHLFE computed by the LFA SPF and programmed by the SR module for this node SID. Depending on the topology and LFA policy used, this can be a link-protect or node-protect LFA next-hop.
    This behavior is already supported in the SR shortest path tunnel feature at both LER and LSR. As such, an SR-TE LSP that transits at an LSR and that matches the ILM of a downstream node SID automatically takes advantage of this protection when enabled. If required, node SID protection can be disabled under the IGP instance by excluding the prefix of the node SID from LFA.
  2. When the ILM is for a node SID of a directly connected router, then the LFA SPF only provides link protection. The ILM or LTN record of this node SID points to the backup NHLFE of this LFA next-hop. An SR-TE LSP that transits at an LSR and that matches the ILM of a neighboring node SID automatically takes advantage of this protection when enabled.
    Note:

    Only link protection is possible in this case because packets matching this ILM record can either terminate on the neighboring router owning the node SID or can be forwarded to different next-hops of the neighboring router; that is, to different next-next-hops of the LSR providing the protection. The LSR providing the connection does not have context to distinguish among all possible SR-TE LSPs and, as such, can only protect the link to the neighboring router.

  3. When the ILM or LTN record is for an adjacency SID, it is treated as in the case of a node SID of a directly connected router (as above).
    When protecting an adjacency SID, the PLR first tries to select a parallel link to the node SID of the directly connected neighbor. That is the case when this node SID is reachable over parallel links. The selection is based on lowest interface ID. When no parallel links exist, then regular LFA/rLFA algorithms are applied to find a loopfree path to reach the node SID of the neighbor via other neighbors.
    The ILM or LTN for the adjacency SID must point to this backup NHLFE and will benefit from FRR link-protection. As a result, an SR-TE LSP that transits at an LSR and matches the ILM of a local adjacency SID automatically takes advantage of this protection when enabled.
  4. At the ingress LER, the LTN record points to the SR-TE LSP NHLFE, which itself will point to the NHLFE of the SR shortest path tunnel to the node SID or adjacency SID of the first hop in the ERO of the SR-TE LSP. As such, the FRR link or node protection at ingress LER is inherited directly from the SR shortest path tunnel.

When an adjacency to a neighbor fails, IGP withdraws the advertisement of the link TLV information as well as its adjacency SID sub-TLV. However, the LTN or ILM record of the adjacency SID must be kept in the data path for a sufficient period of time to allow the ingress LER to compute a new path after IGP converges. If the adjacency is restored before the timer expires, the timer is aborted as soon as the new ILM or LTN records are updated with the new primary and backup NHLFE information. By default, the ILM/LTN and NHLFE information is kept for a period of 15 seconds.

The adjacency SID hold timer is configured using the adj-sid-hold command, and activated when the adjacency to neighbor fails due to the following conditions:

  1. The network IP interface went down due a link or port failure or due to the user performing a shutdown of the port.
  2. The user shuts down the network IP interface in the config>router or config>router>ospf/isis context.
  3. The adjacency SID hold timer is not activated if the user deleted an interface in the config>router>ospf/isis context.
Note:

  1. The above timer does not apply to the ILM or LTN of a node SID, because NHLFE information is updated in the data path as soon as IGP is converged locally and a new primary and LFA backup next-hops have been computed.
  2. The label information of the primary path of the adjacency SID is maintained and re-programmed if the adjacency is restored before the above timer expires. However, the backup NHLFE may change when a new LFA SPF is run while the adjacency ILM is being held by the timer running. An update to the backup NHLFE is performed immediately following the LFA SPF and may cause packets to drop.
  3. A new PG-ID is assigned each time an adjacency comes back up. This PG-ID is used by the ILM of the adjacency SID and the ILMs of all downstream node SIDs which resolve to the same next-hop.

While protection is enabled globally for all node SIDs and local adjacency SIDs when the user enables the loopfree-alternate option in ISIS or OSPF at the LER and LSR, there are applications where the user wants traffic to never divert from the strict hop computed by CSPF for a SR-TE LSP. In that case, the user can disable protection for all adjacency SIDs formed over a given network IP interface using the sid-protection command.

The protection state of an adjacency SID is advertised in the B-FLAG of the IS-IS or OSPF Adjacency SID sub-TLV. No mechanism exists in PCEP for the PCC to signal to PCE the constraint to use only adjacency SIDs, which are not protected. The Path Profile ID is configured in PCE with the no-protection constraint.

2.7.5. Static Route Resolution using SR-TE LSP

The user can forward packets of a static route to an indirect next-hop over an SR-TE LSP programmed in TTM by configuring the following static route tunnel binding command:

CLI Syntax:
config>router>static-route-entry {ip-prefix/prefix-length} [mcast] indirect {ip-address} tunnel-next-hop
resolution {any | disabled | filter}
resolution-filter
[no] sr-te
[no] [lsp name1]
[no] [lsp name2]
.
.
[no] [lsp name-N]
exit
[no] disallow-igp
exit
exit

The user can select the sr-te tunnel type and either specify a list of SR-TE LSP names to use to reach the indirect next-hop of this static route or have the SR-TE LSPs automatically select the indirect next-hop in TTM.

2.7.6. BGP Shortcuts Using SR-TE LSP

The user can forward packets of BGP prefixes over an SR-TE LSP programmed in TTM by configuring the following BGP shortcut tunnel binding command:

CLI Syntax:
config>router>bgp>next-hop-resolution
shortcut-tunnel
[no] family {ipv4}
resolution {any | disabled | filter}
resolution-filter
[no] sr-te
exit
exit
exit

2.7.7. BGP Label Route Resolution Using SR-TE LSP

The user can enable SR-TE LSP, as programmed in TTM, for resolving the next-hop of a BGP IPv4 or IPv6 (6PE) label route by enabling the following BGP transport tunnel command:

CLI Syntax:
config>router>bgp>next-hop-res>
labeled-routes
transport-tunnel
[no] family {label-ipv4 | label-ipv6 | vpn}
resolution {any | disabled | filter}
resolution-filter
[no] sr-te
exit
exit
exit

2.7.8. Service Packet Forwarding using SR-TE LSP

An SDP sub-type of the MPLS encapsulation type allows service binding to a SR-TE LSP programmed in TTM by MPLS:

Example:
*A:7950 XRS-20# configure service sdp 100 mpls create
*A:7950 XRS-20>config>service>sdp$ sr-te-lsp lsp-name

The user can specify up to 16 SR-TE LSP names. The destination address of all LSPs must match that of the SDP far-end option. Service data packets are sprayed over the set of LSPs in the SDP using the same procedures as for tunnel selection in ECMP. Each SR-TE LSP can, however, have up to 32 next-hops at the ingress LER when the first segment is a node SID-based SR tunnel. Consequently, service data packet will be forwarded over one of a maximum of 16x32 next-hops. The tunnel-far-end option is not supported. In addition, the mixed-lsp-mode option does not support the sr-te tunnel type.

The signaling protocol for the service labels for an SDP using a SR-TE LSP can be configured to static (off), T-LDP (tldp), or BGP (bgp).

An SR-TE LSP can be used in VPRN auto-bind with the following commands:

CLI Syntax:
config>service>vprn>
auto-bind-tunnel
resolution {any | disabled | filter}
resolution-filter
[no] sr-te
exit
exit

Both VPN-IPv4 and VPN-IPv6 (6VPE) are supported in a VPRN service using segment routing transport tunnels with the auto-bind-tunnel command.

This auto-bind-tunnel command is also supported with BGP EVPN service, as shown below:

CLI Syntax:
config>service>vpls>bgp-evpn>mpls>
auto-bind-tunnel
resolution {any | disabled | filter}
resolution-filter
[no] sr-te
exit
exit

The following service contexts are supported with SR-TE LSP:

  1. VLL, LDP VPLS, IES/VPRN spoke-interface, R-VPLS, BGP EVPN
  2. BGP-AD VPLS, BGP-VPLS, BGP VPWS when the use-provisioned-sdp option is enabled in the binding to the PW template
  3. intra-AS BGP VPRN for VPN-IPv4 and VPN-IPv6 prefixes with both auto-bind and explicit SDP
  4. inter-AS options B and C for VPN-IPv4 and VPN-IPv6 VPRN prefix resolution
  5. IPv4 BGP shortcut and IPv4 BGP label route resolution
  6. IPv4 static route resolution
  7. multicast over IES/VPRN spoke interface with spoke-sdp riding a SR-TE LSP

2.7.9. Data Path Support

The support of SR-TE in the data path requires that the ingress LER pushes a label stack where each label represents a hop, a TE link, or a node, in the ERO for the LSP path computed by the router or the PCE. However, only the label and the outgoing interface to the first strict/loose hop in the ERO factor into the forwarding decision of the ingress LER. In other words, the SR-TE LSP only needs to track the reachability of the first strict/loose hop.

This actually represents the NHLFE of the SR shortest path tunnel to the first strict/loose hop. SR OS keeps the SR shortest path tunnel to a downstream node SID or adjacency SID in the tunnel table and so its NHLFE is readily available. The rest of the label stack is not meaningful to the forwarding decision. In this document, “super NHLFE” refers to this part of the label stack because it can have a much larger size.

As a result, an SR-TE LSP is modeled in the ingress LER data path as a hierarchical LSP with the super NHLFE is tunneled over the NHLFE of the SR shortest path tunnel to the first strict/loose hop in the SR-TE LSP path ERO.

Some characteristics of this design are as follows:

  1. The design saves on NHLFE usage. When many SR TE LSPs are going to the same first hop, they are riding the same SR shortest path tunnel, and will consume each one super NHLFE but they are pointing to a single NHLFE, or set of NHLFEs when ECMP exists for the first strict/loose hop, of the first hop SR tunnel.
    Also, the ingress LER does not need to program a separate backup super NHLFE. Instead, the single super NHLFE will automatically begin forwarding packets over the LFA backup path of the SR tunnel to the first hop as soon as it is activated.
  2. There is an exception to the above model in the case when the user configured an empty path SR-TE LSP which uses the router’s hop-to-label translation. In that case, the SR-TE LSP will use the NHLFE of the node SID of the destination router. The super NHLFE is null in this case.
  3. If the first segment is a node SID tunnel and multiple next-hops exist, then ECMP spraying is supported at the ingress LER.
  4. If the first hop SR tunnel, node or adjacency SID, goes down the SR module informs MPLS that outer tunnel down and MPLS brings the SR-TE LSP down and requests SR to delete the SR-TE LSP in IOM.

The data path behavior at LSR and egress LER for an SR-TE LSP is similar to that of shortest path tunnel because there is no tunnel state in these nodes. The forwarding of the packet is based on processing the incoming label stack consisting of a node SID and/or adjacency SID label. If the ILM is for a node SID and multiple next-hops exist, then ECMP spraying is supported at the LSR.

The link-protect LFA backup next-hop for an adjacency SID can be programmed at the ingress LER and LSR nodes (as explained in SR-TE LSP Protection).

A maximum of 12 labels, including all transport, service, hash, and OAM labels, can be pushed. The label stack size for the SR-TE LSP can be 1 to 11 labels, with a default value of 6.

The maximum value of 11 is obtained for an SR-TE LSP whose path is not protected via FRR backup and with no entropy or hash label feature enabled when such an LSP is used as a shortcut for an IGP IPv4/IPv6 prefix or as a shortcut for BGP IPv4/IPv6. In this case, the IPv6 prefix requires pushing the IPv6 explicit-null label at the bottom of the stack. This leaves 11 labels for the SR-TE LSP.

The default value of 6 is obtained in the worst cases, such as forwarding a vprn-ping packet for an inter-AS VPN-IP prefix in Option C:

6 SR-TE labels + 1 remote LFA SR label + BGP 3107 label + ELI (RFC 6790) + EL (entropy label) + service label + OAM Router Alert label = 12 labels.

The label stack size manipulation includes the following LER and LSR roles:

LER role:

  1. Push up to 12 labels.
  2. Pop up to 8 labels of which 4 labels can be transport labels

LSR role:

  1. Pop up to 5 labels and swap one label for a total of 6 labels
  2. LSR hash of a packet with up to 16 labels

An example of the label stack pushed by the ingress LER and by a LSR acting as a PLR is illustrated in Figure 37.

Figure 37:  SR-TE LSP Label Stack Programming

On node A, the user configures an SR-TE LSP to node D with a list of explicit strict hops mapping to the adjacency SID of links: A-B, B-C, and C-D.

Ingress LER A programs a super NHLFE consisting of the label for the adjacency over link C-D and points it to the already-programmed NHLFE of the SR tunnel of its local adjacency over link A-B. The latter NHLFE has the top label and also the outgoing interface to send the packet to.

Note:

SR-TE LSP does not consume a separate backup super NHLFE; it only points the single super NHLFE to the NHLFE of the SR shortest path tunnel it is riding. When the latter activates its backup NHLFE, the SR-TE LSP will automatically forward over it.

LSR Node B already programmed the primary NHLFE for the adjacency SID over link C-D and has the ILM with label 1001 point to it. In addition, node B will pre-program the link-protect LFA backup next-hop for link B-C and point the same ILM to it.

Note:

There is no super NHLFE at node B as it only deals with the programming of the ILM and primary/backup NHLFE of its adjacency SIDs and its local and remote node SIDs.

VPRN service in node A forwards a packet to the VPN-IPv4 prefix X advertised by BGP peer D. Figure 37 shows the resulting data path at each node for the primary path and for the FRR backup path at LSR B.

2.7.9.1. SR-TE LSP Metric and MTU Settings

The MPLS module assigns a TE-LSP the maximum LSP metric value of 16777215 when the local router provides the hop-to-label translation for its path. For a TE-LSP that uses PCE for path computation (pce-computation option enabled) by PCE and/or which has its control delegated to PCE (pce-control enabled), the latter will return the computed LSP IGP or TE metric in the PCReq and PCUpd messages. In both cases, the user can override the returned value by configuring an admin metric using the command config>router>mpls>lsp>metric.

  1. The MTU setting of a SR-TE LSP is derived from the MTU of the outgoing SR shortest path tunnel it is riding, adjusted with the size of the super NHLFE label stack size.
    The following are the details of this calculation:
    SR_Tunnel_MTU = MIN {Cfg_SR_MTU, IGP_Tunnel_MTU- (1+ frr-overhead)*4}
    Where:
    1. Cfg_SR_MTU is the MTU configured by the user for all SR tunnels within a given IGP instance using config>router>ospf/isis>segment-routing>tunnel-mtu. If no value was configured by the user, the SR tunnel MTU is fully determined by the IGP interface calculation (explained below).
    2. IGP_Tunnel_MTU is the minimum of the IS-IS or OSPF interface MTU among all the ECMP paths or among the primary and LFA backup paths of this SR tunnel.
    3. frr-overhead is set to 1 if segment-routing and remote-lfa options are enabled in the IGP instance; otherwise, it is set to 0.
    This calculation is performed by IGP and passed to the SR module each time it changes due to an updated resolution of the node SID.
    SR OS also provides the MTU for adjacency SID tunnel because it is needed in a SR-TE LSP if the first hop in the ERO is an adjacency SID. In that case, this calculation for SR_Tunnel_MTU, initially introduced for a node SID tunnel, is applied to get the MTU of the adjacency SID tunnel.
  2. The MTU of the SR-TE LSP is derived as follows:
    SRTE_LSP_MTU= SR_Tunnel_MTU- numLabels*4
    Where:
    1. SR_Tunnel_MTU is the MTU SR tunnel shortest path the SR-TE LSP is riding. The formula is as given above.
    2. numLabels is the number of labels found in the super NHLFE of the SR-TE LSP. Note that at LER, the super NHLFE is pointing to the SR tunnel NHLFE, which itself has a primary and a backup NHLFEs.
    This calculation is performed by the SR module and is updated each time the SR-TE LSP path changes or the SR tunnel it is riding is updated.
    Note:

    For the purpose of fragmentation of IP packets forwarded in GRT or in a VPRN over a SR-TE LSP, the IOM always deducts the worst case MTU (12 labels) from the outgoing interface MTU for the decision to fragment or not the packet. In this case, the above formula is not used.

2.7.9.2. Hash Label and Entropy Label Support

When the hash-label option is enabled in a service context, hash label is always inserted at the bottom of the stack as per RFC 6391.

The LSR adds the capability to hash up to a maximum of 16 labels in a stack. The LSR is able to hash on the IP headers when the payload below the label stack is IPv4 or IPv6, including when a MAC header precedes it (ethencap-ip option).

The Entropy Label (EL) feature, as specified in RFC 6790, is introduced for RSVP, LDP, and BGP transport tunnels. It uses the Entropy Label Indicator (ELI) to indicate the presence of the entropy label in the label stack. The ELI, followed by the actual entropy label, is inserted immediately below the transport label for which entropy label feature is enabled. If multiple transport tunnels have the entropy label feature enabled, the ELI/EL is inserted below the lowest transport label in the stack.

The Entropy Label feature is supported with an SR-TE LSP. The LSR parses the label stack and detects the ELI.

The LSR hashing operates as follows.

  1. If the lbl-only hashing option is enabled, or if one of the other LSR hashing options is enabled but an IPv4 or IPv6 header is not detected below the bottom of the label stack, the LSR hashes on the EL only.
  2. If the lbl-ip option is enabled, the LSR hashes on the EL and the IP headers.
  3. If the ip-only or eth-encap-ip is enabled, the LSR hashes on the IP headers only.

See the MPLS Entropy Label and Hash Label section for more information about the hash label and Entropy Label features.

2.7.10. SR-TE Auto-LSP

The SR-TE auto-LSP feature allows the auto-creation of an SR-TE mesh LSP and for an SR-TE one-hop LSP.

The SR-TE mesh LSP feature specifically binds an LSP template of a new type, mesh-p2p-srte, with one more prefix list. When the TE database discovers a router, which has a router ID matching an entry in the prefix list, it triggers MPLS to instantiate an SR-TE LSP to that router using the LSP parameters in the LSP template.

The SR-TE on-hop LSP feature specifically activates an LSP template of a new type, one-hop-p2p-srte. In this case, the TE database keeps track of each TE link which comes up to a directly connected IGP neighbor. It then instructs MPLS to instantiate an SR-TE LSP with the following parameters:

  1. the source address of the local router
  2. an outgoing interface matching the interface index of the TE-link
  3. a destination address matching the router-id of the neighbor on the TE link

In both types of SR-TE auto-LSP, the router’s hop-to-label translation computes the label stack required to instantiate the LSP.

Note:

An SR-TE auto-LSP can be reported to a PCE but cannot be delegated or have its paths computed by PCE.

2.7.10.1. Feature Configuration

This feature introduces two new LSP template types: one-hop-p2p-srte and mesh-p2p-srte. The configuration for these commands is the same as that of the RSVP-TE auto-lsp of type one-hop-p2p and mesh-p2p respectively.

The user first creates an LSP template of the one of the following two new types:

  1. config>router>mpls>lsp-template template-name mesh-p2p-srte
  2. config>router>mpls>lsp-template template-name one-hop-p2p-srte

In the template, the user configures the common LSP and path level parameters or options shared by all LSPs using this template.

These new types of LSP templates contain the SR-TE LSP-specific commands as well as all other LSP or path commands common to RSVP-TE LSP and SR-TE LSP, and which are supported by the existing RSVP-TE LSP template.

Next, the user either binds the LSP template of type mesh-p2p-srte with one or more prefix lists using the config>router>mpls>lsp-template template-name policy peer-prefix-policy1 [peer-prefix-policy2] command, or binds the LSP template of type one-hop-p2p-srte with the one-hop option using the config>router>mpls>lsp-template template-name one-hop command.

See Configuring and Operating SR-TE for an example configuration of the SR-TE auto-LSP creation using an LSP template of type mesh-p2p-srte.

2.7.10.2. Automatic Creation of an SR-TE Mesh LSP

This feature behaves the same way as the RSVP-TE auto-LSP using an LSP template of type mesh-p2p.

The auto-lsp command binds an LSP template of type mesh-p2p-srte with one or more prefix lists. When the TE database discovers a router that has a router ID matching an entry in the prefix list, it triggers MPLS to instantiate an SR-TE LSP to that router using the LSP parameters in the LSP template.

The prefix match can be exact or longest. Prefixes in the prefix list that do not correspond to a router ID of a destination node will never match.

The path of the LSP is that of the default path name specified in the LSP template. The hop-to-label translation tool determines the node SID and adjacency SID corresponding to each loose and strict hop in the default path definition respectively.

The LSP has an auto-generated name using the following structure:

TemplateName-DestIpv4Address-TunnelId

where:

  1. TemplateName = the name of the template
  2. DestIpv4Address = the address of the destination of the auto-created LSP
  3. TunnelId = the TTM tunnel ID

In SR OS, an SR-TE LSP uses three different identifiers:

  1. LSP Index is used for indexing the LSP in the MIB table shared with RSVP-TE LSP. Range:
    1. provisioned SR-TE LSP: 65536 to 81920
    2. SR-TE auto-LSP: 81921 to 131070
  2. LSP Tunnel Id is used in the interaction with PCC/PCE. Range: 1 to 65536
  3. TTM Tunnel Id is the tunnel-ID service, shortcut, and steering applications use to bind to the LSP. Range: 655362 to 720897

The path name is that of the default path specified in the LSP template.

Note:

This feature is limited to SR-TE LSP, that is controlled by the router (PCC-controlled) and which the path is provided using the hop-to-label translation tool.

2.7.10.3. Automatic Creation of an SR-TE One-Hop LSP

This feature like the RSVP-TE auto-LSP using an LSP template of one-hop-p2p type. Although the provisioning model and CLI syntax differ from that of a mesh LSP by the absence of a prefix list, the actual behavior is quite different. When the one-hop-p2p command is executed, the TE database keeps track of each TE link that comes up to a directly connected IGP neighbor. It then instructs MPLS to instantiate an SR-TE LSP with the following parameters:

  1. the source address of the local router
  2. an outgoing interface matching the interface index of the TE link
  3. a destination address matching the router ID of the neighbor on the TE link

In this case, the hop-to-label translation returns the SID for the adjacency to the remote address of the neighbor on this link. Therefore, the auto-lsp command binding an LSP template of type one-hop-p2p-srte with the one-hop option results in one SR-TE LSP instantiated to the IGP neighbor for each adjacency over any interface.

Because the local router installs the adjacency SID to a link independent of whether the neighbor is SR-capable, the hop-to-label translation finds the adjacency SID and a one-hop SR-TE LSP can still come up to such a neighbor. However, remote LFA using the neighbor’s node SID will not protect the adjacency SID and so, will also not protect the one-hop SR-TE LSP because the node SID is not advertised by the neighbor.

The LSP has an auto-generated name using the following structure:

TemplateName-DestIpv4Address-TunnelId

where:

  1. TemplateName = the name of the template
  2. DestIpv4Address = the address of the destination of the auto-created LSP
  3. TunnelId = the TTM tunnel ID.

The path name is that of the default path specified in the LSP template.

Note:

This feature is limited to an SR-TE LSP that is controlled by the router (PCC-controlled) and for which labels for the path are provided by the hop-to-label translation tool.

2.7.10.4. Interaction with PCEP

A template-based SR-TE auto-LSP can only be operated as a PCC-controlled LSP. It can, however, be reported to the PCE using the pce-report command. It cannot be operated as a PCE-computed or PCE-controlled LSP. This is the same interaction with PCEP as that of a template-based RSVP-TE LSP.

2.7.10.5. Forwarding Contexts Supported with SR-TE Auto-LSP

The following are the forwarding contexts that can be used by an auto-LSP:

  1. resolution of IPv4 BGP label routes and IPv6 BGP label routes (6PE) in TTM
  2. resolution of IPv4 BGP route in TTM (BGP shortcut)
  3. resolution of IPv4 static route to indirect next-hop in TTM
  4. VPRN and BGP-EVPN auto-bind for both IPv4 and IPv6 prefixes

The auto-LSP is, however, not available to be used in a provisioned SDP for explicit binding by services. Therefore, an auto-LSP can also not be used directly for auto-binding of a PW template with the use-provisioned-sdp option in BGP-AD VPLS or FEC129 VLL service. However, an auto-binding of a PW template to an LDP LSP, which is then tunneled over an SR-TE auto-LSP is supported.

2.8. MPLS Service Usage

Nokia routers enable service providers to deliver VPNs and Internet access using Generic Routing Encapsulation (GRE) and/or MPLS tunnels, with Ethernet interfaces and/or SONET/SDH (on the 7750 SR and 7450 ESS) interfaces.

2.8.1. Service Distribution Paths

A service distribution path (SDP) acts as a logical way of directing traffic from one router to another through a uni-directional (one-way) service tunnel. The SDP terminates at the far-end router which directs packets to the correct service egress service access point (SAP) on that device. All services mapped to an SDP use the same transport encapsulation type defined for the SDP (either GRE or MPLS).

For information about service transport tunnels, refer to the Service Distribution Paths (SDPs) section in the 7450 ESS, 7750 SR, 7950 XRS, and VSR Services Overview Guide. They can support up to eight forwarding classes and can be used by multiple services. Multiple LSPs with the same destination can be used to load-balance traffic.

2.9. MPLS/RSVP Configuration Process Overview

Figure 38 displays the process to configure MPLS and RSVP parameters.

Figure 38:  MPLS and RSVP Configuration and Implementation Flow

2.10. Configuration Notes

This section describes MPLS and RSVP caveats.

  1. Interfaces must already be configured in the config>router>interface context before they can be specified in MPLS and RSVP.
  2. A router interface must be specified in the config>router>mpls context in order to apply it or modify parameters in the config>router>rsvp context.
  3. A system interface must be configured and specified in the config>router>mpls context.
  4. Paths must be created before they can be applied to an LSP.
