10. Shared-Queue QoS Policies

10.1. Overview

Shared-queue QoS policies can be implemented to facilitate queue consumption on the router. It is especially useful when VPLS, IES, and VPRN services are scaled to very high numbers. Instead of allocating multiple hardware queues for each unicast queue defined in a SAP ingress QoS policy, SAPs with the shared-queuing feature enabled only allocate one hardware queue for each SAP ingress QoS policy unicast queue.

However, as a trade-off, the total amount of traffic throughput at the ingress of the node is reduced because any ingress packet serviced by a shared-queuing SAP is recirculated for further processing. Shared-queuing can add latency. Network planners should consider these restrictions while trying to scale services on the router.

10.2. Multipoint Shared Queuing

Multipoint shared queuing is supported to minimize the number of multipoint queues created for ingress VPLS, IES, or VPRN SAPs or ingress subscriber SLA profiles. Normally, ingress multipoint packets are handled by multipoint queues created for each SAP or subscriber SLA profile instance. In some instances, the number of SAPs or SLA profile instances are sufficient for the in-use multipoint queues to represent many thousands of queues on an ingress forwarding plane. If multipoint shared queuing is enabled for the SAPs or SLA profile instances on the forwarding plane, the multipoint queues are not created. Instead, the ingress multipoint packets are handled by the unicast queue mapped to the forwarding class of the multipoint packet.

Functionally, multipoint shared queuing is a superset of shared queuing. With shared queuing on a SAP or SLA profile instance, only unicast packets are processed twice: once for the initial service-level queuing and a second time for switch fabric destination queuing. Shared queuing does not affect multipoint packet handling. Multipoint packet handling in normal (service queuing) is the same as shared queuing. When multipoint shared queuing is enabled, shared queuing for unicast packets is automatically enabled.

10.2.1. Ingress Queuing Modes of Operation

Three modes of ingress SAP queuing are supported for multipoint services (IES, VPLS, and VPRN): service, shared, and multipoint shared. The same ingress queuing options are available for IES and VPLS subscriber SLA profile instance queuing.

10.2.2. Ingress Service Queuing

Normal or service queuing is the default mode of operation for SAP ingress queuing. Service queuing preserves ingress forwarding bandwidth by allowing a service queue defined in an ingress SAP QoS policy to be represented by a group of hardware queues. A hardware queue is created for each switch fabric destination to which the logical service queue must forward packets. For a VPLS SAP with two ingress unicast service queues, two hardware queues are used for each destination forwarding engine the VPLS SAP is forwarding to. If three switch fabric destinations are involved, six queues are allocated (2 unicast service queues multiplied by 3 destination forwarding complexes equals six hardware queues). Figure 35 shows unicast hardware queue expansion. Service multipoint queues in the ingress SAP QoS policy are not expanded to multiple hardware queues, each service multipoint queue defined on the SAP equates to a single hardware queue to the switch fabric.

When multiple hardware queues represent a single logical service queue, the system automatically monitors the offered load and forwarding rate of each hardware queue. Based on the monitored state of each hardware queue, the system imposes an individual CIR and PIR rate for each queue that provides an overall aggregate CIR and PIR reflective of what is provisioned on the service queue.

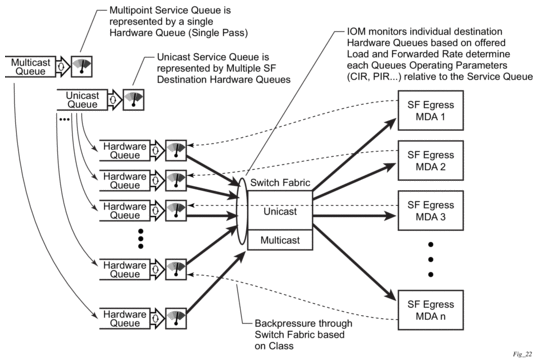

Figure 35:  Unicast Service Queue Mapping to Multiple Destination-Based Hardware Queues

10.2.2.1. Ingress Shared Queuing

To avoid the hardware queue expansion issues associated with normal service-based queuing, the system allows an ingress logical service queue to map to a single hardware queue when shared queuing is enabled. Shared queuing uses two passes through the ingress forwarding plane to separate ingress per service queuing from the destination switch fabric queuing. In the case of shared queuing, ingress unicast service queues are created one-for-one relative to hardware queues. Each hardware queue representing a service queue is mapped to a special destination in the traffic manager that ‘forwards’ the packet back to the ingress forwarding plane, allowing a second pass through the traffic manager. In the second pass, the packet is placed into a ‘shared’ queue for the destination forwarding plane. The shared queues are used by all services configured for shared queuing.

When the first SAP or SLA profile instance is configured for shared queuing on an ingress forwarding plane, the system allocates eight hardware queues per available destination forwarding plane, one queue per forwarding class. Twenty-four hardware queues are also allocated for multipoint shared traffic, but that is discussed in the following section. The shared queue parameters that define the relative operation of the forwarding class queues are derived from the shared queue policy defined in the QoS CLI node. Figure 36 shows shared unicast queuing. SAP or SLA profile instance multipoint queuing is not affected by enabling shared queuing.

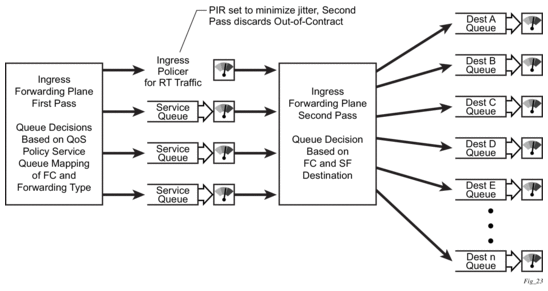

Figure 36:  Unicast Service Queuing With Shared Queuing Enabled

Multipoint queues are still created as defined in the ingress SAP QoS policy and ingress multipoint packets only traverse the ingress forwarding plane a single time, as shown in Figure 37.

Enabling shared queuing may affect ingress performance due to double packet processing through the service and shared queues.

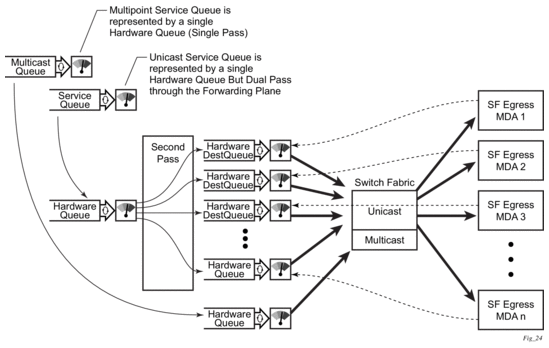

Figure 37:  Multipoint Queue Behavior with Shared Queuing Enabled

10.2.2.2. Ingress Multipoint Shared Queuing

Ingress multipoint shared queuing is a variation of the unicast shared queuing defined in Ingress Shared Queuing. With ingress multipoint shared queuing, ingress unicast service queues are mapped one-for-one with hardware queues and unicast packets traverse the ingress forwarding plane twice. In addition, the multipoint queues defined in the ingress SAP QoS policy are not created. Instead, multipoint packets (broadcast, multicast, and unknown unicast-destined) are treated to the same dual-pass ingress forwarding plane processing as unicast packets. In the first pass, the forwarding plane uses the unicast queue mappings for each forwarding plane. The second pass uses the multipoint shared queues to forward the packet to the switch fabric for special replication to all egress forwarding planes that need to process the packet.

The benefit of defining multipoint shared queuing is the savings of the multipoint queues per service. By using the unicast queues in the first pass, then the aggregate shared queues in the second pass, per service multipoint queues are not required. The predominant scenario where multipoint shared queuing may be required is with subscriber managed QoS environments using a subscriber per SAP model. Usually, ingress multipoint traffic is minimal per subscriber and the extra multipoint queues for each subscriber reduce the overall subscriber density on the ingress forwarding plane. Multipoint shared queuing eliminates the multipoint queues, sparing hardware queues for better subscriber density. Figure 38 shows multipoint shared queuing.

One caveat of enabling multipoint shared queuing is that multipoint packets are no longer managed per service (although the unicast forwarding queues may provide limited benefit in this area). Multipoint packets in a multipoint service (VPLS, IES, and VPRN) use significant resources in the system, consuming ingress forwarding plane multicast bandwidth and egress replication bandwidth. Usually, the per service unicast forwarding queues are not rate limited to a degree that allows adequate management of multipoint packets traversing them when multipoint shared queuing is enabled. It is possible to minimize the amount of aggregate multipoint bandwidth by setting restrictions on the multipoint queue parameters in the QoS nodes shared queue policy. Aggregate multipoint traffic can be managed per forwarding class for each of the three forwarding types (broadcast, multicast, or unknown unicast – broadcast and unknown unicast are only used by VPLS).

Another caveat for multipoint shared queuing is that multipoint traffic now consumes double the ingress forwarding plane bandwidth due to dual-pass ingress processing.

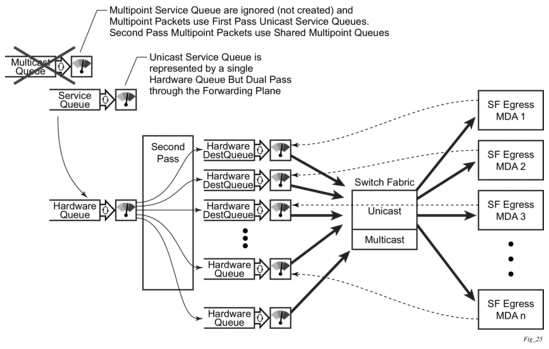

Figure 38:  Multipoint Shared Queuing Using First Pass Unicast Queues

Multipoint shared queuing cannot be enabled on the following services:

  1. Epipe
  2. Apipe (applies to the 7750 SR and 7950 XRS)
  3. Fpipe (applies to the 7750 SR and 7950 XRS)
  4. Ipipe
  5. Routed CO

For information about the tasks and commands necessary to access the CLI and to configure and maintain the router, refer to CLI Usage chapter in the 7450 ESS, 7750 SR, 7950 XRS, and VSR Basic System Configuration Guide.

10.3. Basic Configurations

The default shared queue QoS policy conforms to the following:

  1. There is only one default shared queue policy in the system.
  2. The default shared queue policy has fixed forwarding classes, queues, and FC-queue mapping, which cannot be modified, added, or deleted.

The only configurable entities in the default shared queue policy are the queue attributes, queue priority, and the description string. The queue priority for a shared queue can be changed to expedited, best-effort or auto-expedited.

10.3.1. Modifying the Default Shared-Queue Policy

The only configurable entities in the default shared queue policy are the queue attributes and the description string. The changes are applied immediately to all services where this policy is applied. Use the following CLI syntax to modify a shared-queue policy:

CLI Syntax:
config>qos#
shared-queue name
description description-string
queue queue-id [queue-type] [multipoint]
cbs percent
drop-tail low percent-reduction-from-mbs percent
mbs percent
rate percent [cir percent]

The following displays a shared-queue policy configuration example:

A:ALA-48>config>qos>shared-queue# info
----------------------------------------------
            description "test1"
            queue 1 create
                cbs 2
                drop-tail
                    low
                        percent-reduction-from-mbs 20
                    exit
                exit
            exit
----------------------------------------------
A:ALA-48>config>qos>shared-queue#

10.3.1.1. Applying Shared-Queue Policies

The default shared queue policy is applied at the SAP level just as sap-ingress and sap-egress QoS policies are specified. If the shared-queuing keyword is not specified in the qos policy-id command, then the SAP is assumed to use single-pass queuing.

Apply shared-queue policies to the following entities:

10.3.1.1.1. Epipe Services

Use the following CLI syntax to apply QoS policies to ingress Epipe SAPs:

CLI Syntax:
config>service>epipe service-id [customer customer-id]
sap sap-id
ingress
qos policy-id [shared-queuing]

The following output displays an Epipe service configuration with SAP ingress policy 100 applied to the SAP with shared-queuing enabled.

A:SR>config>service# info
----------------------------------------------
 epipe 6 customer 6 vpn 6 create
description "Distributed Epipe to west coast"
sap 1/1/10:0 create
ingress
qos 100 shared-queuing
exit
exit
no shutdown
 exit
----------------------------------------------
A:SR>config>service#

10.3.1.1.2. IES Services

Use the following CLI syntax to apply the default policy to an IES service:

CLI Syntax:
config>service# ies service-id
interface interface-name
sap sap-id
ingress
qos policy-id [shared-queuing |multipoint-shared]

The following output displays an IES service configuration with SAP ingress policy 100 applied to the SAP with shared-queuing enabled.

A:SR>config>service# info
----------------------------------------------
   ies 88 customer 8 vpn 88 create
    interface "Sector A" create
       sap 1/1/1.2.2 create
            ingress
                qos 100 multipoint-shared
            exit
       exit
    exit
   no shutdown
   exit
----------------------------------------------
A:SR>config>service#

10.3.1.1.3. VPLS Services

Use the following CLI syntax to apply the default shared-queue policy to an ingress VPLS SAP:

CLI Syntax:
config>service# vpls service-id [customer customer-id]
sap sap-id
ingress
qos policy-id [shared-queuing | multipoint-shared]

The following output displays a VPLS service configuration with SAP ingress policy 100 with shared-queuing enabled.

A:SR>config>service# info
----------------------------------------------
 vpls 700 customer 7 vpn 700 create
    description "test"
    sap 1/1/9:0 create
        ingress
            qos 100 multipoint-shared
        exit
    exit
 exit
----------------------------------------------
A:SR>config>service#

10.3.1.1.4. VPRN Services

Use the following CLI syntax to apply QoS policies to ingress VPRN SAPs on the 7750 SR and 7950 XRS:

CLI Syntax:
config>service# vprn service-id [customer customer-id]
interface ip-int-name
sap sap-id
ingress
qos policy-id [shared-queuing | multipoint-shared]

The following output displays a VPRN service configuration. The default SAP ingress policy was not modified but shared queuing was enabled.

A:SR7>config>service# info
----------------------------------------------
 vprn 1 customer 1 create
   interface "to-ce1" create
       address 192.168.0.0/24
       sap 1/1/10:1 create
           ingress
               qos 1 multipoint-shared
           exit
       exit
   exit
   no shutdown
 exit
----------------------------------------------
A:SR7>config>service#

10.3.2. Default Shared Queue Policy Values

The following shared queue policies are created by the system and cannot be deleted.

Table 95:    Default Shared Queue Policies

Policy-ID

Description

default

Default Shared Queue Policy

policer-output-queues

Default Policer Output Shared Queue Policy

egress-pbr-ingress-queues

Egress PBR Ingress Shared Queue Policy

Creating additional shared queue policies is not permitted.
